Integrate Fiber Optic Rotary Joint Slip Rings

• Current & Circuits: 24*10A; 105*2A; 30*IF Signal
• Rating Voltage: 0~380VAN/VDC
• Dielectric Strength: ≥1000VAC@50Hz; ≥300VAC@50Hz
• Insulation Resistance: 500MΩ@500VDC; 100MΩ@300VDC
• Electrical Noise: Max 10mΩ (50rpm)

Lead Wire Size:

• AWG16#20#(Soft Wire Teflon8 UL)
• Two-Core Twisted Shielded wire(AWG12#)
• RG 316/RG179
• Resistance Static Value: Max 100mΩ
• Work Torque: ≤3N*m
• Working speed: 0~50rpm
• Net Weight: 40Kgt 15%
• Contact Material: Precious Metal
• Housing Material: Aluminum alloy
• Rotation way: Flange installation
• Working Temperature: – 33°C~+80″C
• Working Humidity: 60%RH
• Protection(IP Grade): IP51

IF Parameters

• Frequency Range: DC-40MHz
• Insertion Loss: <0.7dB
• Insertion loss – WOW: <0.1dB
• VSWR: <1.3
• Isolation: >60dB
• Return Loss: >17dB
• Phase Deviation (different Channels): <1°
• Phase Deviation (same channels): <1.5°

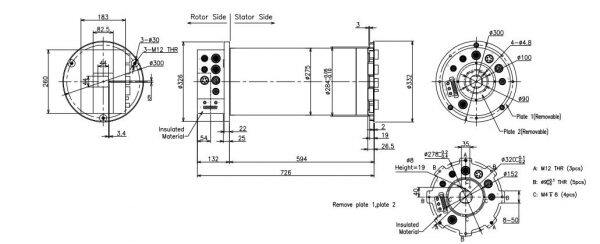

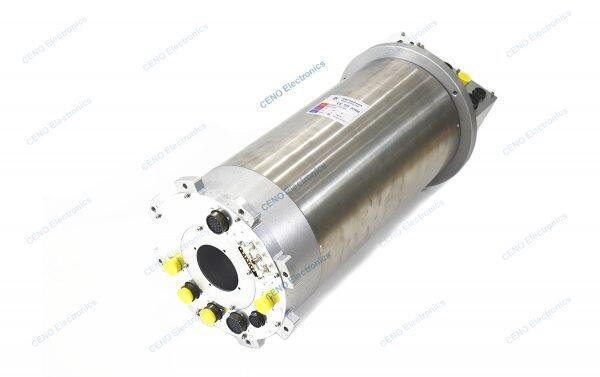

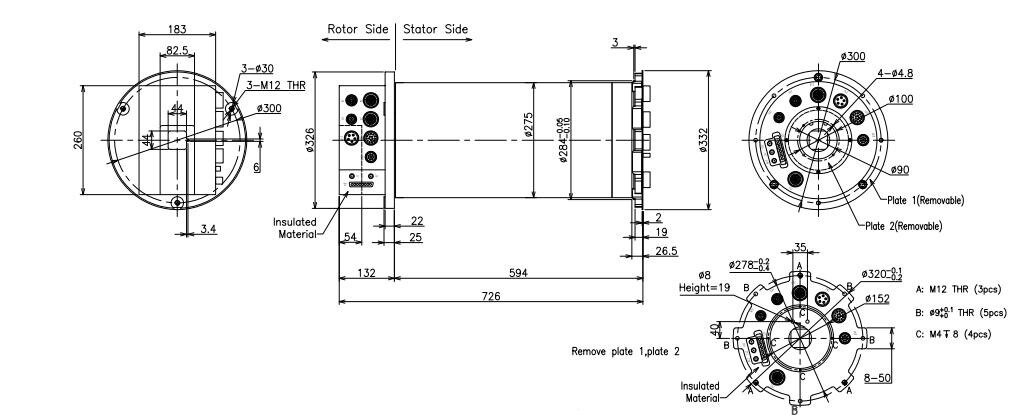

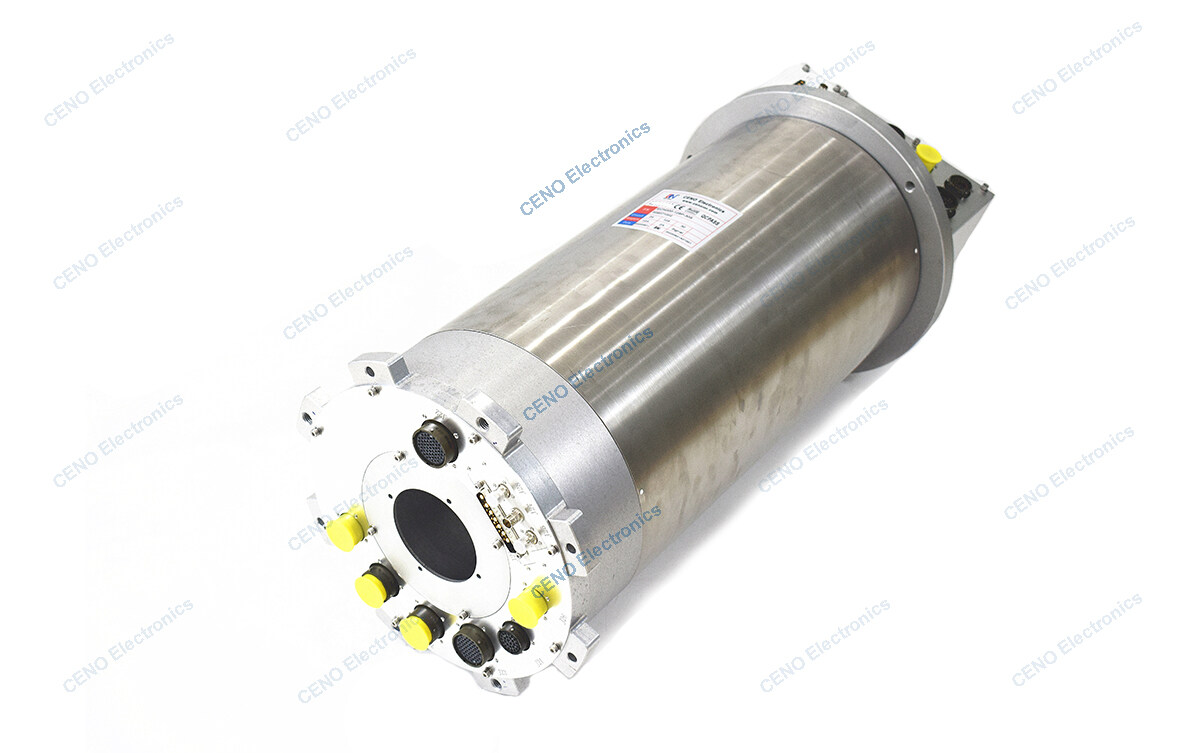

ECN000-128P-30S is a multi channel slip ring from CENO electrical company with 158 channels, there are 24 circuits of 10Amp, 105 circuits of 2Amp and 30 circuits of IF signals in this industry slip ring, and it’s large size slip ring too, the external diameter is 275mm and the length of the shell is 726mm. In CENO company Multi-channel slip ring is meaning the slip ring with more than 50 channels, the kind of multi-channel slip ring can reach more than 500 channels. It could integrate small or big current, analog signal, digital signal, radio frequency and fiber optic. This multi-channel slip ring gets long lifespan characteristic. Multi-channel slip ring produced by CENO has optional operating speed, even up to 2000rpm.
