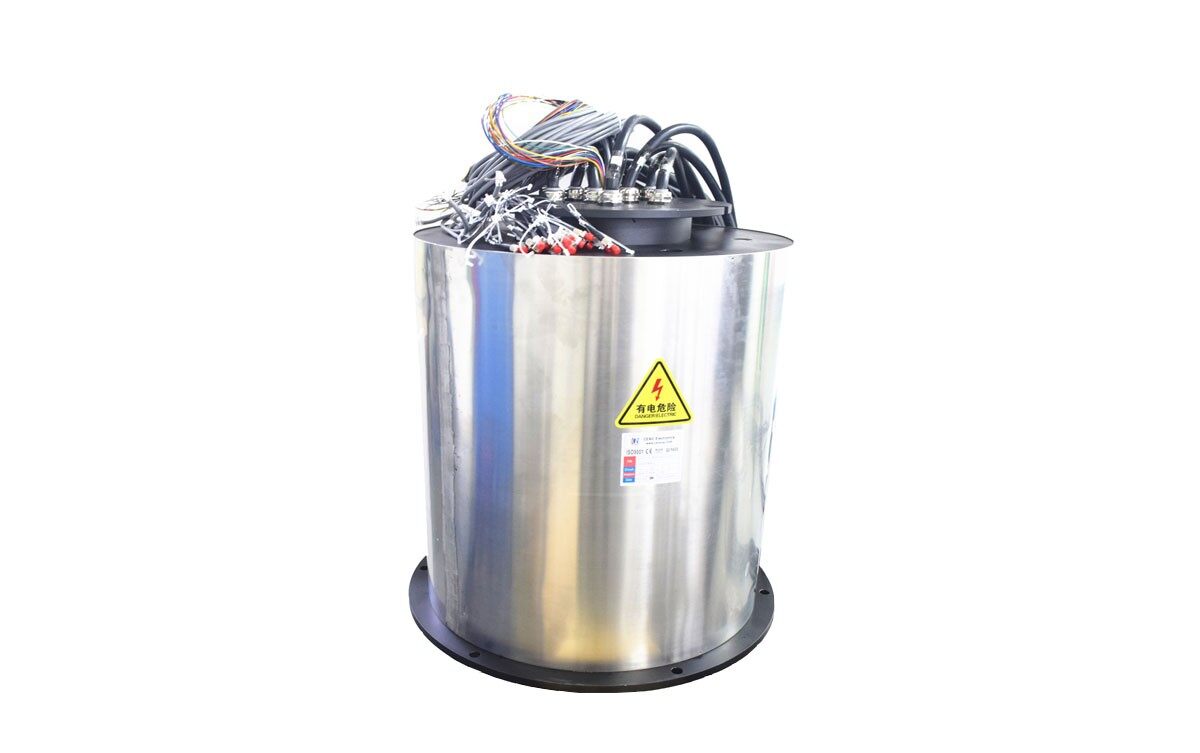

Integrate FORJs Carbon Brush Slip Ring

• Circuits & Current: 11x250A, 25x10A, 5xGigabit, 20xFiber optic
• Voltage: 0~380VAC
• Electrical noise: Max 30mΩ (50rpm)
• Dielectric strength: ≥1000V@50Hz; ≥300V@50Hz
• Insulation resistance: ≥500MΩ@300VDC; ≥100MΩ@300VDC
• Operating speed: 0-5 rpm
• Contact material: Precious metal, Carbon brush
• Housing material: Stainless steel, Aluminium alloy
• IP protection grade: IP51

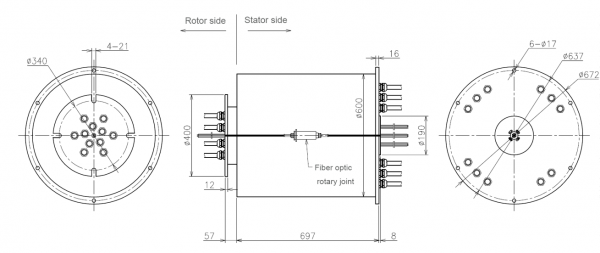

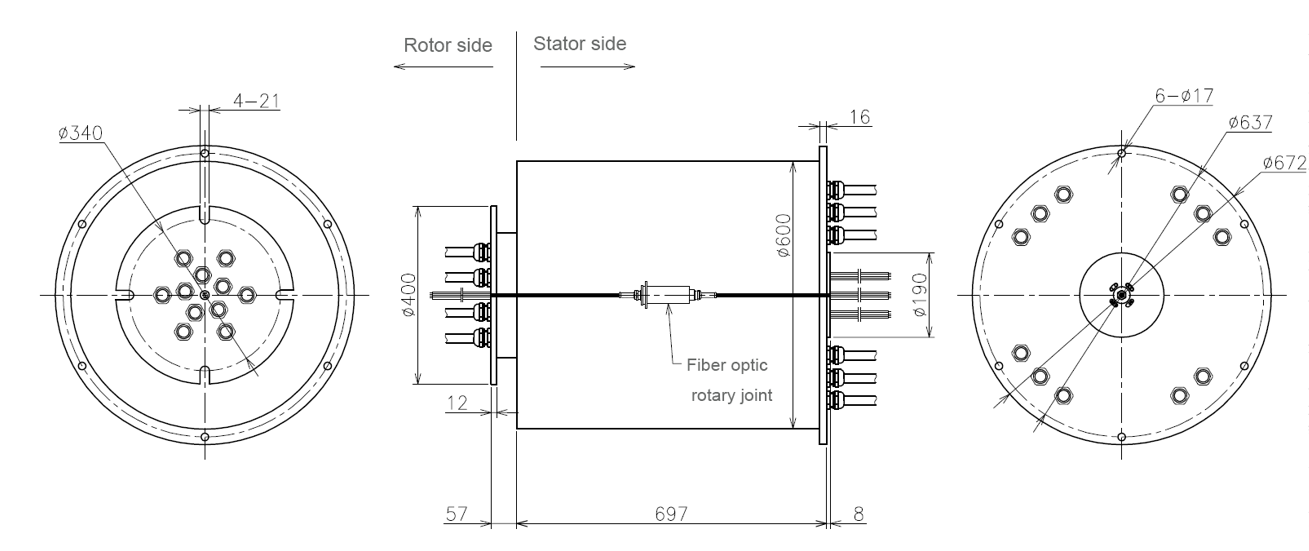

High current rating slip ring and multichannel fiber optic rotary joint are integrated in this model. It is designed as free maintenance type. In power channel, current rating up to 250A. Beside power channel, there are gigabit ethernet channel as well. The crosstalk between the high power channel and signal channel are totally avoid in slip ring. The fiber optic rotary channel number up to 20. All channels are single mode and with LC connector on both sides.
