Integrate FORJs Slip Ring

• Current & Circuits: 8*10A, 30*1A, 3*100Mbps
• Rating Voltage: 0~220 VAC/VDC
• Dielectric strength: ≥500VAC@50Hz
• Isolation resistance: ≥500MΩ@500VDC
• Electrical noise: ≤30mΩ (50rpm)

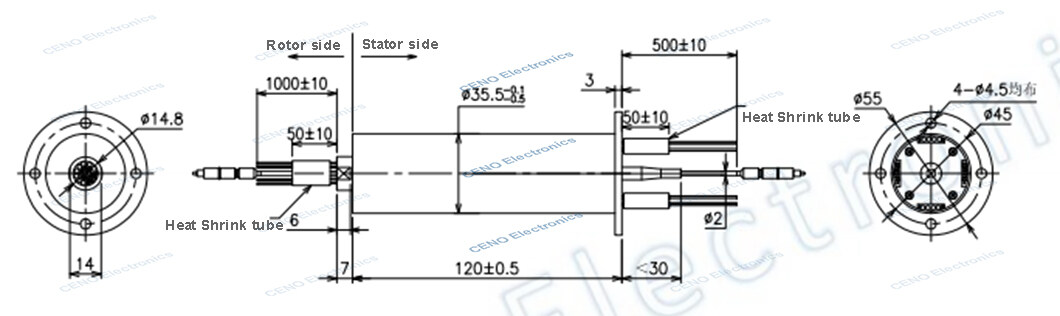

• Lead wire length: Rotor – 1000mm; Stator – 1000mm
• Operating speed: 0~100rpm
• Contact material: Precious metal
• Housing material: Aluminum alloy
• Working temperature: -40°C~+80°C
• Working humidity: 60%
• IP protection grade: IP51

FiberSpecification

• Fiber type: Single mode
• Wave length: 1310-1550nm
• Insert loss: <2.0dB
• Return loss: ≥30dB
• Insert loss deviation: ≤±0.5dB
• Contact type: SC

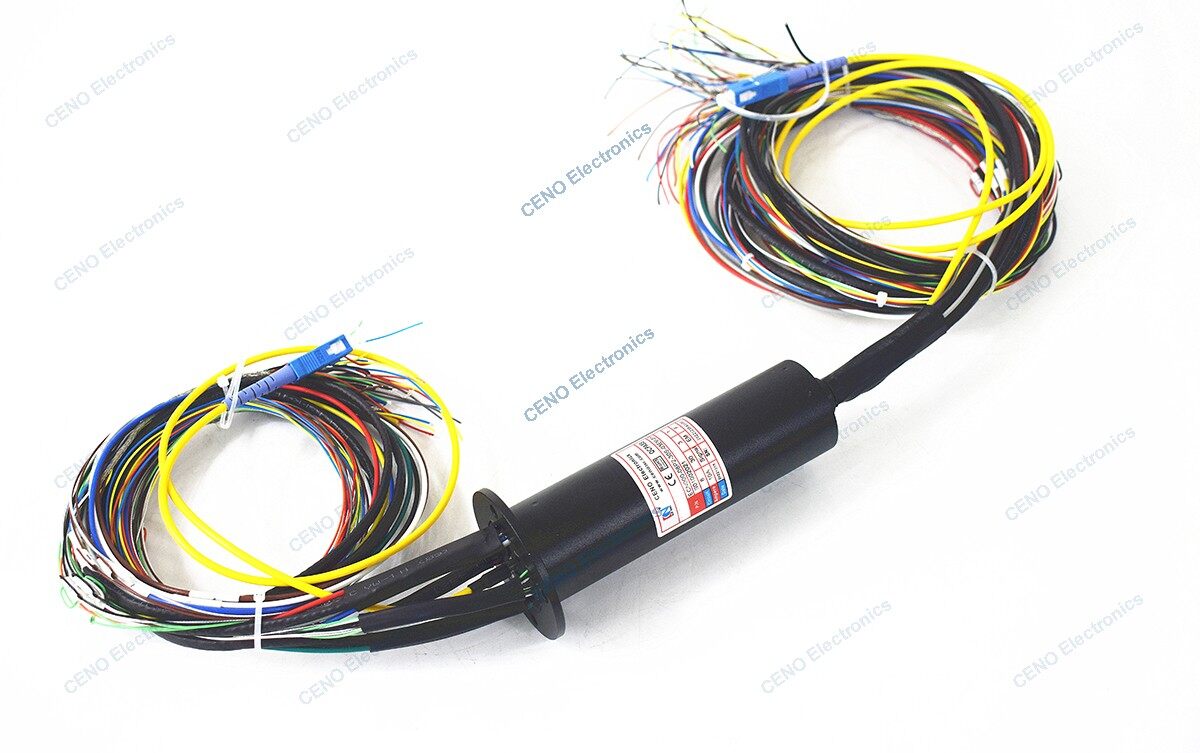

ECN000-08P2-30S-03EM-01F is an integrated slip ring combined power signal with fiber optical rotary joint. There are 8 circuits for 10A electrical power, 30 circuits for 1A signals, 3 group for Megabit Ethernet and 1 channel single mode fiber optical. Most of the Integrated slip ring are customize product for special application, so the fiber type, signal mode, wavelength, operation speed and signal types are optional. Due to integrated slip ring adopt the advantage non-contact technology, it is free from electromagnetic interference and long working life.
