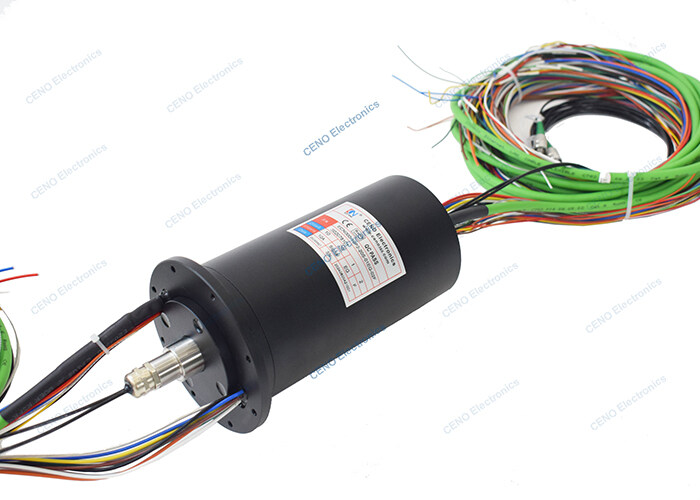

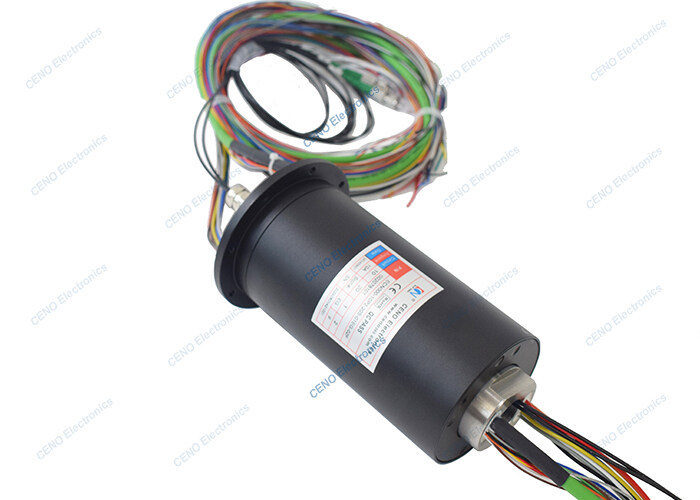

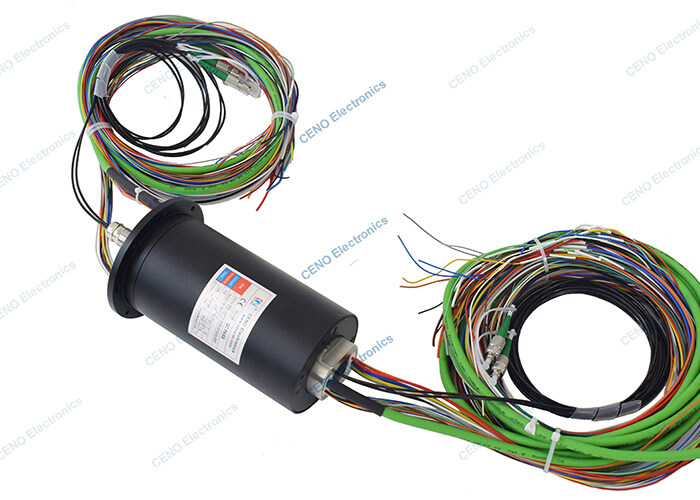

Integrate FORJs Slip Ring

• Fiber type: 2 Channels* SM
• Wave length: 1310/1550nm
• Insert loss: ≤ 3.0dB
• Return loss: ≥45dB
• Connect type: JFC / APC-2.0-S
• Current & Circuits: 10 circuits * 10A; 30 circuits * signal; 1 group * 1000M Ethernet
• Rating Voltage: 220VAC/VDC
• Electrical Noise: ≤ 30mΩ (50rpm)
• Operating speed: 0 ~ 200rpm
• IP Grade: IP65
• Working temperature: -30℃ ~ +60℃
• Working humidity: ≤ 90%
• Contact material: Precious Metal / Gold to Gold
• Housing material
• Aluminum Alloy + Stainless steel
• Service Life: 20 million Rotation

ECN000-10P2-20S-01EG-02F is CENO new integrate FORJs slip ring with 2 channels SM Fiber Type. CENO have designed and manufactured kinds of integrate slip rings, including pneumatic / hydraulic, Radio frequency, Encoder and FORJs etc, as different applications. Non-contact technology is the advantage of this series of fiber optic rotary joints, which makes it easier to achieve the long service life and high speed characteristics. For more information please contact us.
