Integrate FORJs Slip Rings

• Rings: 9*10A, 8*signal, 2*RS422, 1*Cat6e, 1*Fiber Optical
• Voltage: 0~240VAC/VDC
• Electrical noise: ≤30mΩ(50rpm)
• Dielectric strength: ≥1000V@50Hz(power); ≥500V@50Hz(signal)
• Insulation resistance: ≥500MΩ@500VDC(power); ≥100MΩ@100VDC(signal)
• Operating speed: 0-150 rpm
• Contact material: Gold to gold
• Housing material: Aluminium alloy
• IP protection grade: IP54

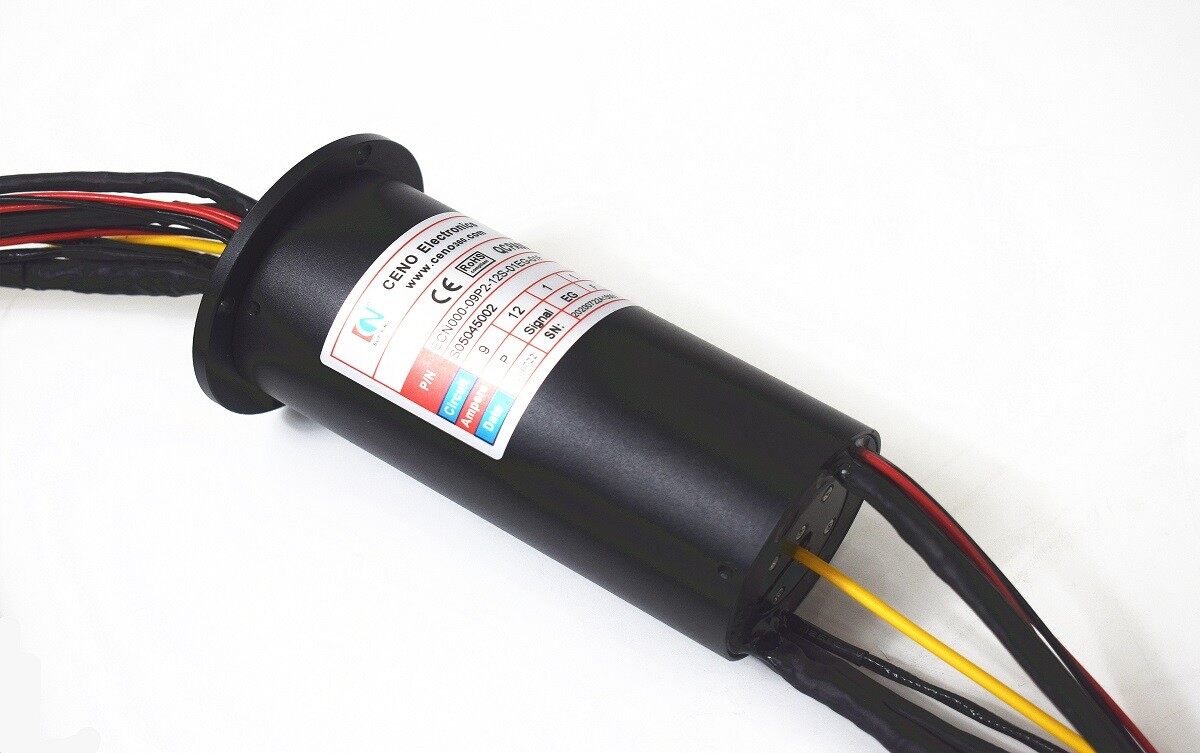

It’s a Multi-Channel slip ring with 9 *10A, 8*signal, 2*RS422,1*Cat6e & 1*Fiber Optical.Small size, light weight, convenient to integrate with power slip ring. Transmit signal via fiber optic, no disclose, no EMI, stable transmission. It’s apply to single mode, multi mode also can be achieved if customer needed. Contact materials is Gold-gold. Inner diameter can be customized from 3 mm to 980mm. Typical application including radar system, marine industrial equipment, medical equipment. The current is from mA to 5000 amps. The voltage can be up to 10000 volts, which can fully meet different needs of transmission.
