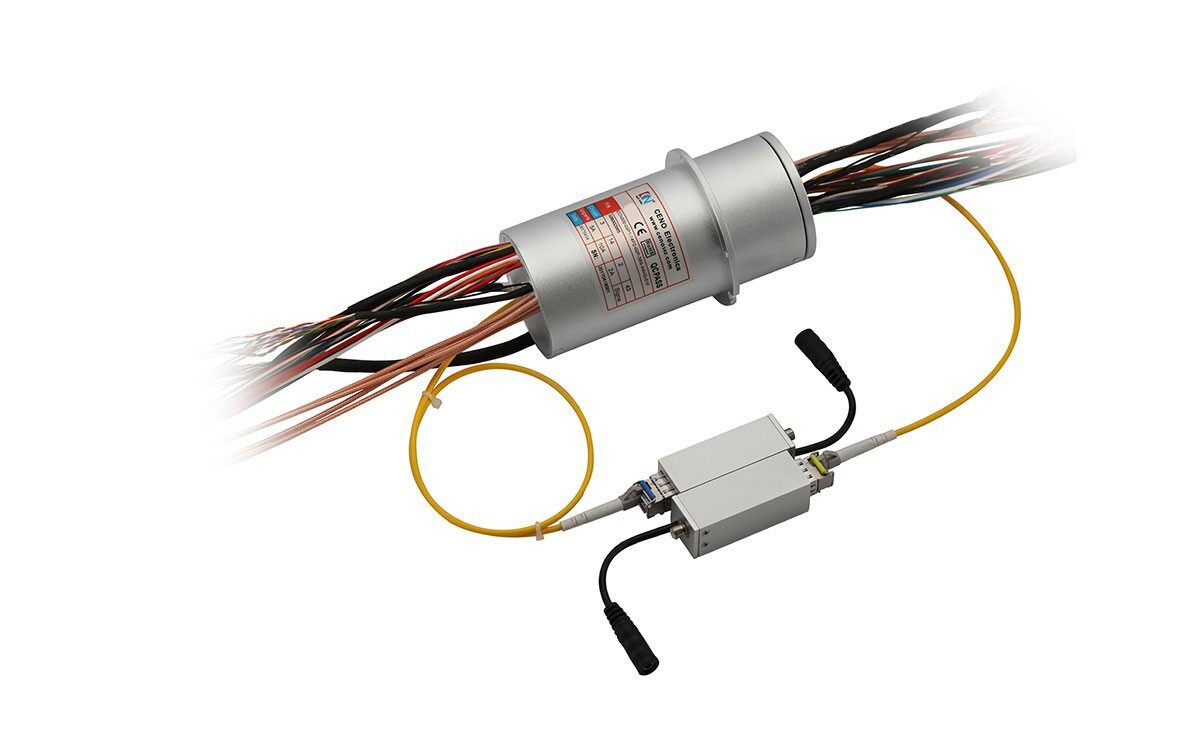

Integrate HDMI FORJs Slip Ring

• Circuits&Current: 14*10A, 3*5A, 2*2A, 38*signal, 4*video signal
• Rating voltage: 380VAC
• Electrical noise: ≤70mΩ(50rpm)
• Dielectric strength: ≥500VAC@50Hz; ≥300VAC@50Hz
• Insulation resistance: 500MΩ@300VDC; 100MΩ@300VDC
• Working temperature: -40℃~+80℃
• Protection grade: IP54
• Working speed: 0~300rpm
• Contact material: Gold to Gold

• Fiber type: SM(9/125um)
• Fiber channel: 1
• Power: 23dBm
• Insertion loss: <2.0dB

Fiber optic rotary joint could improve mechanical performance, simplify operation and avoid the data loss during rotating. It can also transmit signal via fiber optic no disclose no EMI, with high protection level up To IP65, small size light weight convenient to integrate power slip ring. Relying on CENO’s strong R&D ability and experienced engineering team, more and more fiber optic rotary joint model are coming out.
