Integrate Low temperature FORJs Slip Rings

• Circuits & Current: 2*20A, 2*10A, 2*5A, 2*4A, 3*7A, 25*signal, 2*land wire(2A), 1*Video signal
• Rating voltage: 380VAC
• Electrical noise: ≤70mΩ(50rpm)
• Dielectric strength: ≥500VAC@50Hz; ≥300VAC@50Hz
• Insulation resistance: 500MΩ@300VDC; 100MΩ@300VDC
• Working temperature: -40℃~+80℃
• Protection grade: IP54
• Working speed: 0~300rpm
• Contact material: Gold to Gold
• Fiber type: SM
• Fiber channel: 1
• Insertion loss,max:＜2dB
• Connector type: LC/LC

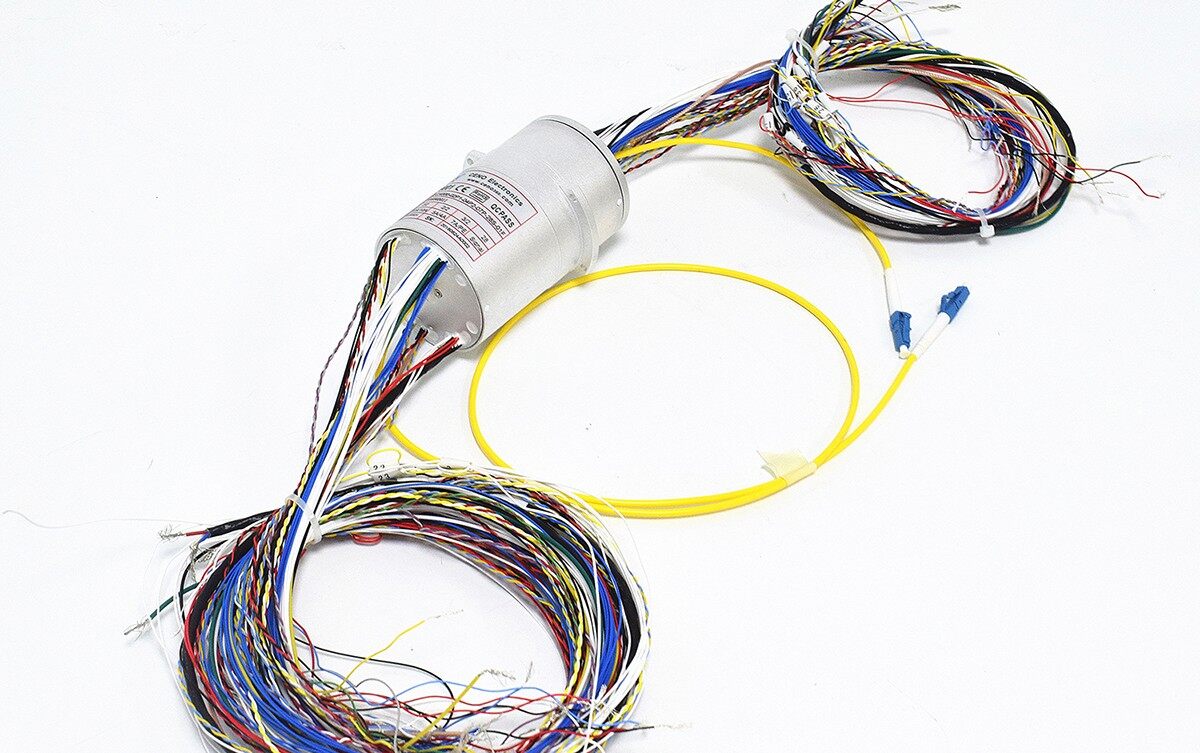

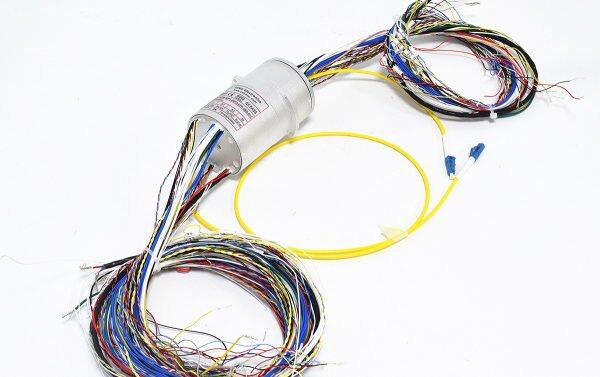

Fiber Optical Electric Slip Ring also called Fiber Optic Rotary Joint (FORJ). The FORJ is widely used in radar system, motion simulator, marine industrial equipment, naval vessel system. We engineer what you need. Our solutions are customized to meet the exact circuits, ratings, and design parameters required for your application.
