Integrate Pneumatic / Hydraulic Rotary Union

• Circuits & Current: 4 circuits * 2A; 3 circuits * 2A
• Rating Voltage: 0~415VAC/VDC
• Dielectric strength: ≥1000VAC@50Hz
• Isolation resistance: ≥100MΩ@100VDC
• Electrical Noise: Max 30mΩ (50rpm)
• Working temperature: -20°C~+60°C
• Working humidity: 60%RH
• IP protection grade: IP65
• Working Speed: 0~10 rpm
• Outer Diameter: Ø200mm
• Contact Material: Precious Metal
• Housing Material: Aluminum alloy + stainless steel
• Lead wire size: 3 cores / 4 cores shielded wire
• Lead wire length: Rotor side: 2000mm; Stator side: 2000mm
• Installation: Flange installation

Rotary Joints

• The road: 2 channel gas ( 2*input; 1*output )
• Interface size: G3/8”
• Pressure Max: 8 Bar
• Rotary Torque: ≤ 15N*m

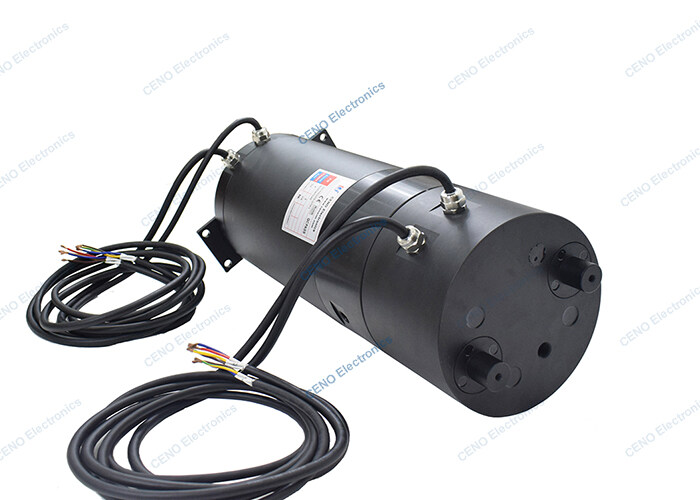

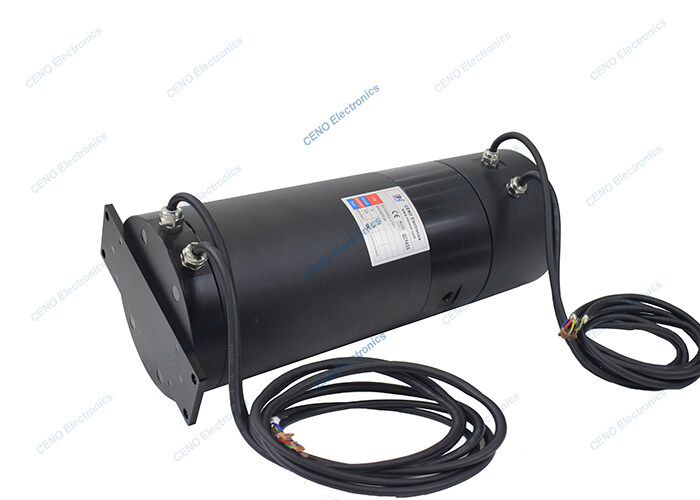

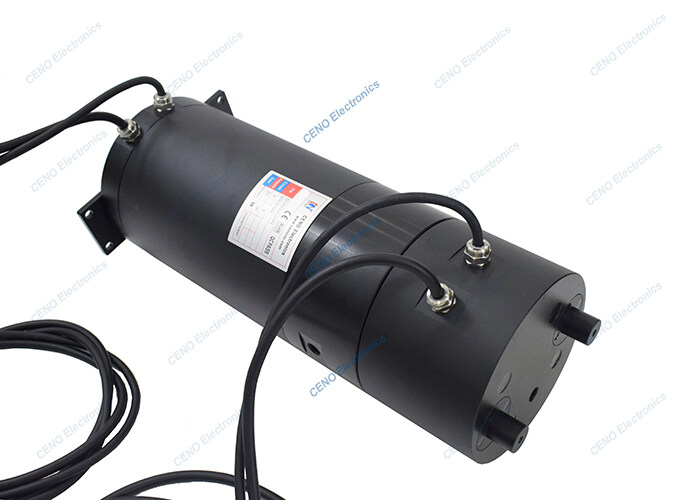

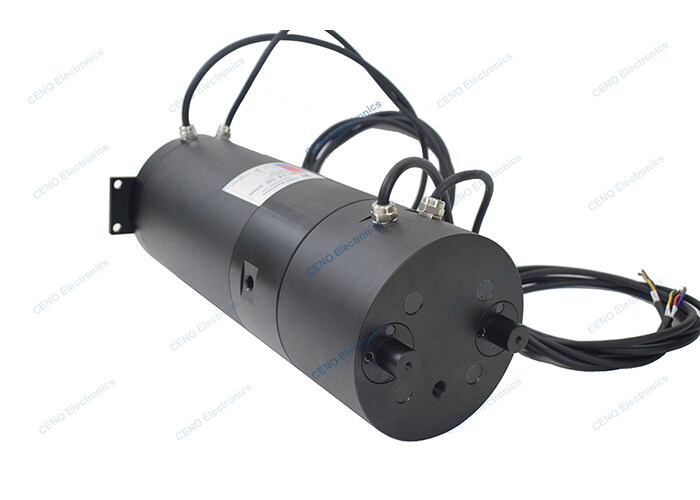

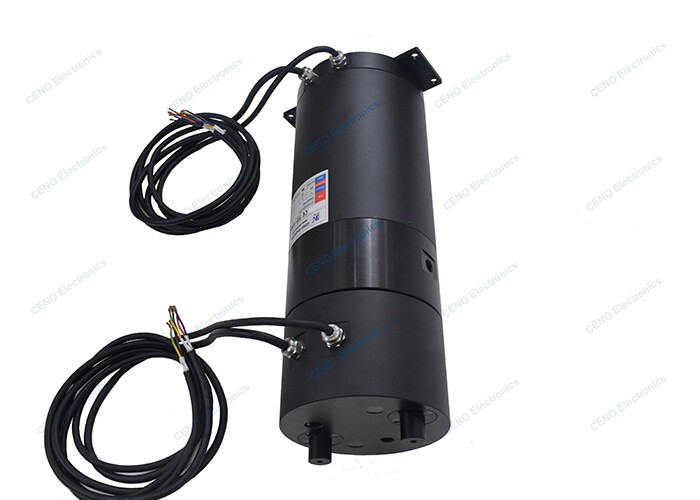

QCN0203-07P1 is CENO integrate pneumatic / hydraulic rotary union which combine 7 circuits 2A Electric signal and 2 channels gas with Max pressure 8Bar. Pneumatic – hydraulic integrate conductive slip ring can be divided into pneumatic conductive slip ring and hydraulic conductive slip ring according to the different transmission media. The working principle of pneumatic conductive slip ring is to transfer gas from the stator part to rotor device to complete the conductive transmission. More information please contact us
