Integrate Pneumatic Hydraulic Rotary Union

The road: 2 channels gas
Interface size: G3/8”
Pressure Max: 1.0MPa
Circuits & Current: 10 circuits * 10A; 2 group * Profinet Signal
Rating Voltage: 0~220VAC/VDC
Dielectric strength: ≥500VAC@50Hz
Isolation resistance: ≥300MΩ@100VDC
Electrical Noise: Max 30mΩ (50rpm)
Working temperature: -20°C~+80°C
Working humidity: 60%RH
IP grade: IP51
Working Speed: 0~50 rpm
Outer Diameter: Ø120mm
Contact Material: Precious Metal
Housing Material: Aluminum alloy;Lead wire size: 5 cores cable; 4 cores shielded wire
Lead wire length: Rotor side: 1000mm; Stator side: 1000mm
Installation: Flange installation

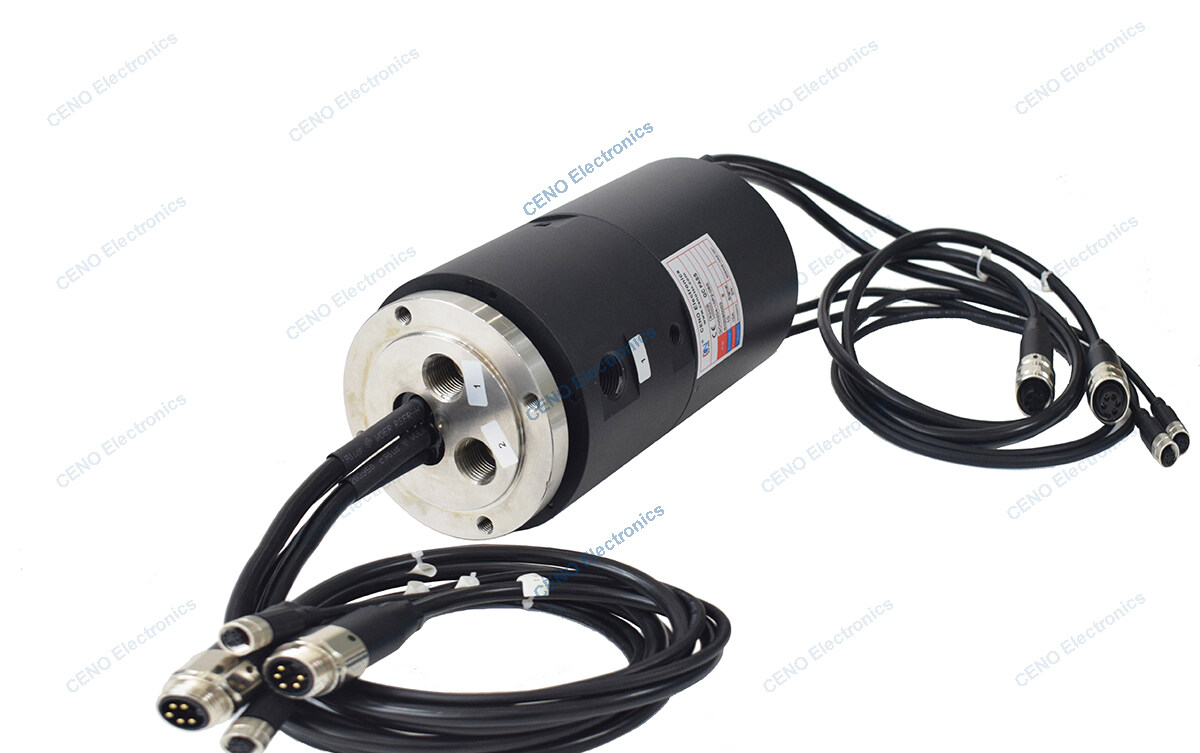

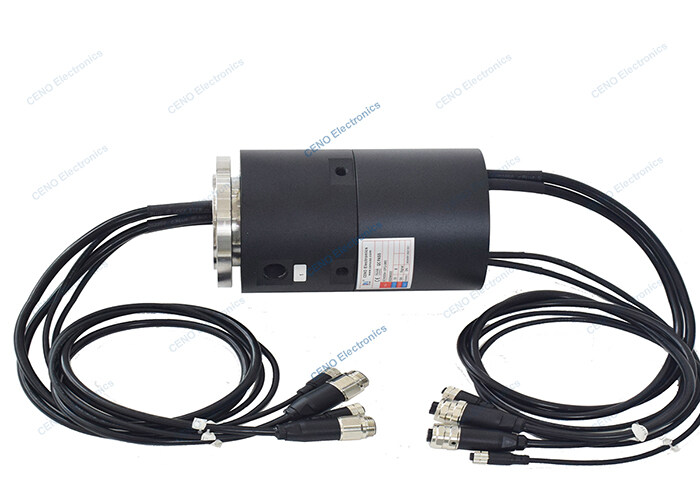

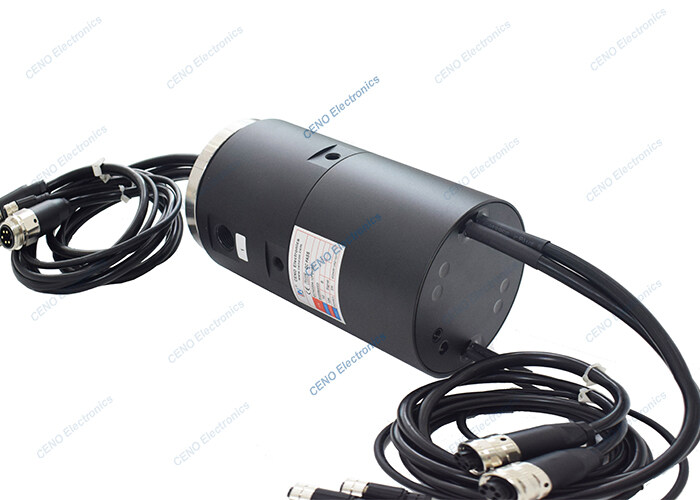

QCN0204-10P2-08S is CENO integrate slip ring which combined circuits electric power, profinet signal and 2 channels for gas. Electric slip ring and pneumatic / hydraulic rotary unions combined slip ring is designed for some special applications where require both electric signal and pneumatic or hydraulic transmission, transmission capability determines the quality of integrate pneumatic hydraulic rotary union. For more information please contact us.

Features

• Can integrate electric signal pneumatic hydraulic & data
• Channels can be to 16 & electric circuits be to hundreds
• Flange design & easy install

Applications

• Food procession
• Laser cutting machinery
• Chemical & pharmaceutical
• Filling machinery
• Medical equipment

Optional

• Channels, circuits & Voltage
• Gas or liquid medium
• Sealing method
• Boundary dimension
• Working speed
