Integrate Pneumatic/Hydraulic Rotary Unions

• Current & Circuits: 12*5A; 16*Signal; 1*1000M Ethernet
• Rating Voltage: 0~220 VAC/VDC
• Dielectric Strength: ≥1500VAC@50Hz; ≥ 300VAC@50Hz
• Isolation resistance: ≥500MΩ@500VDC; ≥100VAC@100VDC
• Resistance floatMax: 30mΩ@(150rpm)
• Lead wire size: AWG22# 24# Tin coated Teflon ®UL; CAT5e
• Lead wire length: Rotor – 5000mm; Stator – 5000mm
• Operating speed: 0~30rpm
• Contact material: Precious metal
• Housing material: Aluminum alloy + Stainless steel
• Working temperature: -20°C ~ +60°C
• Working humidity: <60%
• Protect grade: IP65
• Explosive – proof grade: Exd ǁ BT4 Gb IP65

Air parameter

• Channel: 1 group – Nitrogen; 1 group – air
• Interface size: G 3/8″ & Ø12 air pipe
• Pressure: 1.0MPa

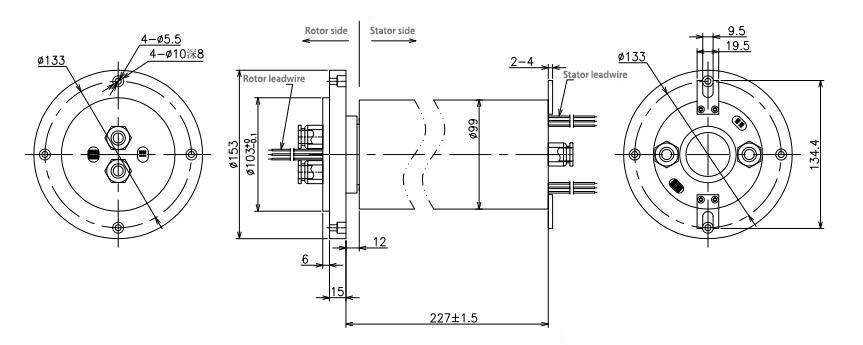

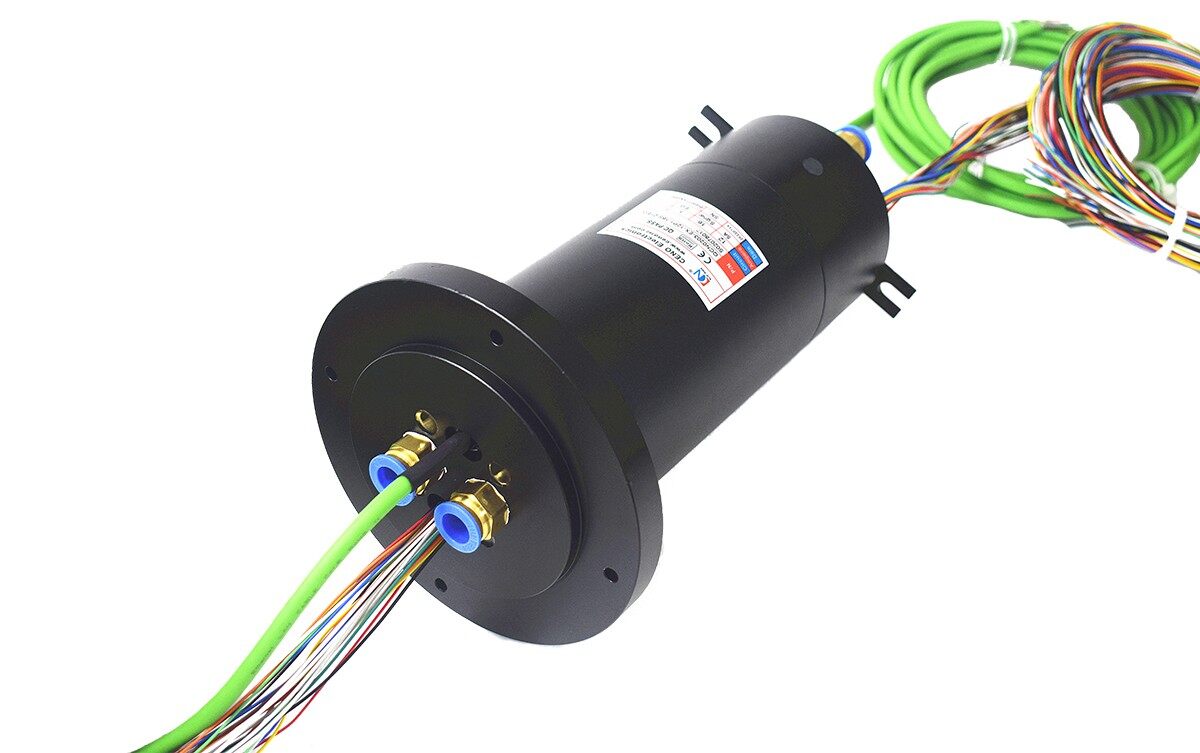

QCN0203-EX-12P1-16S-01EG is an integrated slip ring from CENO company. There are many type signals, such as 12 wires for 5A power, 16 circuits for signal, 1 group for 1000M Ethernet, 1 group for Nitrogen with interface size G 3/8″ and 1 group for air with pipe size Ø12mm combined in this slip ring. The protect and Explosive – proof grade is Exd ǁ BT4 Gb IP65.Mainly applied in Automation equipment, Chemical pharmacy, Machinery manufacturing, Food processing, Iron and steel metallurgy or Plastic fiber manufacturing.
