Integrate Pneumatic Rotary Union

• Current & Circuits: 50circuits*Signal
• Rating Voltage: 220 VAC/VDC
• Dielectric strength: ≥300VAC@50Hz
• Isolation resistance: ≥300MΩ@300VDC
• Contact resistance wave range: ≤30mΩ (50rpm)
• Contact material: Precious Metal
• Housing material: Aluminum Alloy
• Working temperature: -20°C~+60°C
• Working humidity: ≤60%RH
• Protection Grade: IP51
• Operating speed: 0~ 300 rpm
• Lead wire size: AWG20# Tin coated Teflon ® UL
• Lead wire length: Rotor – 3000mm; Stator – 3000mm
• External diameter: Ø99mm
• Installation: Rotor side fixed with Flange

Rotary Union

• Channels: 1 channel * air (connector RC1/2”; Ø12mm tube)
• Pressure Max: 1.0 MPa (air pressure)

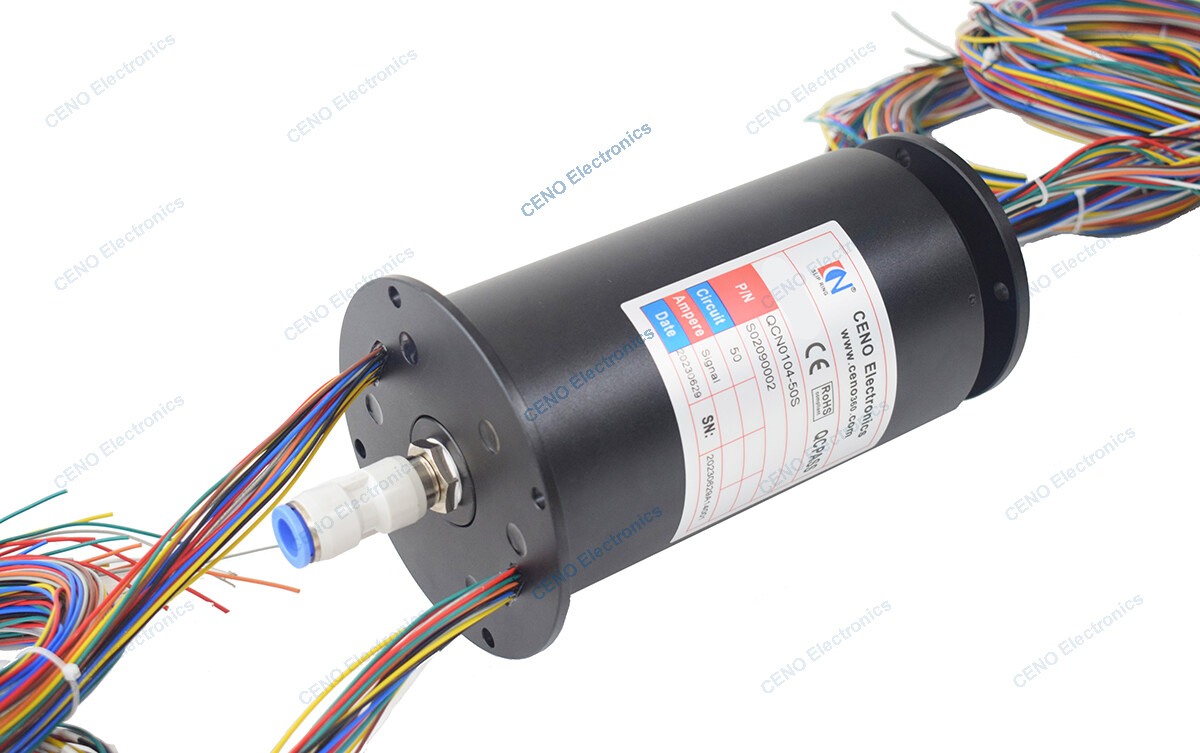

QCN0104-50S is CENO new product integrated pneumatic rotary union which combined 50 circuits power and 1 channel for air. Integrated slip ring combined pneumatic or hydraulic rotary union is designed for some special applications where requires both electric power and pneumatic or hydraulic transmission. It’s often apply to chemical and pharmaceutical, mechanical engineering, Food processing or laser cutting machinery, For more information please contact us freely.
