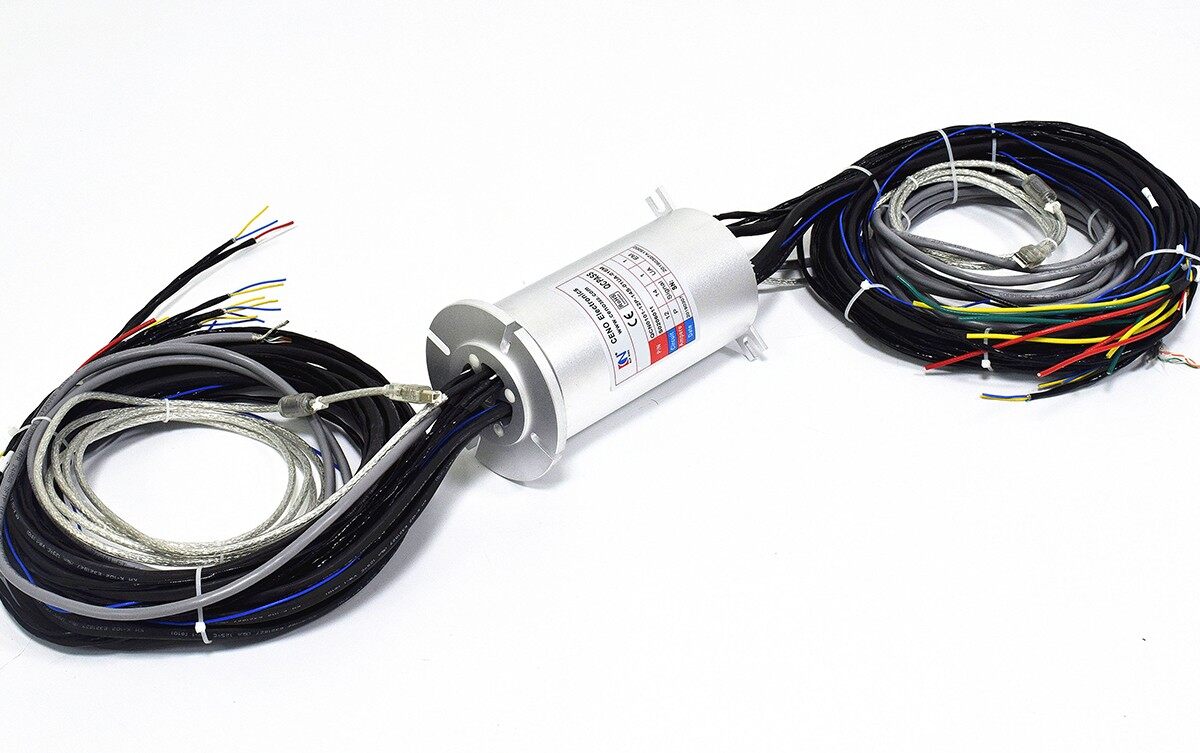

Integrate Power Signal Pneumatic Rotary Unions

• Circuits & Current: 13*20A; 2*10A; 12*7A; 1 group*USB2.0 signal; 1*100M Ethernet
• Voltage: 0~440VAC/VDC
• Resistance fluctuation: 10mΩ
• Dielectric strength: ≥800VAC@50Hz
• Insulation resistance: ≥1000MΩ@500VDC
• Operating Speed: 0~250rpm
• Contact Material: Precious Metals
• Operating temperature: -30℃~+80℃
• Channel number: 1*air
• Connector size: G1/8 & straight-through type
• Max pressure: <1.0MPa
• Pipe size: Ø8mm

CENO air rotary union can pass compress air, nitrogen and so on. The rotary union contains two precise bearings, they share a smooth and lasting high-speed running with firmness and flexibility. With many advantages long life, rapid delivery, transmit100M/1000M Ethernet, integrate various signal, anti-interference.
