Integrated FORJs Slip Ring

• Current & Circuits: 2*10A, 2*RS422 Signal
• Rating Voltage: 0~220 VAC/VDC
• Dielectric strength: ≥500VAC@50Hz
• Isolation resistance: ≥500MQ@500VDC
• Electrical noise: ≤30mΩ (50rpm)
• Lead wire length: Rotor – 300mm; Stator – 300mm
• Operating speed: 0~200rpm
• Contact material: Precious metal
• Housing material: Aluminum alloy
• Working temperature: -30°C~+65°C
• Working humidity: 60%
• IP protection grade: IP51
• Lead wire size: AWG17# Tin coated Teflon 4 core twisted shield wire
• Installation way: Stator sde fixed by flange Rotor side drove by the screw bolt

Fiber Parameter

• Fiber type: SM
• Channel: 4
• Wave length: 1310/1550nm
• Insert loss: Return loss ≥40dB
• Withstand power: ≤ 23 dBm
• Cable length: Rotor – 300mm; Stator – 300mm
• Contact type: LC

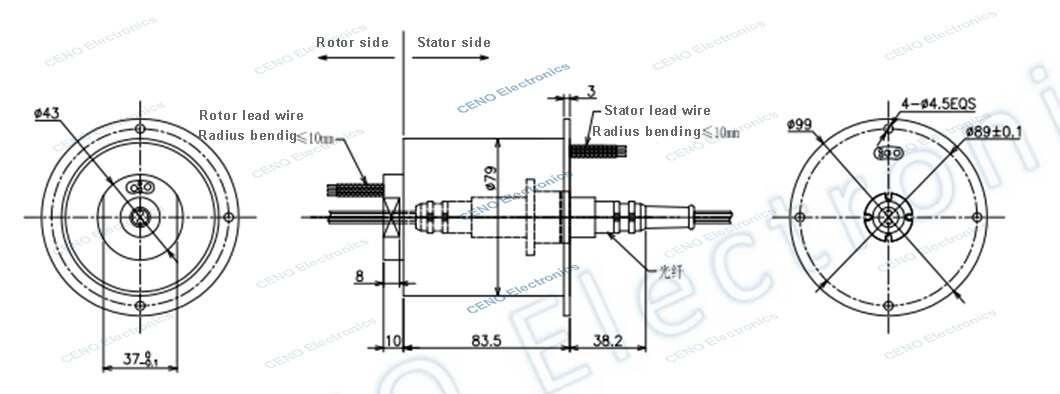

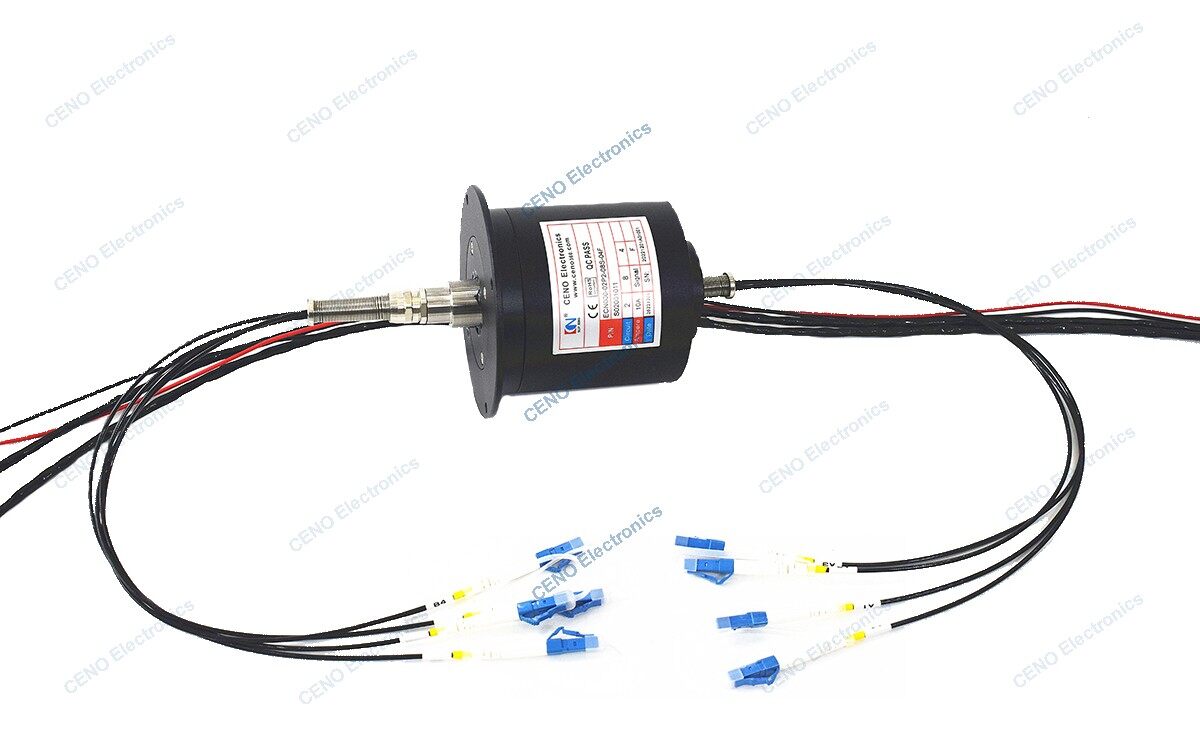

ECN000-02P2-08S-04F is an integrated slip ring combined 2 circuits for 10A with 2 group for RS422 Signals and 4 channels for fiber optical from CENO electronics. This series of slip ring is a customized non-standards series, designed for specific applications, the circuits, channels Voltage, IP Protection grade, wave length are optional as different application. It has stable performance and a variety of functions, often apply to the photoelectric Pod, medical equipment, Aerospace and electric crane.
