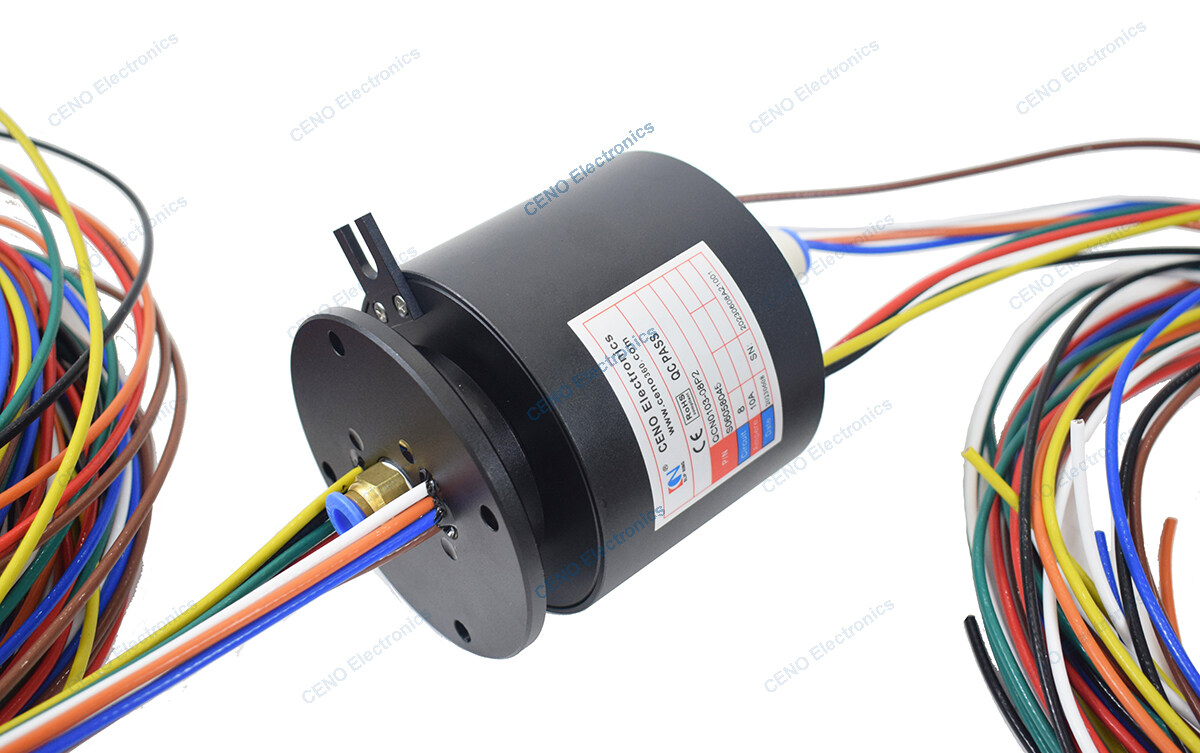

Integrated Pneumatic Rotary Union

• Current & Circuits: 8 circuis*10A
• Rating Voltage: 0~24VAC/VDC
• Dielectric strength: ≥300VAC@50Hz
• Isolation resistance: ≥100MΩ@100VDC
• Contact resistance: ≤30mΩ (50rpm)
• Contact material: Precious Metal
• Housing material: Aluminum Alloy
• Working temperature: -20°C~+80°C
• Working humidity: 0~65%RH
• IP protection grade: IP51
• Operating speed: 0~250rpm
• Lead wire size: AWG12# Wire Teflon® UL
• Lead wire length: Rotor : 6000mm; Stator : 3000mm
• External diameter: Ø99mm
• Installation: Flange installation

Rotary Union

• The road: 1 channel gas ( G3/8” & φ10mm tube)
• Pressure Max: 10 Bar

QCN0103-08P2 is CENO new integrated Power / Pneumatic Rotary Union which is engineered for the automatic industrial system. CENO offers a wide range of slip ring assemblies for electrical power, data, pneumatic of fluid transfer in construction, material handling, offshore, mining and crone applications. The integrated slip rings are engineered in accordance to special requirements where require both electric conductive and pneumatic and hydraulic rotary unions. For more information about how CENO slip ring can fit your specification please contact us freely.
