Integrated Pneumatic Rotary Union

• Current & Circuits: 14*30A; 9*20A; 1*PE; 12*5A
• Rating Voltage: 0~400VAC/VDC
• Dielectric strength: ≥1000VAC@50Hz; ≥300VAC@50Hz
• Isolation resistance: ≥500MΩ@500VDC; ≥100MΩ@100VDC
• Contact resistance: ≤30mΩ (50rpm)
• Contact material: Precious Metal
• Housing material: Aluminum Alloy
• Working temperature: -20°C~+80°C
• Working humidity: 0~65%RH
• IP protection grade: IP51
• Operating speed: 0~250rpm

Lead wire size:

• Signal core shielded wire
• AWG12# Wire Teflon® UL
• AWG22# Wire Teflon® UL
• Lead wire length: Rotor – 3000mm; Stator – 15000mm
• External diameter: Ø119mm
• Install: Flange installation

Rotary Union

• The road: 1 Channel oxygen ( G1/2” & φ12mm tube)
• Pressure Max: 10 Bar

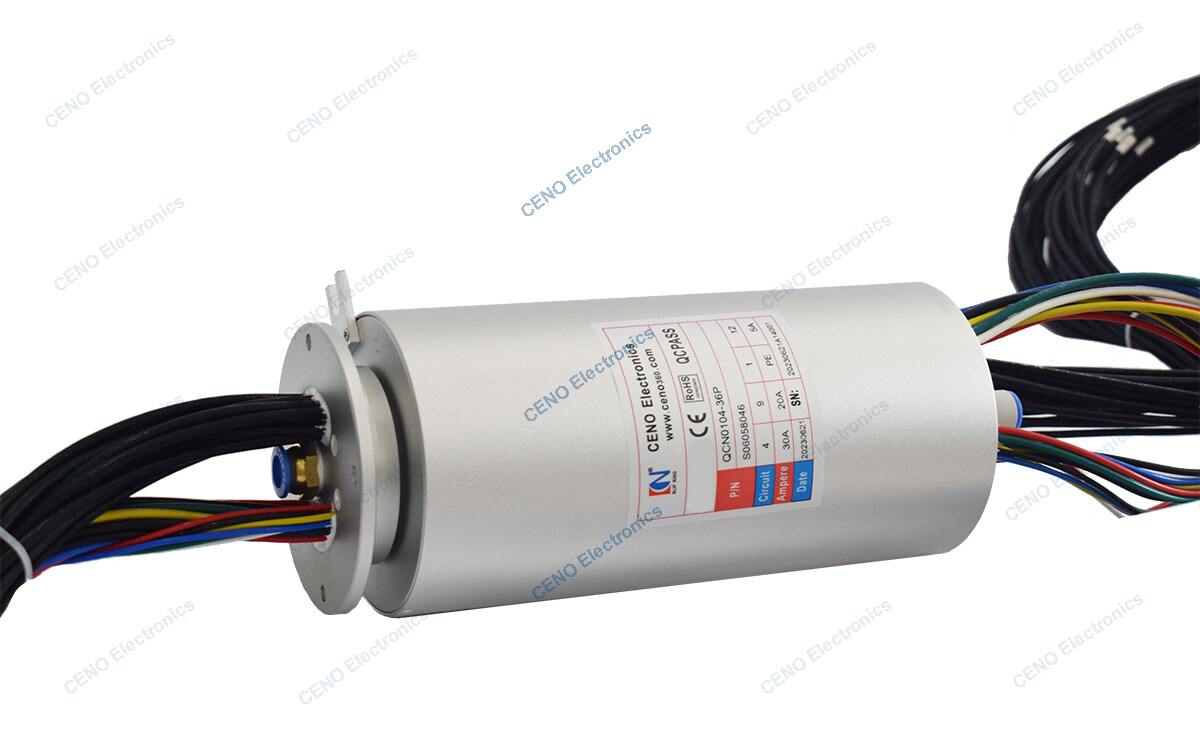

QCN0104-36P is CENO new integrated slip ring with 1 channel oxygen. Electrical slip ring and pneumatic or rotary unions combined slip ring is designed for some special applications that require both electric collector and pneumatic / hydraulic rotary unions. Take the vehicular slip ring for example, the tanks, mobile missile launchers and armored personnel carriers pose a variety of challenges. Which can prevent tube winding problem well, and can provide 1-24 pneumatic passage and hundreds wires power or signals for different specific applications, for more information please contact us freely.
