Integrated Pneumatic Rotary Union

• Current & Circuits: 8circuits*5A
• Rating Voltage: 0~24 VAC/VDC
• Dielectric strength: ≥300VAC@50Hz
• Isolation resistance: ≥100MΩ@300VDC
• Contact resistance wave range: ≤30mΩ (50rpm)
• Contact material: Precious Metal
• Housing material: Aluminum Alloy
• Working temperature: -30°C~+80°C
• Working humidity: ≤60%RH
• Protection Grade: IP51
• Operating speed: 0~ 30 rpm
• Lead wire size: AWG22# Tin coated Teflon ® UL
• Lead wire length: Rotor – 500mm; Stator – 500mm
• External diameter: Ø56mm
• Installation: Rotor side fixed with Flange; Stator side fixed with screws

Rotary Union

• Channels: 2 channels * air
• Connector size: G1/8” Ø8mm tube
• Pressurex: -1.00KPa ~ 0.6 MPa
• Working speed: 0~ 30 rpm
• Rotation Torque: ≤0.5N*m

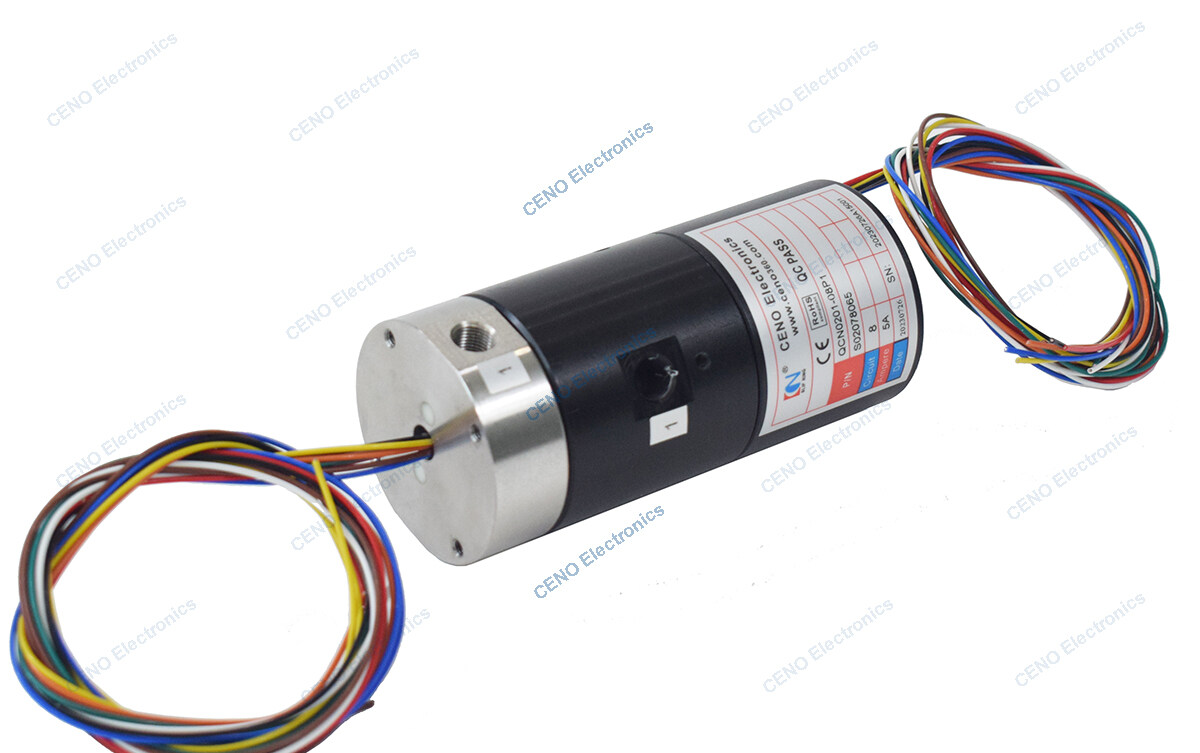

QCN0201-08P1 is CENO new integrated pneumatic rotary union which combined 8 circuit electric power and 2 channels air that applied to various environments, such as the laser engraving machine, filling machinery, food processing machinery or mechanical engineering. The increasing complexity of modern automatic machine demands slip ring that provide reliable electrical interfaces, pneumatic or hydraulic rotary union between the stationary and rotating parts of these automatic equipment. For more information about how CENO slip ring can fit your specific applications, please contact us.
