Integrated Pneumatic Slip Ring

• Current & Circuits: 18*10A; 2*485 signal; 1*servo motor; 1*100M Ethernet
• Rating Voltage: 0~380VAC/VDC
• Dielectric strength: ≥1000VAC@50Hz; ≥300VAC@50Hz
• Isolation resistance: ≥500MΩ@500VDC; ≥100MΩ@500VDC
• Contact resistance wave range: ≤30mΩ (50rpm)
• Contact material: Precious Metal
• Housing material: Stainless steel + Aluminium Alloy
• Working temperature: -20°C~+60°C
• Working humidity: 0~ 60%
• Protection Grade: IP51
• Operating speed: 0~250rpm
• Lead wire size:

• AWG17# Tin coated Teflon® UL
• 0.2mm2 4cores twisted shield wire
• 0.2mm2 8cores twisted shield wire
• CAT5E Net wire
• Lead wire length: Rotor-5000mm; Stator-5000mm

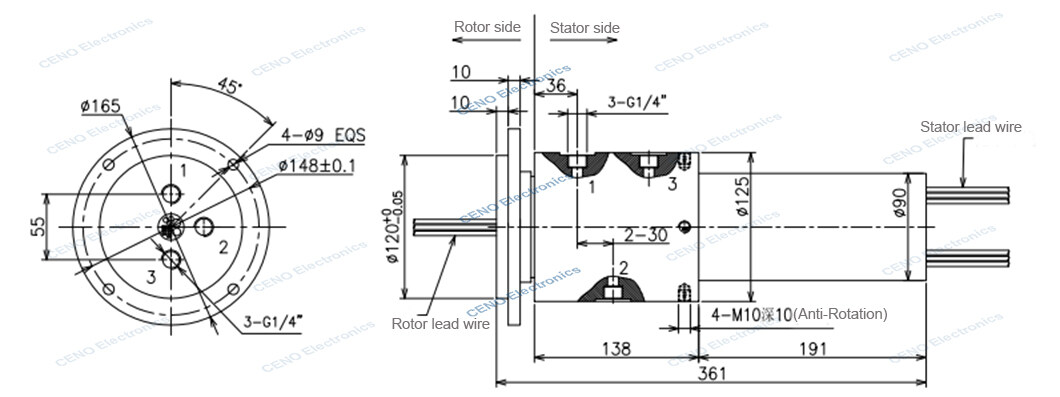

• External diameter: Ø125mm
• Installation: Flange installation

Rotary Unions

• Channels: 3 channels * Air ( pressure air )
• Interface size: G 1/4”
• Pressure Max: Vacuum: ＜ -95KPa;
• Pressure Air: ＜ 0.8MPa
• Torque: ＜15N*m

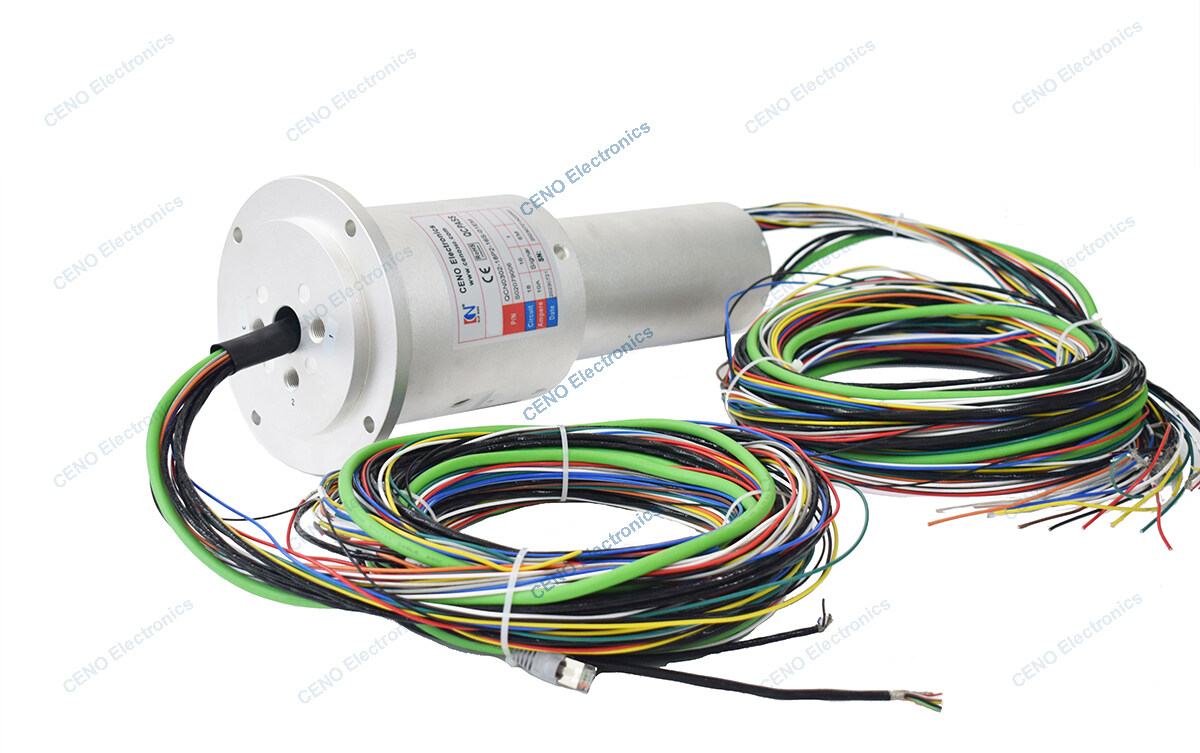

QCN0302-18P2-16S-01EM is CENO new customized slip ring which combined electric power, 485 signals, servo motor, 100M Ethernet and 3 channels pneumatic rotary union. This integrated slip ring is designed for special applications where require both electric power,signals and Pneumatic transferring. This kind of slip ring can be integrated with different current, signals, pneumatic hydraulic for different applications, and it has become more and more widely concerned about various industries. For more information about how CENO slip ring can fit your specific application please contact us.
