Integrated Signal Slip Ring

• Current & Circuits: 2*60A; 2*10A; 6*25A; 8*7A; 1*PE; 1*1000M Ethernet; 1group *USB2.0; 2 group*BNC; 1group*DB9
• Rating Voltage: 0~24 VAC/VDC
• Dielectric strength: ≥1000VAC@50Hz; ≥300VAC@50Hz
• Isolation resistance: ≥500MΩ@500VDC; ≥100MΩ@100VDC
• Electrical noise: ≤30mΩ (50rpm)
• Operating speed: 0~300rpm
• Contact material: Precious metals
• Housing material: Aluminum alloy
• Working temperature: -20°C~+60°C
• Working humidity: Max60%
• IP protection grade: IP51
• Through hole size: Ø25.4mm
• Lead wire size: AWG6# Tin coated Teflon ®UL AWG17# Tin coated Teflon ®UL AWG12# Tin coated Teflon ®UL 4 core twisted wire AWG17# Cat5e RG179 9 core twisted wire
• Lead wire length: Rotor: 1000mm Stator: 3000mm

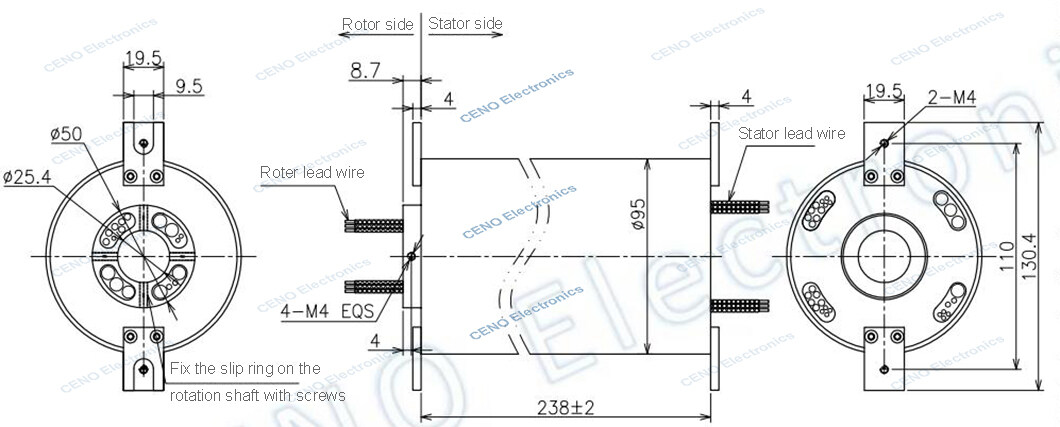

• Installation way: Rotor side fixed on the main shaft with screws

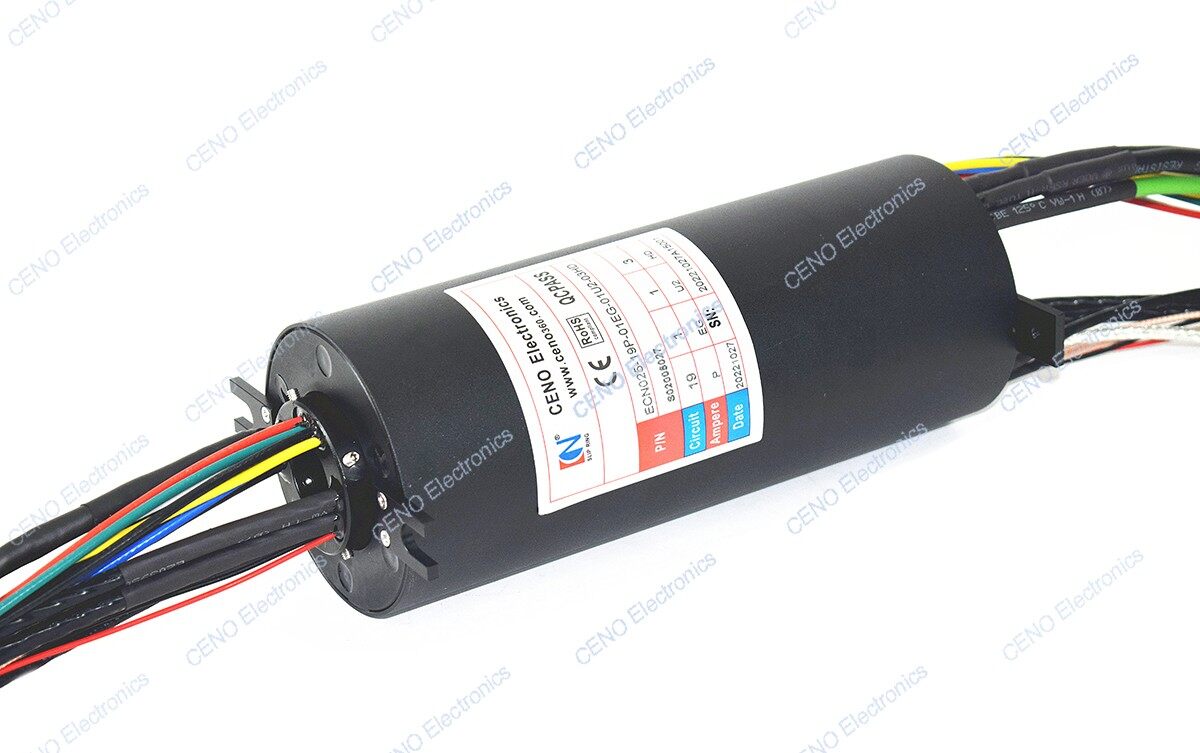

ECN025-19P-01EG-01U2-03HD is an integrated signals slip ring with through hole from CENO electronics. It’s combined with circuits of electrical power, 1group of 1000M Ethernet, 1group of USB signal, 2 group of BCN and 1group of DB9. Often called hollow shaft industry slip ring or electrical collector too, the hole size from 3mm to 980mm are optional, with a variety of functions and can transmit signals ,data and analog signals stably. Due to it’s stable transmission, no package loss and low insertion loss, it’s mainly used on the Automatic machines, Infrared photography, High definition photography, Motion simulator.
