Integrated Slip Ring

• Current & Circuits: 16*5A, 4*Profi-net Signal
• Rating Voltage: 0~220VAC/VDC
• Dielectric strength: ≥500V@50Hz
• Isolation resistance: ≥300MΩ@100VDC
• Contact resistance: ≤30mΩ
• Operating speed: 0~50rpm
• Contact material: Precious Metal
• Housing material: Aluminum Alloy + Stainless steel
• Working temperature: -20°C~+80°C
• Working humidity: 60 %RH
• IP protection grade: IP65
• Lead wire size: 4 cores cable; 4 cores two twisted shield cable
• Lead wire length: Rotor – 1000mm; Stator – 1000mm

Air Parameter

• Channel: 2circuits * gas
• Connect inch: RC 1/8”
• Air pressure: 1.0MPa
• Rotary Torque: ≤3N*m

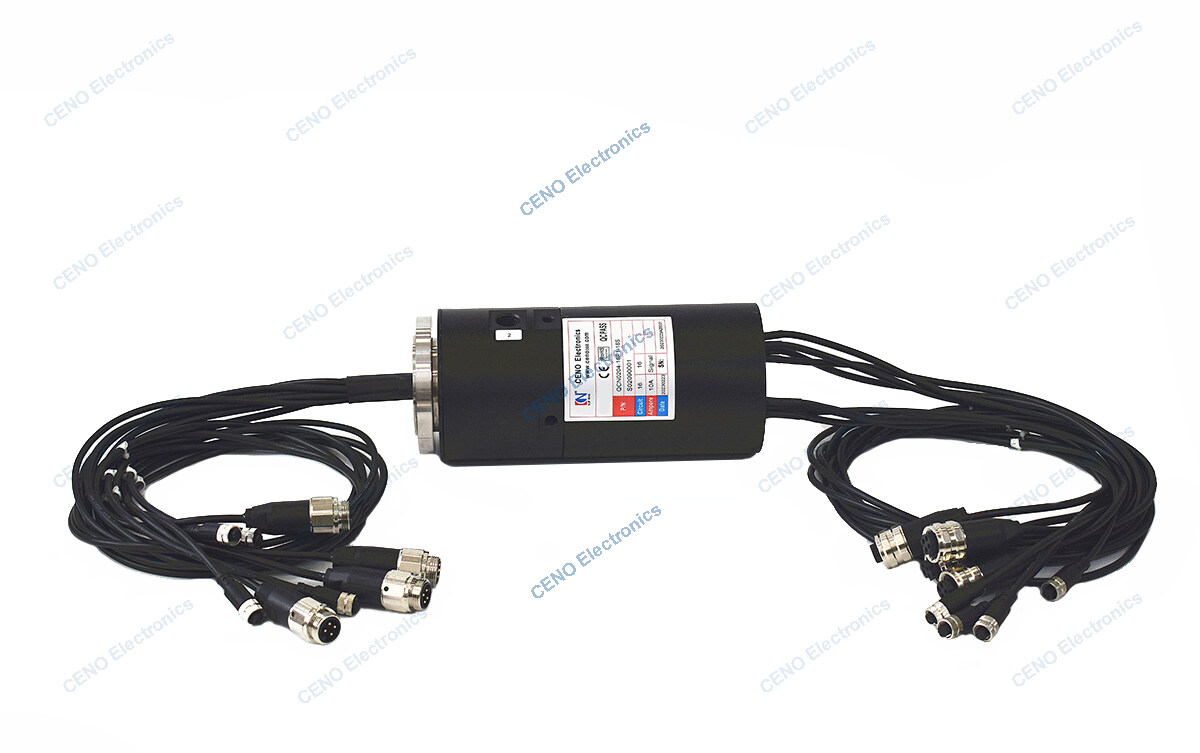

QCN0204-16P1-16S is a integrated slip ring which combined electric power, profi-net signal and pneumatic for industry application from CENO Electronics. The boundary dimension, installation and sealing form can be selected according to different application. The electric circuits can be up to hundreds, and the pneumatic or hydraulic can reach to 16 channels as different environment.It’s often apply to the Medical equipment, Filling machine, Plastic fiber manufacture or iron and steel industry. For more information about how CENO’s slip ring can fit your specific application, please contact us freely
