Integrated Slip Ring

• Current & Circuits: 4*10A, 10*IO Signal, 2*1000M Gigabit Ethernet
• Rating Voltage: 0~220VAC/VDC
• Dielectric strength: ≥1000V@50Hz; ≥300V@50Hz
• Isolation resistance: ≥500MΩ@500VDC; ≥100MΩ@100VDC
• Contact resistance: ≤70mΩ
• Operating speed: 0~60rpm
• Contact material: Precious Metal, Gold to gold
• Housing material: Aluminum Alloy + Stainless steel
• Working temperature: -20°C~+60°C
• Working humidity: 60 %RH
• IP protection grade: IP64
• Inner diameter: Ø25.4mm
• Lead wire size: AWG17# 22# Tin coated Teflon®UL; Cate5e
• Lead wire length: Rotor – 1000mm; Stator – 1000mm
• Installation: Fix rotor side to guest main shaft with screws

Air Parameter

• Channels: 2* Vacuum; 2* pressure air
• Operation pressure: -90KPa~0.7MPa
• Rotary Torque: ≤8.0N*m

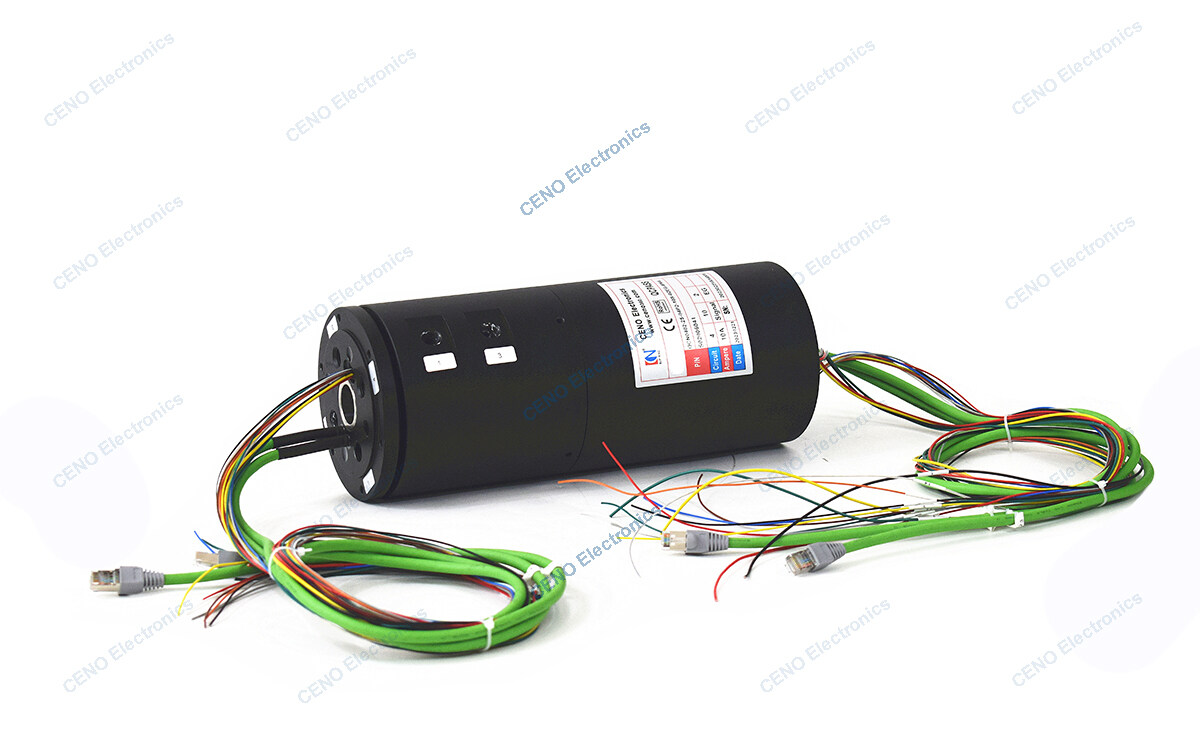

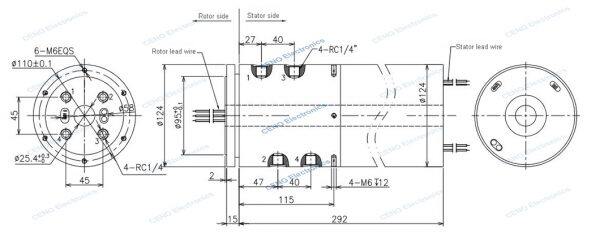

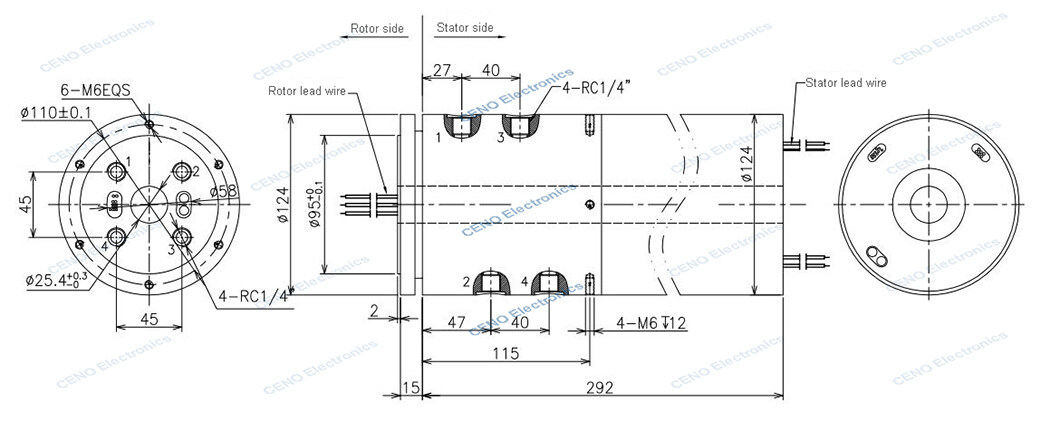

QCN0402-25-04P2-10S-02EG-IP64 is a Integrated Slip Ring that combined Pneumatic Rotary Union with through hole and gigabit Ethernet signal for industry application from CENO Electronics. Due to It’s specific structure and function design, it can be called Ethernet slip ring, pneumatic slip ring and through hole slip ring also. There are 4 circuits for electric power, 10 circuits for IO Signal, 2 circuits for 1000M Gigabit Ethernet and 2 channels for air, and most parameters can be optional as specific environment. For more information about how CENO’s slip ring can fit your specific application, please contact us freely.
