Large Size CAN BUS Slip Ring

• Circuits & Current: 3*25A; 1*CAN Signal; 2*IO SignalRating
• Voltage: 0~240VAC/VDC
• Dielectric Strength: ≥1500VAC@50Hz; ≥300VAC@50Hz
• Insulation Resistance: ≥500MΩ@500VDC; ≥100MΩ@300VDC
• Electrical NoiseMax: 10mΩ
• Protection (IP Grade): IP00
• Working Humidity: 0~60%
• Working Temperature: -20℃~+60℃
• Working Speed: 0~100rpm
• Rotor material: H62 copper
• Stator material: Precious metal
• Installation material: DMC
• Lead Wire Size: AWG12#22# Wire Teflon® UL Two-Core Shield Wire
• Lead Wire Length: Rotor:500mm; Stator:500mm
• Inner Diameter: Ø500mm

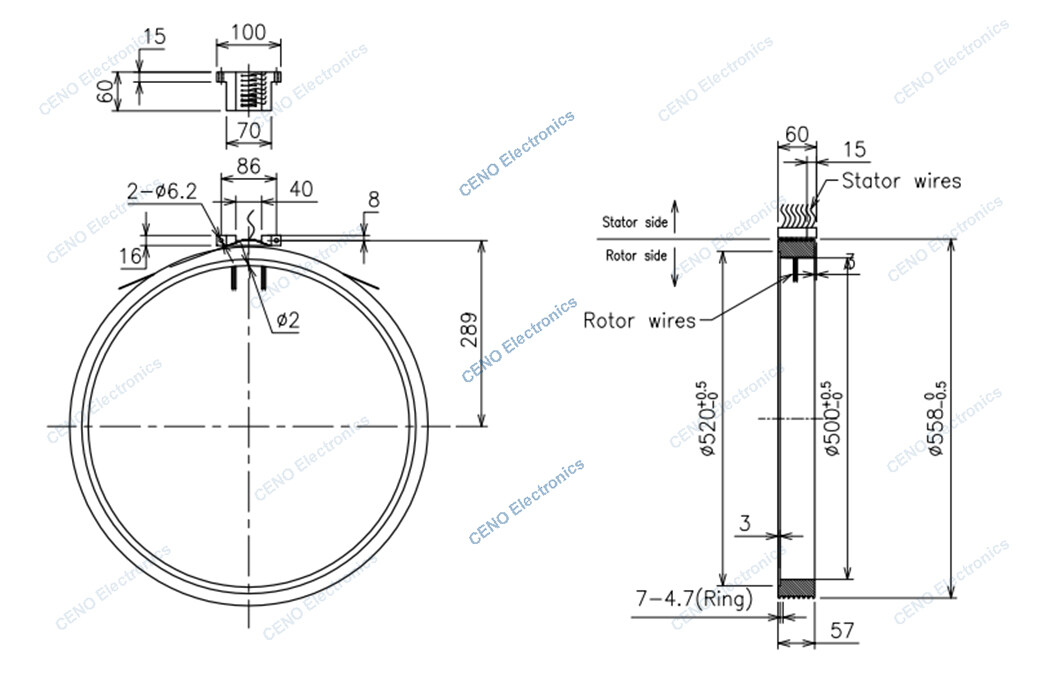

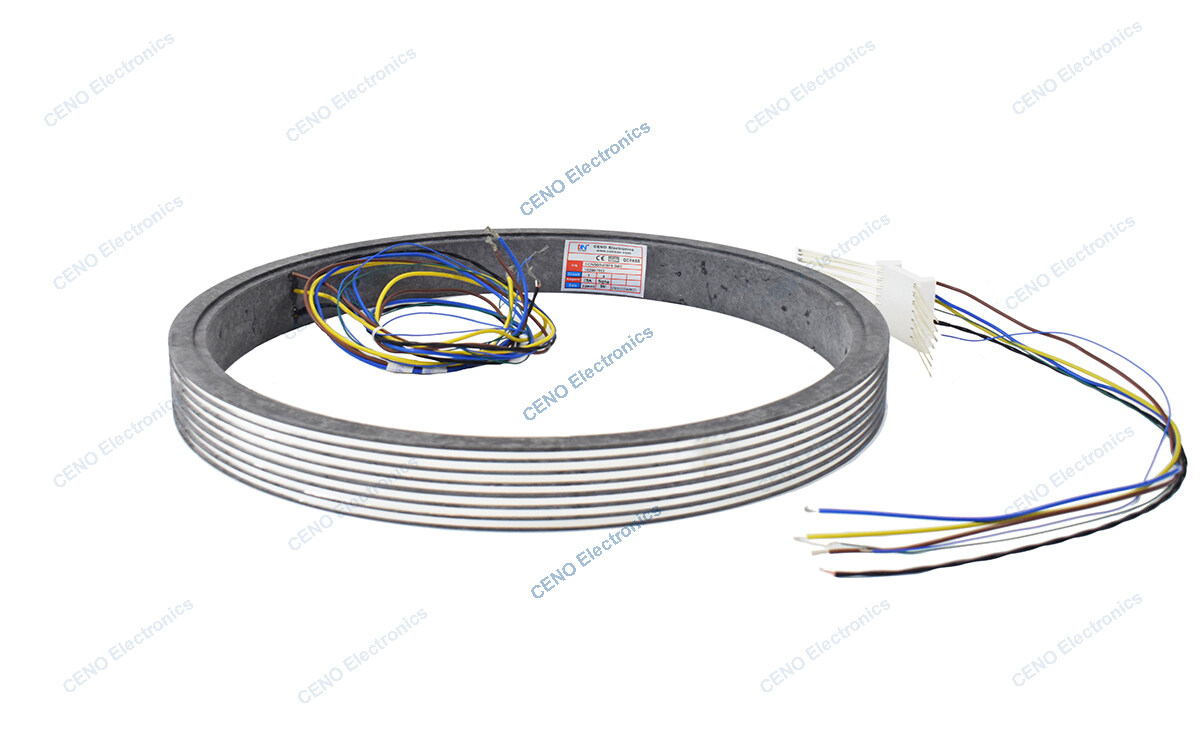

SCN500-03P4-04S is CENO new customized separate slip ring which combines electrical power, CAN BUS with IO Signals for medical equipment. The separated slip ring is consisted by the separate rotor and contact brushes. The rotor parts often designed with through hole to leave space for customer’s shaft. CENO have design and manufacture thousands of slip rings including kinds separate slip ring. If you can’t find suitable slip rings in our product list, please contact us to start new one design.
