Large Size Slip Rings

• Circuits & Current: 3*15A , 1*35A , 6 group*K thermocouple signal
• Voltage: 0-440VAC/VDC
• Dielectric strength: ≥1000V@50Hz(power); ≥100V@50Hz(signal)
• Isolation resistance: 500MΩ@500VDC(power); 100MΩ@100VDC(signal)
• Operating speed: 0-60 rpm
• Contact material: precious metals
• Operating temperature: -30~+80℃

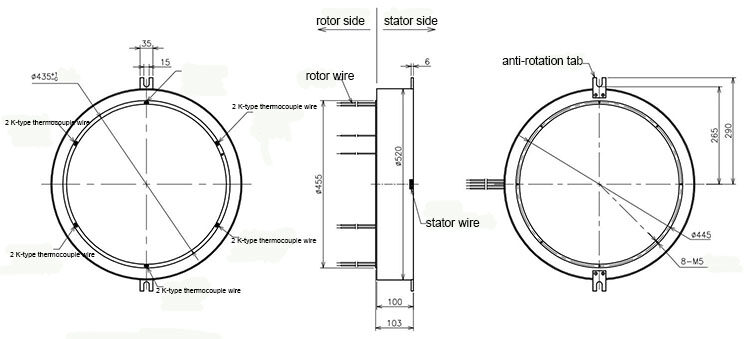

• Through bore size: 435mm
• IP protection grade: IP51

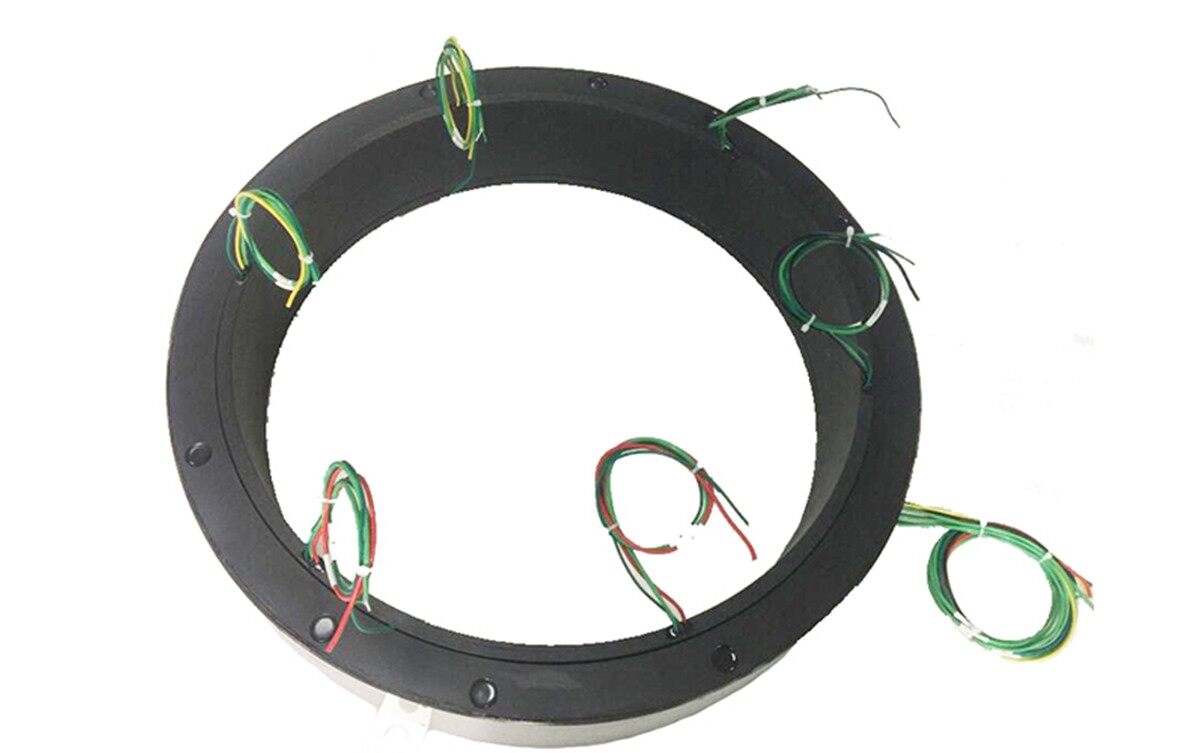

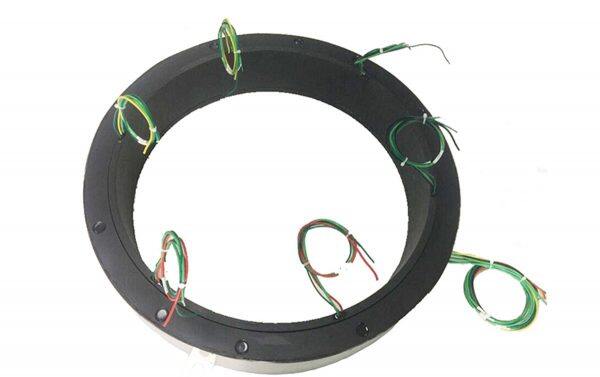

This is large size slip ring, through bore size is 435mm, there are 6 group K type thermocouple signal. It is mainly used for food automation equipment, not only has the stable transmission performance, but also has the good rotation performance. CENO production processes allow the slip ring to be built in an assembly line fashion that significantly reduces delivery time and price.
