Large Size Water Proof Slip Rings

Current & Circuits: 4 circuits*63A; 12circuits*10A
Rating Voltage: 0~380 VAC/VDC
Dielectric strength: ≥1000VAC@50Hz
Isolation resistance: ≥300MΩ@100VDC
Electrical Noise: 70mΩ (50rpm)
Contact material: Precious Metal
Housing material: Stainless steel
Working temperature: -20°C~+60°C
Working humidity: 60 %RH
IP protection grade: IP65
Operating speed: 0~100rpm

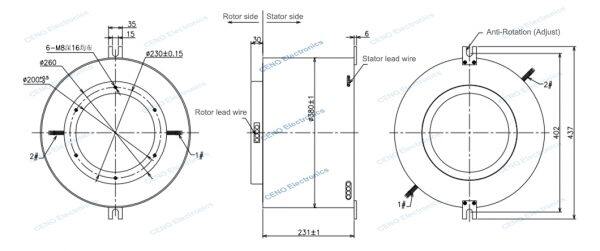

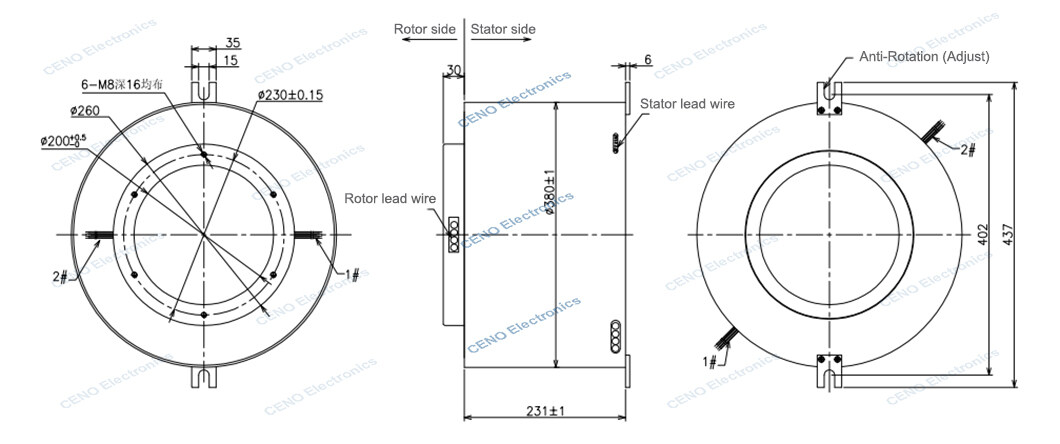

Inner diameter: Ø200mm
Lead wire size: AWG 17# Tin coated Teflon® UL
Lead wire length: Rotor : 7000mm; Stator : 3000mm
Installation: Rotor: Flange; Stator : Anti-Rotation

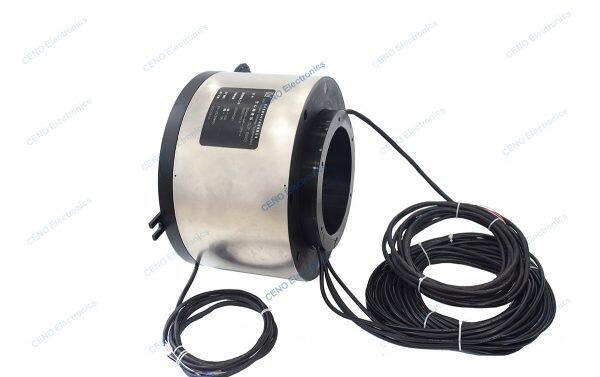

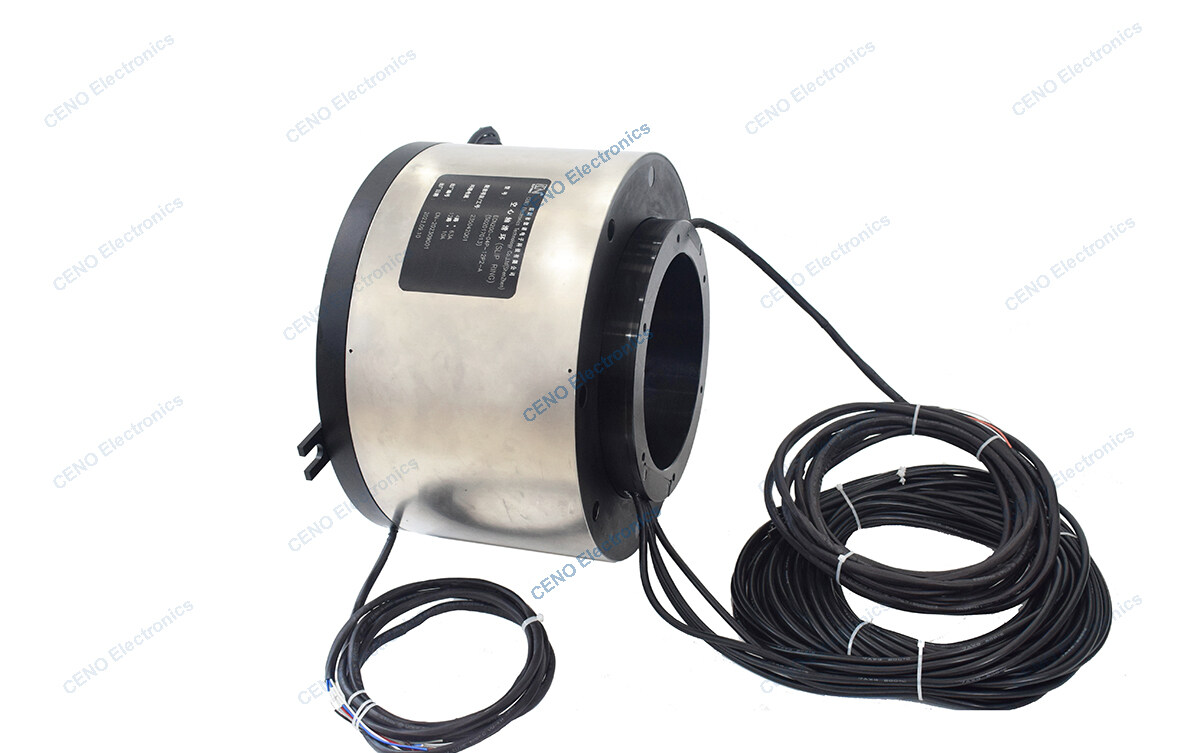

ECN200-04P-12P2-A is CENO Large diameter water proof slip rings with IP65 & through bore ID200mm for high humidity environment. The unobstructed bore through the center provides routing space for concentric shaft mount. CENO through-bore slip rings feature fiber brush technology which offers many advantages than conventional slip ring technology including multiple points of contact force per fiber and low contact wear rates. For more information please contact us.
