Low Temperature Signal Slip Ring

Current & Circuits: 5 Groups for thermocouple, Encoder and Ethernet signals
Rating Voltage: 0-24VAC/VDC
Dielectric strength: ≥300VAC@50Hz
Isolation resistance: ≥100MΩ@300VDC
Contact resistance: ≤30mΩ (50rpm)
Working temperature: -40°C~+60°C
Working humidity: 60 %RH
IP protection grade: IP65
Operating speed: 0 ~ 300rpm
Inner diameter: Ø50mm
Housing material: Aluminum Alloy
Contact material: Precious metal
Lead wire size & length: As Customized
Rotation Way: Fix up stator side with anti-rotation tab side

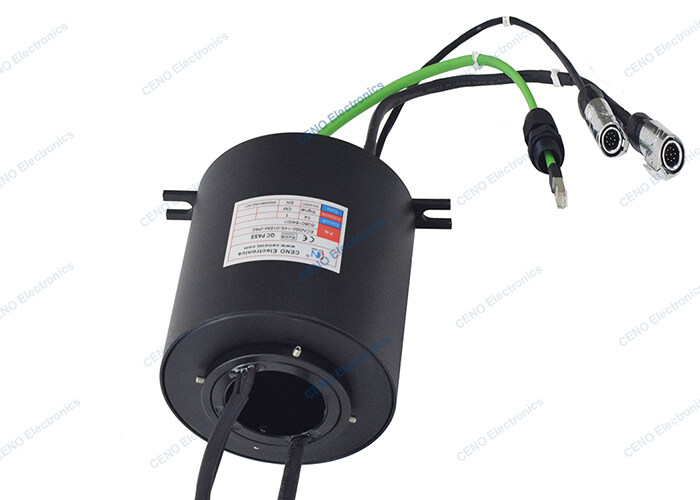

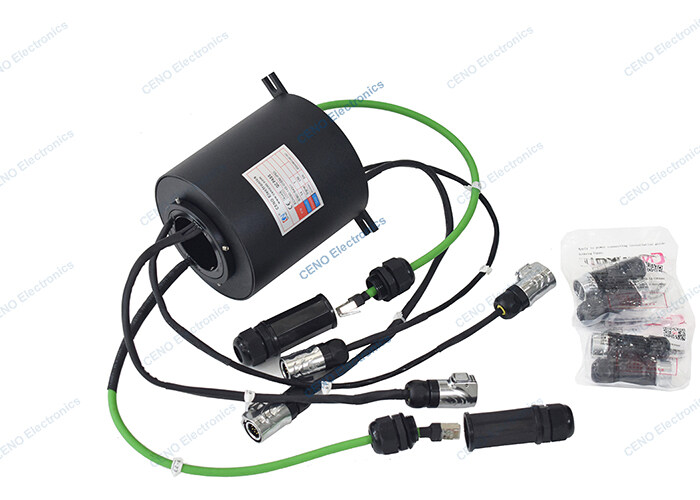

ECN050-14S-01EM-IP65 is CENO new customized low temperature slip ring which combine thermo-couple signal, Encoder signal and Ethernet signal. CENO have kinds for signal slip ring, the integrate slip rings play an important role in industrial automation, control system and computer science, widely used on the position and velocity detection, inter process communication, or for the equipment of measure the temperature of gases or liquids in furnaces and pipelines. More information please contact us.
