Low Temperature Slip Ring

• Current & Circuits: 4*10A; 18*Signal
• Rating Voltage: 0~380VAC/VDC
• Dielectric strength: ≥1000VAC@50Hz
• Isolation resistance: ≥500MΩ@500VDC
• Electrical Noise: 30mΩ (50rpm)
• Contact material: Precious Metal
• Housing material: Aluminum Alloy
• Working temperature: -70°C~+85°C
• Working humidity: 90 %RH
• IP protection grade: IP54
• Operating speed: 0~60rpm

Lead wire size:

• AWG16#24# Wire Teflon® UL;
• 4cores twisted shielded wire
• Single core shielded wire

Lead wire length: Rotor: 1500mm; Stator: 800mm

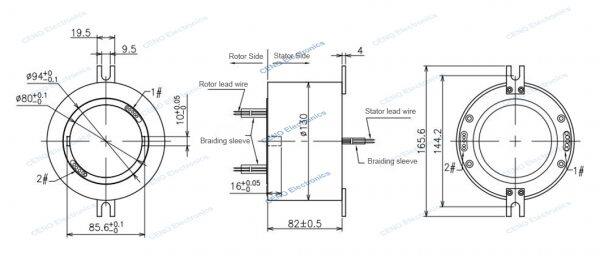

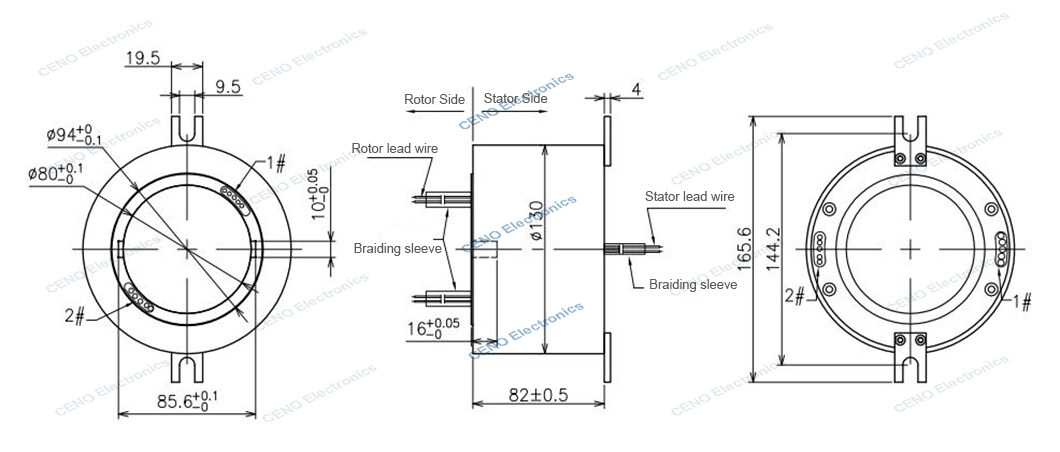

Inner Diameter: Ø80mm
External Diameter: Ø130mm
Installation: Fix rotor side upon Shaft with screws

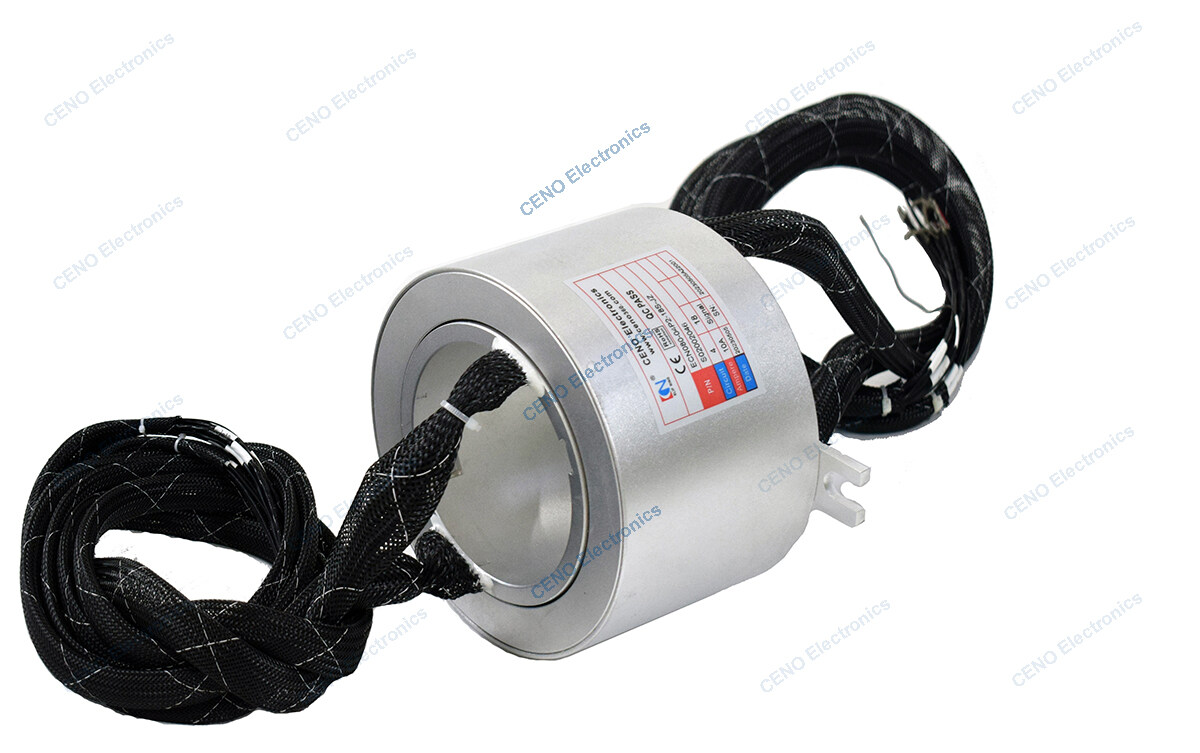

ECN080-04P2-18S-JZ is CENO new design low temperature slip ring which can be working stably at the temperature from -70°C to +85°C and it’s often designed and applied for the aircraft, military or defence. CENO has over than 5000 designs in the past twenty years, the operation temperature range can be up to -100°C~+250°C for different applications. In order to achieve the corresponding level of high and low temperature resistance performance, these slip rings are much stricter than ordinary slip rings in the selection of key components. Please contact us for more information about how CENO slip ring can fit your application.
