Low Temperature Slip Ring

• Current & Circuits: 37circuits*25A; 1circuits*PE
• Rating Voltage: 0~380VAC/VDC
• Dielectric strength: ≥1000VAC@50Hz
• Isolation resistance: ≥500MΩ@500VDC
• Electrical noise: ≤30mΩ (50rpm)
• Operating speed: 0~5rpm
• Contact material: Precious metal
• Housing material: Aluminum alloy
• Working temperature: -57°C~+40°C
• Working humidity: 60%
• IP protection grade: IP56

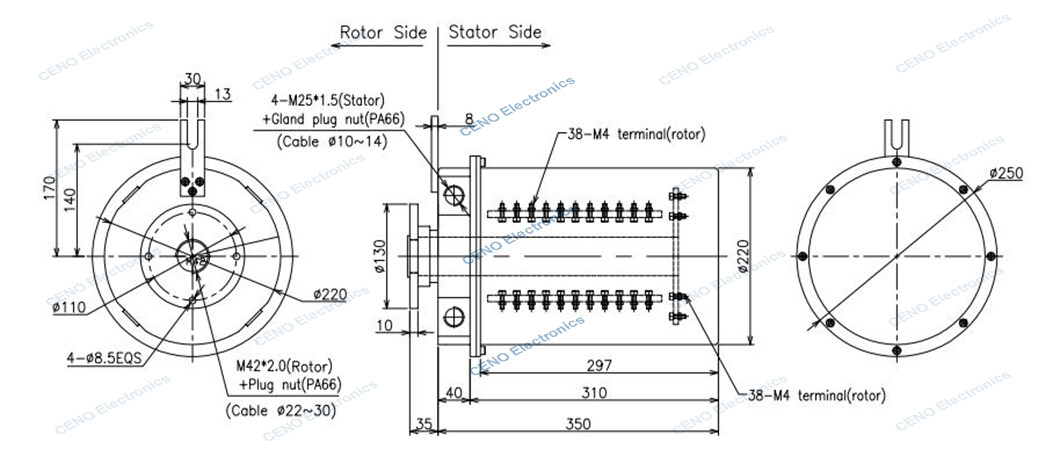

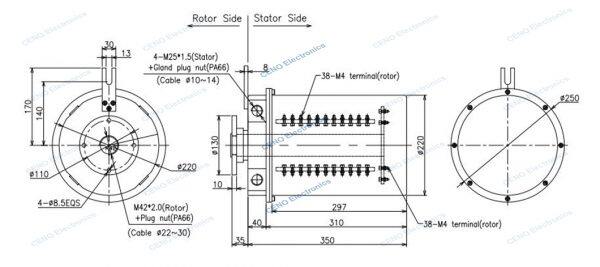

• External diameter: Ø220mm
• Lead wire size: AWG12# Wire Teflon®UL
• Lead wire length: Rotor – M4 Terminal; Stator – M4 Terminal
• Installation: Fix up stator side with anti-rotation side shaft drives rotor running

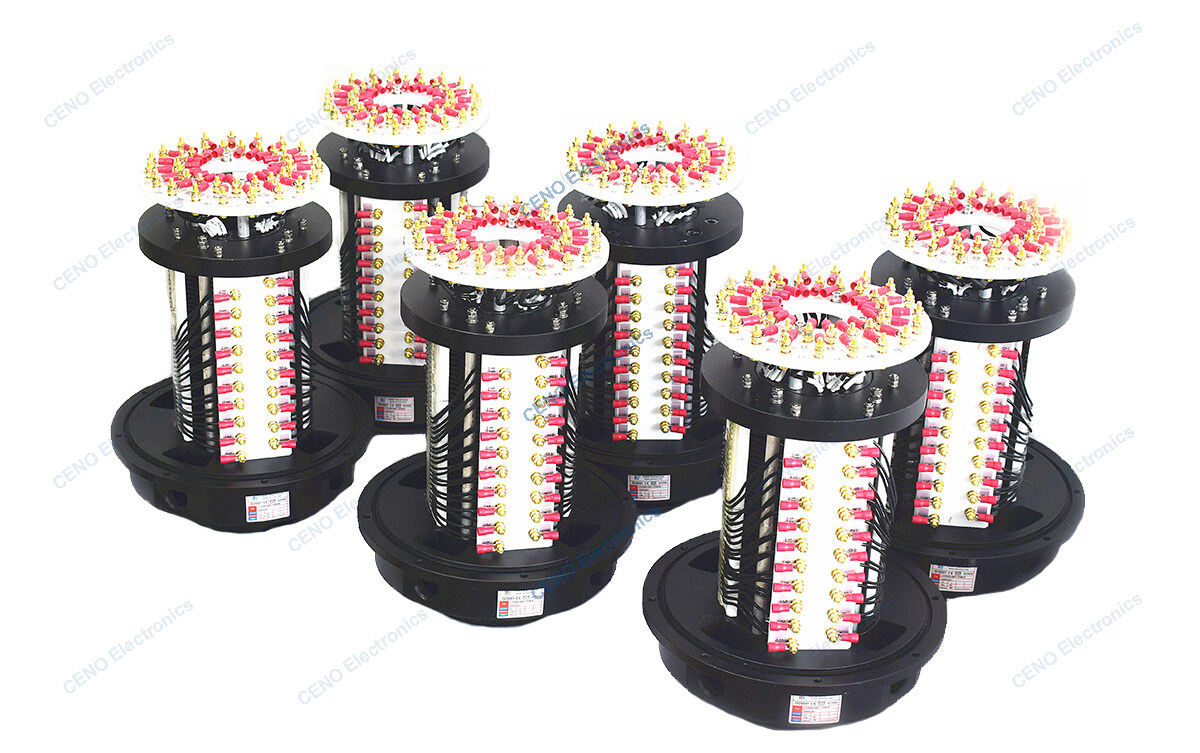

ECN000-38P4-IP56-B is Function slip ring with low temperature from CENO Electronics, there are 37 circuits for 25A, and 1 circuits for PE. In CENO’s high / low temperature slip ring series, it’s designed for harsh environment specially, therefore, the features with anti-corrosion, stable performance, ageing resistance, anti-sharp pounding and high or low temperature resistance design and can meets the needs of working in the cold regions of Siberia, and hot rainforest areas of Brazil.
