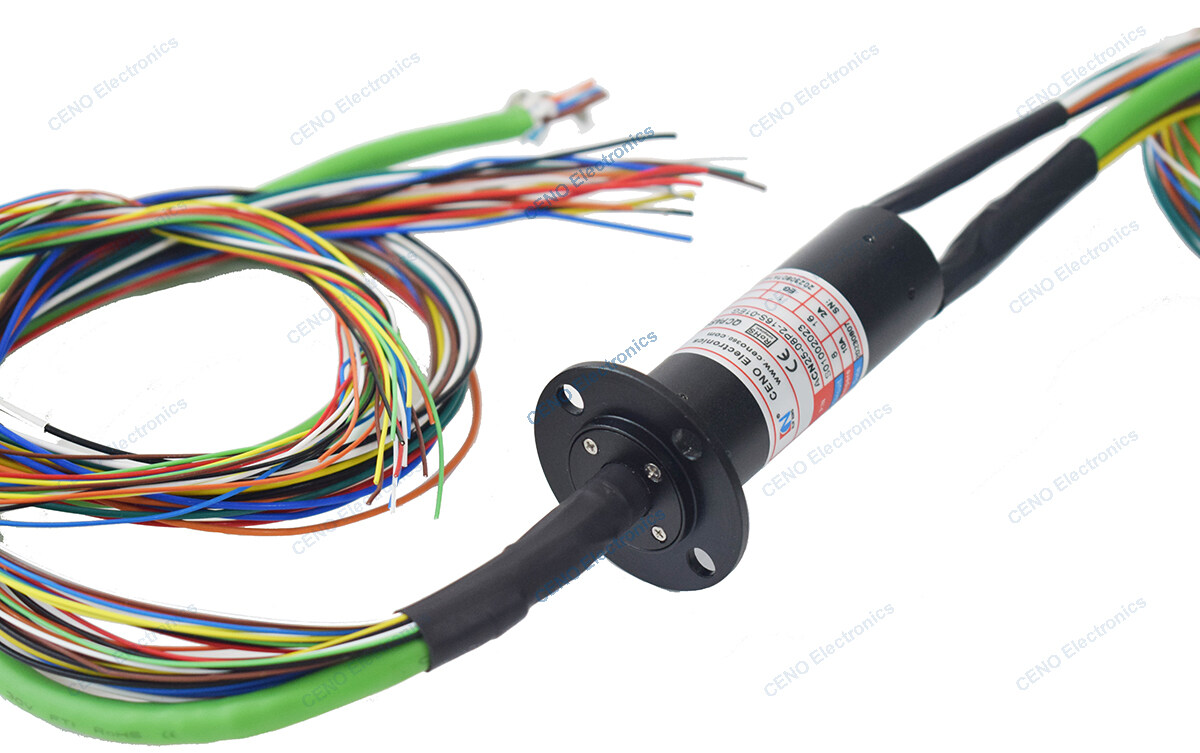

Low Temperature Slip Ring Capsul

• Current & Circuits: 8*10A; 16*2A; 1*1000M Ethernet
• Voltage: 0~240 VAC/VDC
• Dielectric strength: ≥500VAC@50Hz
• Isolation resistance: ≥500MΩ@500VDC
• Contact resistance: 10mΩ (50rpm)
• Contact material: Precious metal
• Housing material: Aluminum Alloy
• Working temperature: -40°C~+80°C
• Working humidity: 80%RH
• IP protection grade: IP51
• Operating speed: 0~250rpm
• Lead wire length: Rotor: 500±10mm Stator: 1000±10mm
• External diameter: Ø25mm

CENO Electronics is a leading designer and manufacture of slip rings, including many kinds of slip ring, such as the power slip ring, function slip ring, signal slip ring and and integrated slip ring. ACN25-08P2-16S-01EG is our new product low temperature mini slip ring capsule, one of the key features of CENO slip rings is their ability to be customized to meet specific requirements. No matter what type of slip ring you need, you can trust CENO Electronics for quality products. Please contact us to learn more about CENO slip rings and see how we can help you meet your needs.
