Megabit Ethernet Slip Ring

• Current & Circuits: 3*13A, 5*5A, 14*14A, 5*100M Ethernet (Signal), 1* PE
• Rating Voltage: 0~380VAC/24VDC
• Dielectric strength: ≥1000VAC@50Hz,60s; ≥300VAC@50Hz,60s
• Isolation resistance: ≥500MΩ@500VDC; ≥100MΩ@100VDC
• Electrical noise: ≤30mΩ (50rpm)
• Operating speed: 0~20rpm
• Contact material: Precious metal
• Housing material: Aluminum alloy
• Working temperature: -40°C~+40°C
• Working humidity: 85%
• IP protection grade: IP55

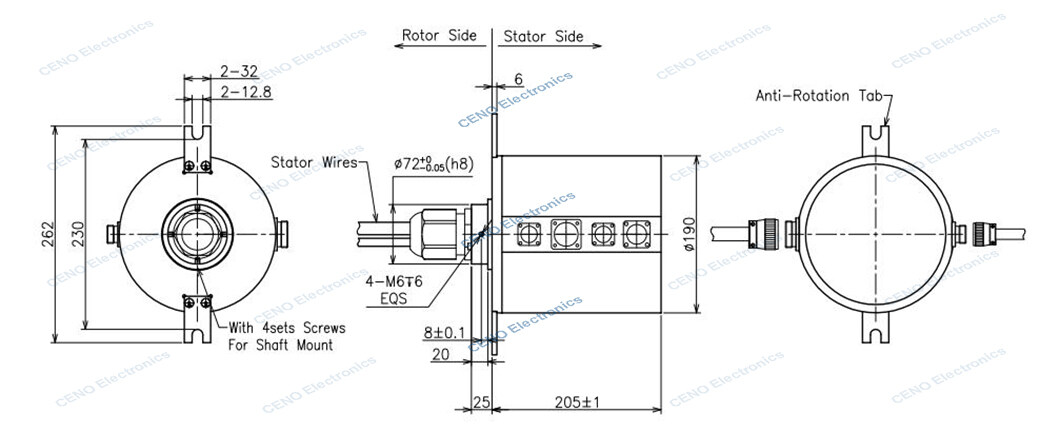

• External diameter: Ø190mm
• Lead wire size: 3*2.5mm² wire; 7*2.5mm² wire; 2*2*0.75mm² Twisted Shield wire; 1*25mm² wire
• Lead wire length: Rotor : 5000mm/12000mm; Stator : 27000mm(with plug on cable)
• Installation: 4 screws spindle fixed on the axis of rotation

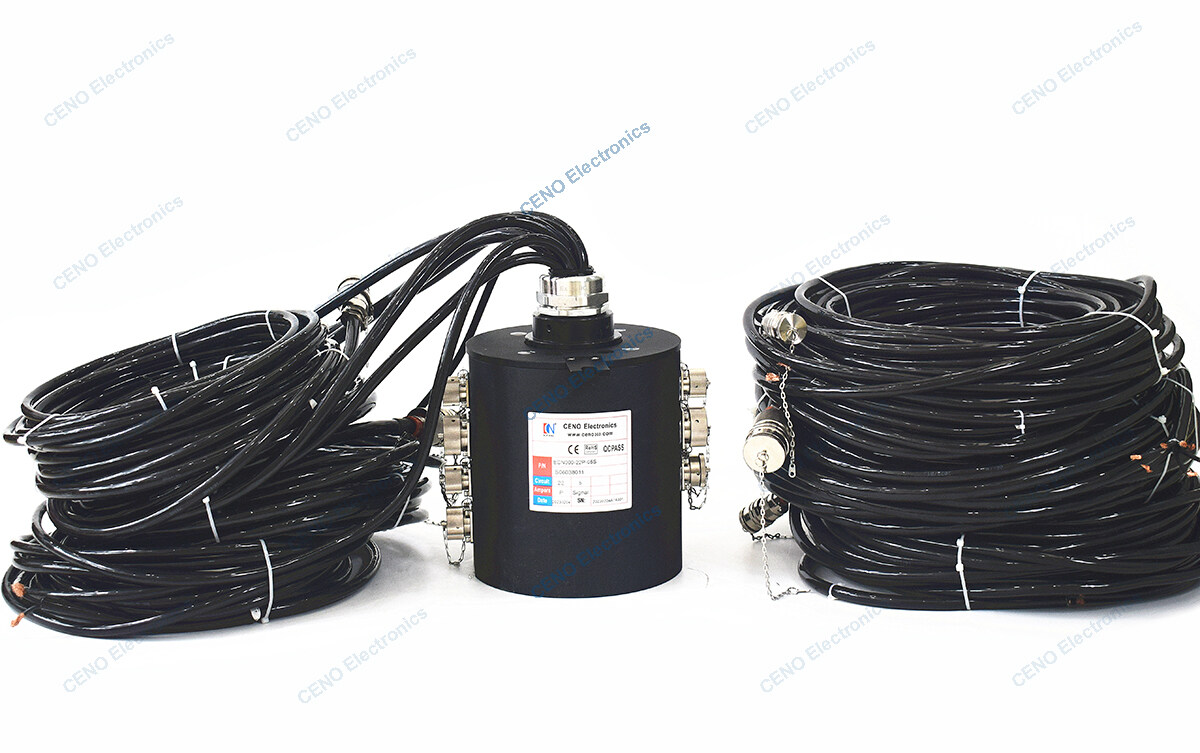

ECN000-22P-05S is low temperature slip ring with Megabit Ethernet signal from CENO Electronics, there are 3 circuits for 13A, 5 circuits for 5A,14 circuits for 14A, 5 circuits for 100M Ethernet signal (Megabit & Gigabit Ethernet signal optional) and one wire PE. It’s working stably at speed of 0~20rpm in temperature of -40°C to +40°C, the external diameter is 190mm and can be customized as different application, due to it’s stable transmission, no packet loss, no loss and ultra-long distance transmission, it’s usually apply to the wire-drawing machine, communication system, turntable test equipment and automatic equipment.
