Miniature Slip Ring Capsules

• Current & Circuits: 4*1A
• Rating Voltage: 110VAC/1A
• Dielectric strength: ≥200VAC@50Hz
• Isolation resistance: ≥50MΩ@100VDC
• Contact resistance: 10mΩ (50rpm)
• Contact material: Precious Metal
• Housing material: Engineering plastic
• Working temperature: -20°C~+60°C
• Working humidity: 60%RH
• IP protection grade: IP40
• Operating speed: 0~100rpm
• Inner diameter: Ø7.1mm
• External diameter: Ø22mm

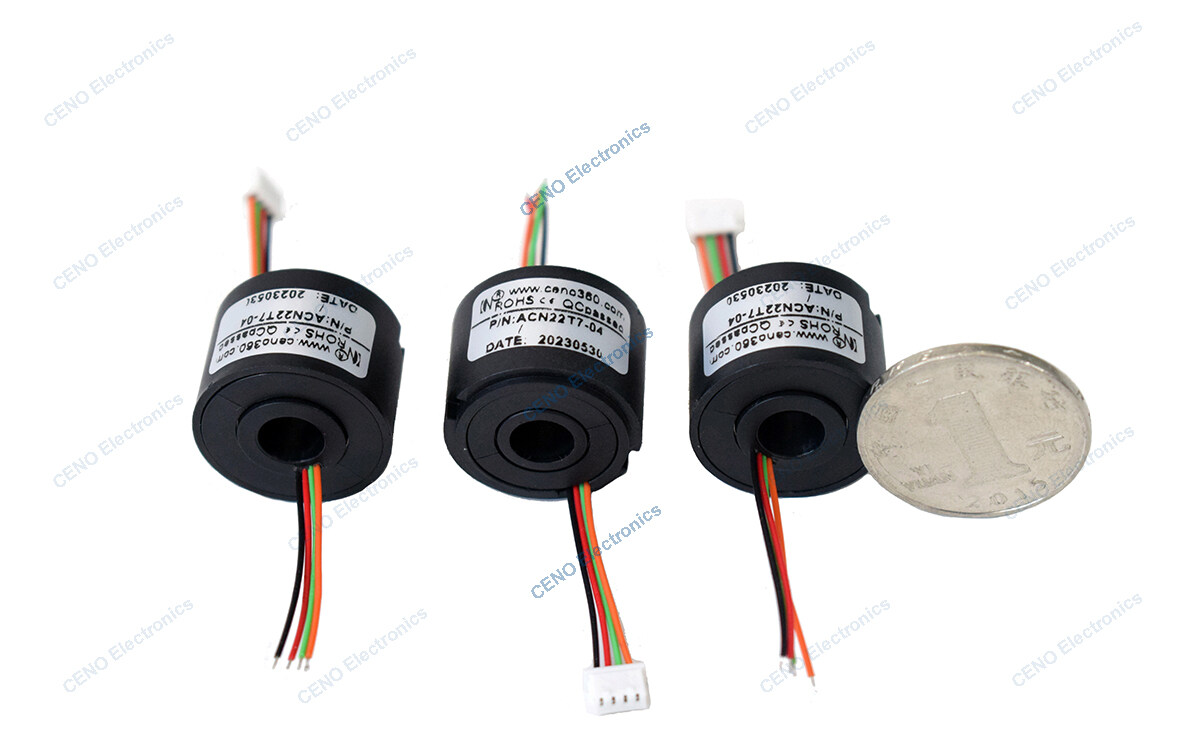

ACN22T7-04 is CENO’s miniature capsule slip ring with non-flange and has inner diameter 7mm, outer diameter 22mm and length 16mm. The Miniature capsule slip ring is specially designed for data and other signals transmission of small and miniature-size equipment. Like as the children intelligent toys, stage light, speed dome camera and drones etc. Capsule slip ring have many features that is small compact structure, low electrical noise, can transmit various data signal and most of the parameters are optional. For more information about how CENO’s slip ring can fit your application, please contact us.
