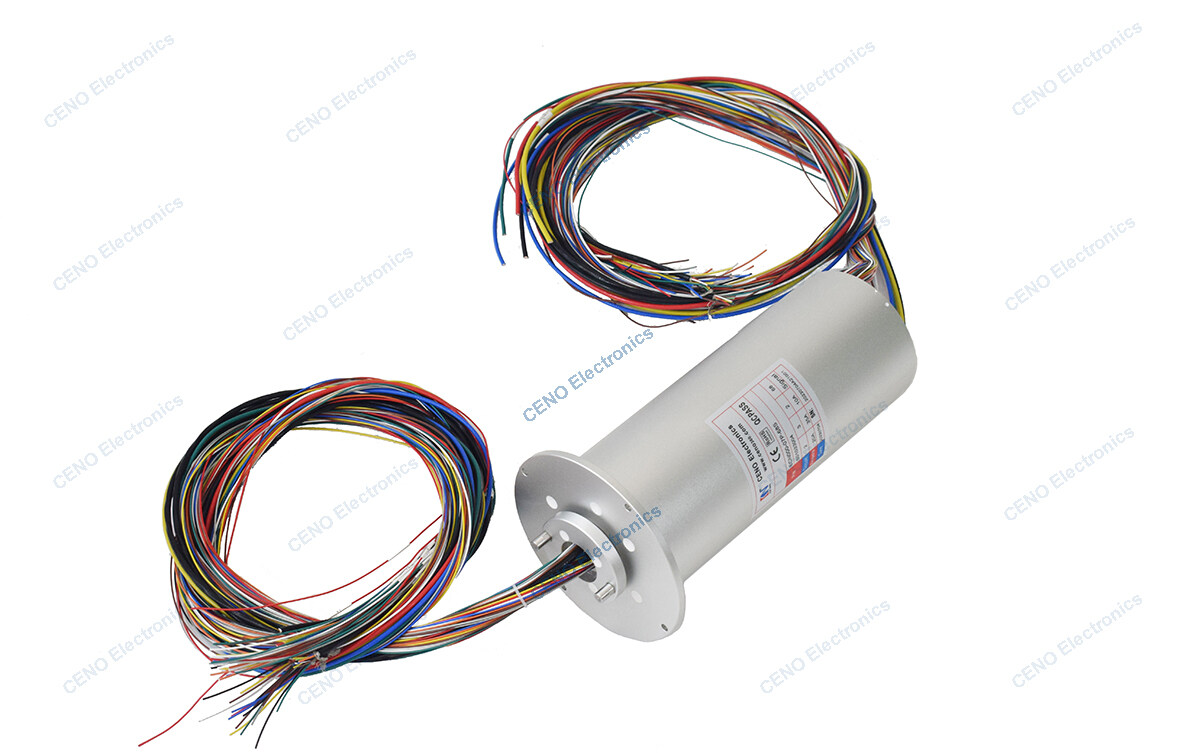

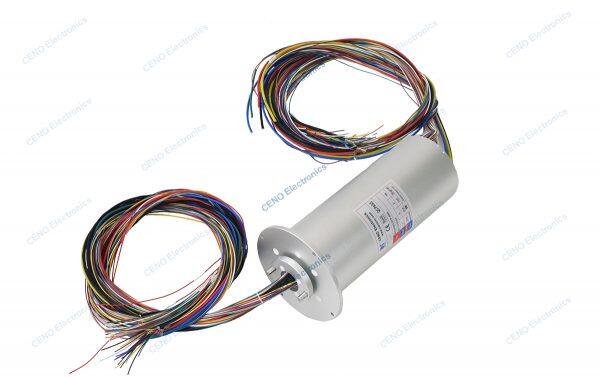

Multi-channels Link Bus Slip Ring

• Current & Circuits: 3*35A; 2*20A; 20*10A; 40*in/out put signal; 2*Link Bus wires; 10*5A (in reserve)
• Rating Voltage: 0~380VAC/VDC
• Dielectric strength: ≥1500VAC@50Hz; ≥300VAC@50Hz
• Isolation resistance: ≥500MΩ@300VDC; ≥100MΩ@300VDC
• Contact resistance: ≤30mΩ (50rpm)
• Contact material: Precious metal
• Housing material: Aluminum Alloy + stainless steel
• Working temperature: -20°C~+60°C
• Working humidity: ≤90%RH
• Protection Grade: IP51
• Operating speed: 0~ 30 rpm
• Lead wire size: AWG 10# 12# 20# Tin coated Teflon® UL; 8 core twisted shielded wire
• Lead wire length: Rotor:1500mm; Stator:1500mm

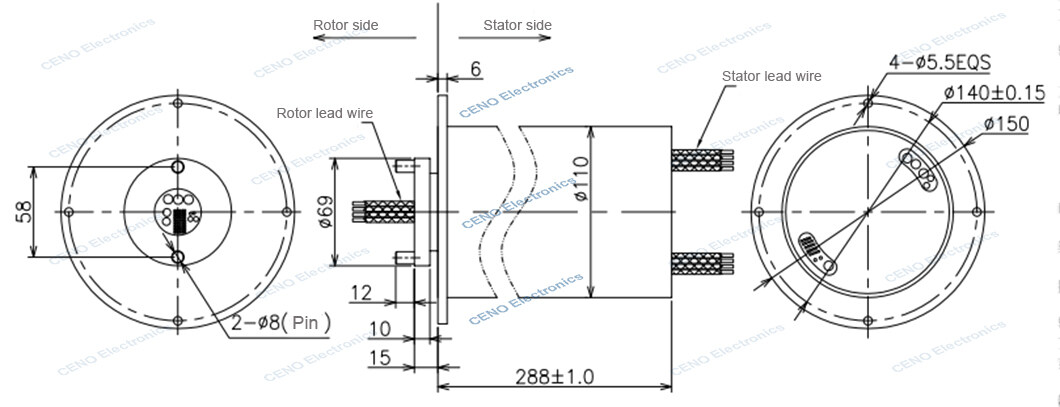

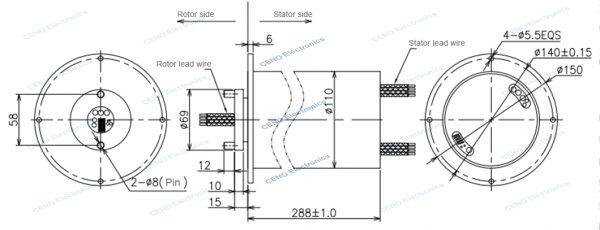

• External diameter: Ø110mm
• Installation way: Flange installation

ECN000-07P-68S is CENO new product multi-channels slip ring with 2 group link bus signal which is designed to solve the digital communication between intelligent instruments and meters, controllers, actuators and other field devices in industrial sites, and the information transmission between these field control devices and advanced control systems. There is no interference between current and signal, and meets the requirements of EMC electromagnetic compatibility. More information please contact us freely.
