Multi-channels Slip Ring

• Current & Circuits: 130 Circuits * signal
• Rating Voltage: 240VAC/DC
• Dielectric strength: ≥500VAC@50Hz(P)
• Isolation resistance: ≥100MΩ@200VDC(P)
• Dynamic resistance fluctuation: ≤5mΩ
• Rotary torque: 0.1N*m
• Lead wire length: Rotor end: 300 ±10mm; Stator end:300 ±10mm
• Operating speed: 0~480rpm
• Contact material: Precious metal
• Housing material: Aluminum alloy
• Working temperature: -20°C~+60°C
• Working humidity: 5% ~ 60%
• Protect grade: IP51

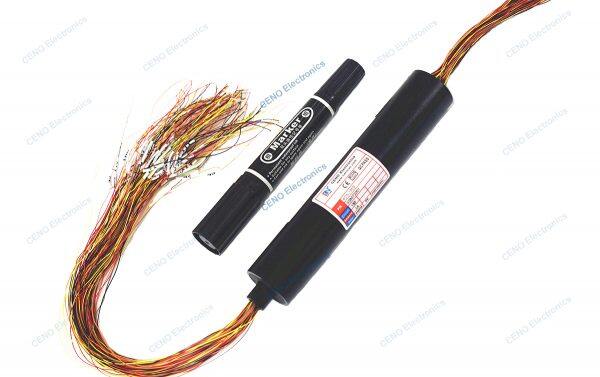

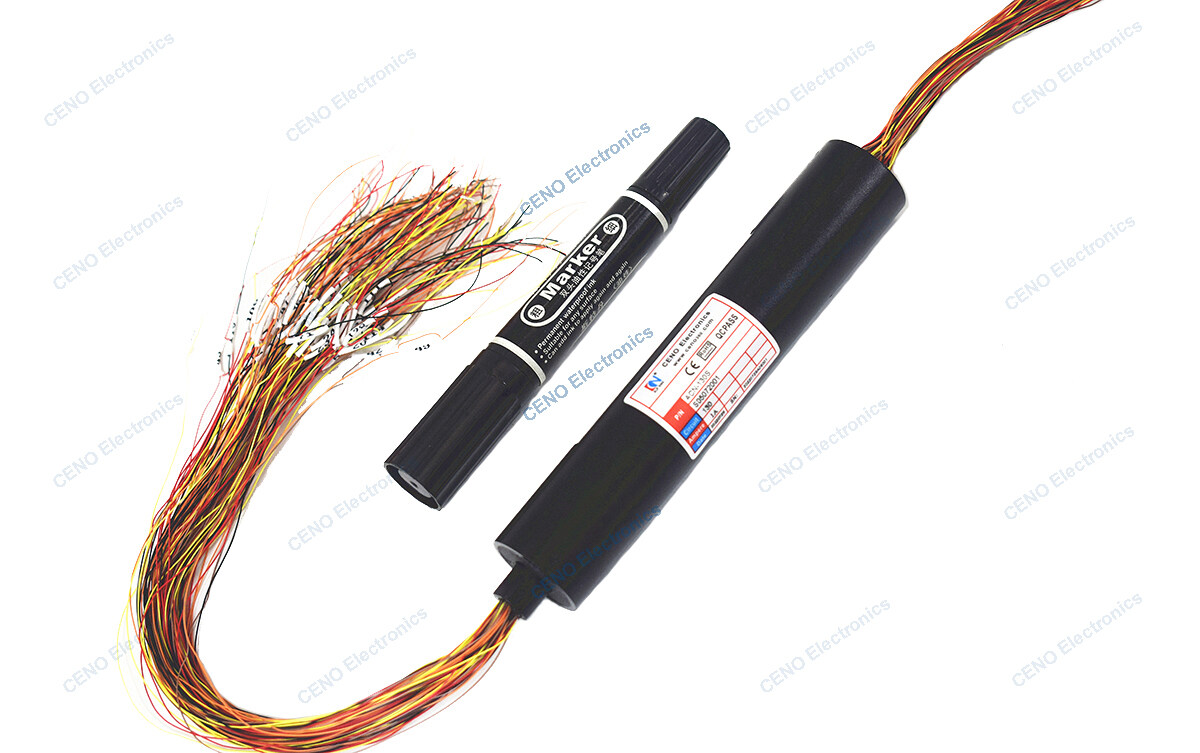

ACN-130S is Multi-channels slip ring with 130 circuits of signal from CENO electrical company. It’s a special slip ring in CENO for there are as many as 500 channels, it also could integrate big or weak current, analog signal, digital signal, even fiber radio frequency or ultrasonic signal. Mainly used on precision equipment, such as in medical equipment, analytical instrument, there are many special features like long lift span, low dynamic resistance fluctuation only 5mΩ and many optional items such as working speed, signal type, circuits number in ACN-130S multi-channels slip ring.
