Multi-channels Slip Rings

• Circuits & Current: 260*2A
• Voltage: 0~240VAC/VDC
• Electrical noise: Max 70mΩ (50rpm)
• Dielectric strength: ≥500V@50Hz
• Isolation resistance: ≥500MΩ@500VDC
• Operating speed: 0-100 rpm
• Contact material: Precious metal
• Housing material: Aluminium alloy
• IP protection grade: IP54
• Installation: Shaft installation
• Through hole size: None

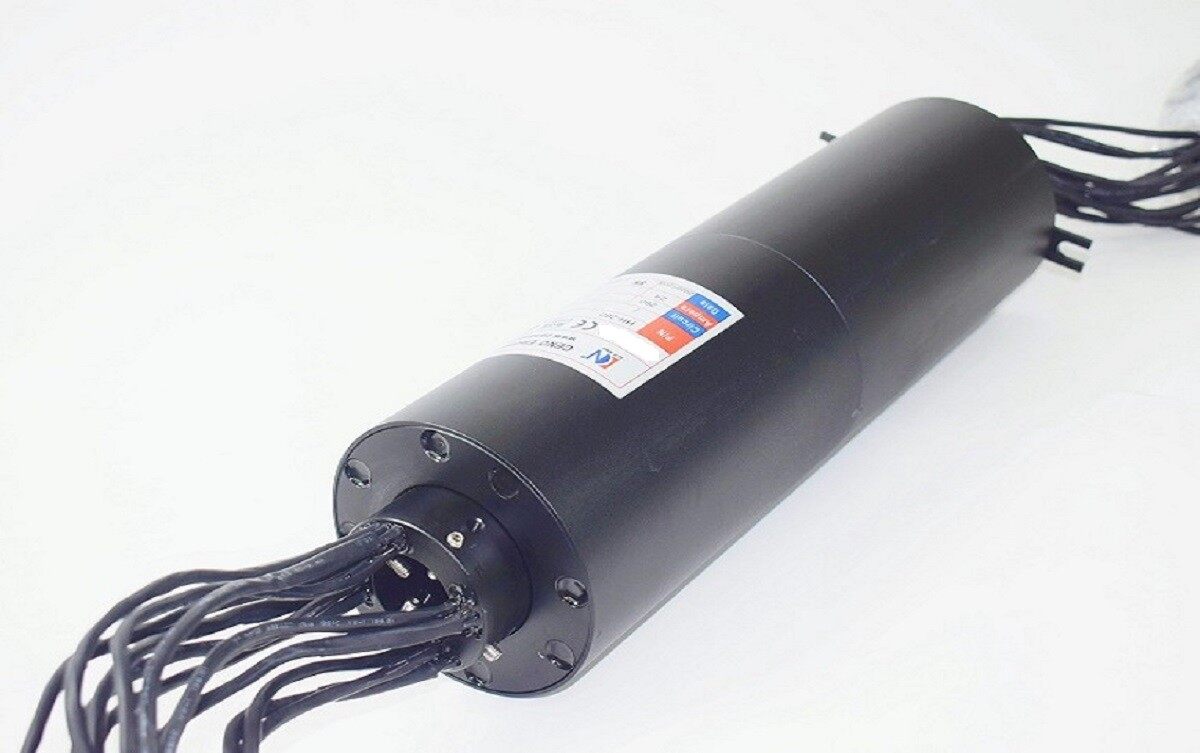

It’s a Multi-Channel slip ring with 260 *2A, small size, light weight, convenient to integrate with power slip ring. It’s also can integrate various signals, fiber optic, HDMI, USB, Ethernet, Canbus, servo signals, no disclose, no EMI, stable transmission. It’s apply to single mode type. Multi mode type also can be achieved. If customer needed, contact materials can be gold-gold. Typical application including Radar system, Marine industrial equipment, Medical equipment, Automatic winding machine, Lithium battery equipment, Industrial automation equipment.
