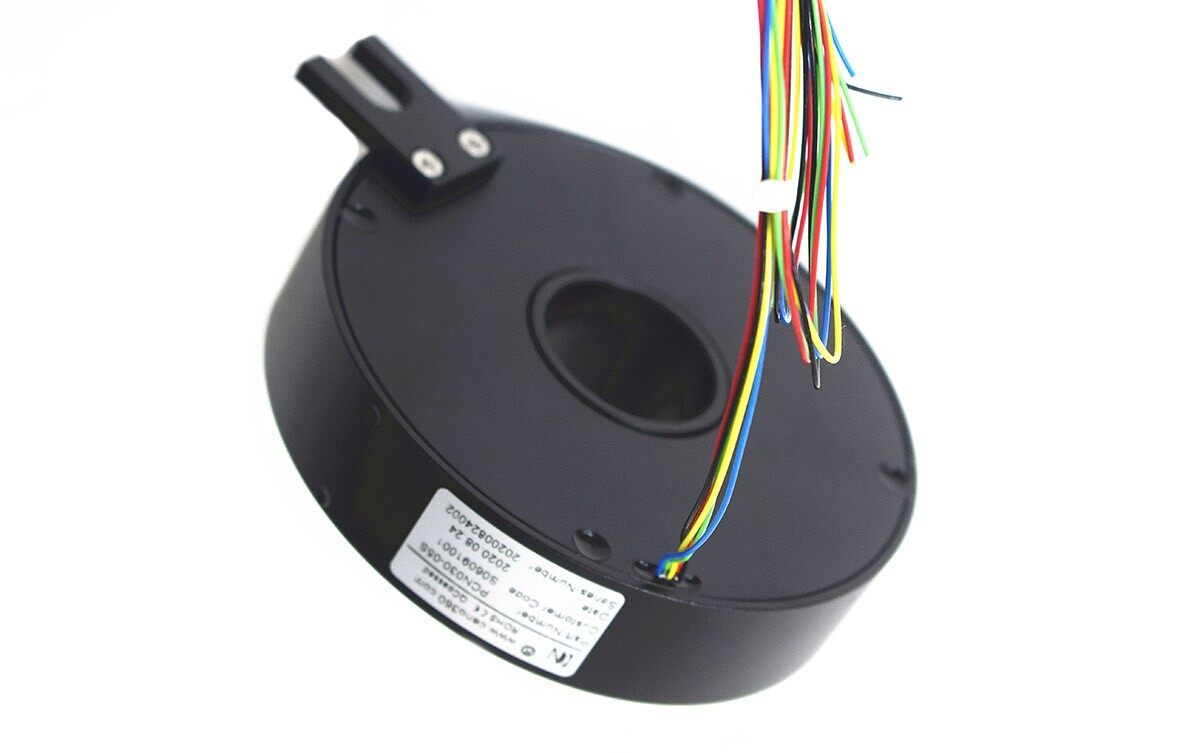

Pancake Slip Ring

• Rings: 5*0.2A
• Voltage: 0~12VAC/VDC
• Electrical noise: ≤70mΩ(50rpm)
• Dielectric strength: ≥300V@50Hz
• Isolation resistance: ≥100MΩ@100VDC
• Operating speed: 0-60 rpm
• Contact material: Gold to gold
• Housing material: Aluminium alloy
• IP protection grade: IP40
• Through hole size: 30 mm

Pancake slip ring is as another form of though hole slip rings.CENO’s pancake slip rings are designed for some equipment which vertical space is limited while horizontal space is less restrictive.This type slip ring provides ultrathin thickness for special limited installation space.Thickness could be up to 4mm.This kind pancake slip ring design with through hole or no hole are optional.
