Pancake Slip Rings

• Current & Circuits: 6*5A; 4*Signal; 1*1000M Ethernet
• Rating Voltage: 0~220VAC/VDC
• Dielectric strength: ≥1500VAC@50Hz; ≥300VAC@50Hz
• Isolation resistance: ≥500MΩ@500VDC;≥100MΩ@100VDC
• Electrical noise: ≤10mΩ (50rpm)
• Operating speed: 0~300rpm
• Contact material: Precious metal
• Housing material: Aluminum alloy
• Working temperature: -20°C~+60°C
• Working humidity: 60%
• IP protection grade: IP51
• Through hole size: Ø12.7mm
• Lead wire size: AWG22# Tin coated Teflon®UL; 4core shielded twisted wire Cat5e
• Lead wire length: Rotor: 1000mm; Stator : 1000mm

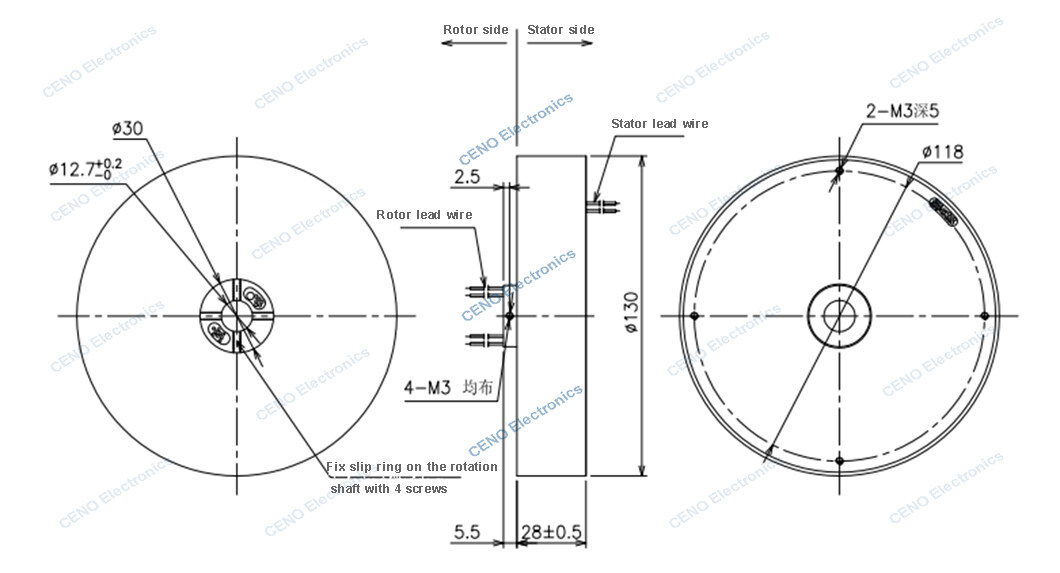

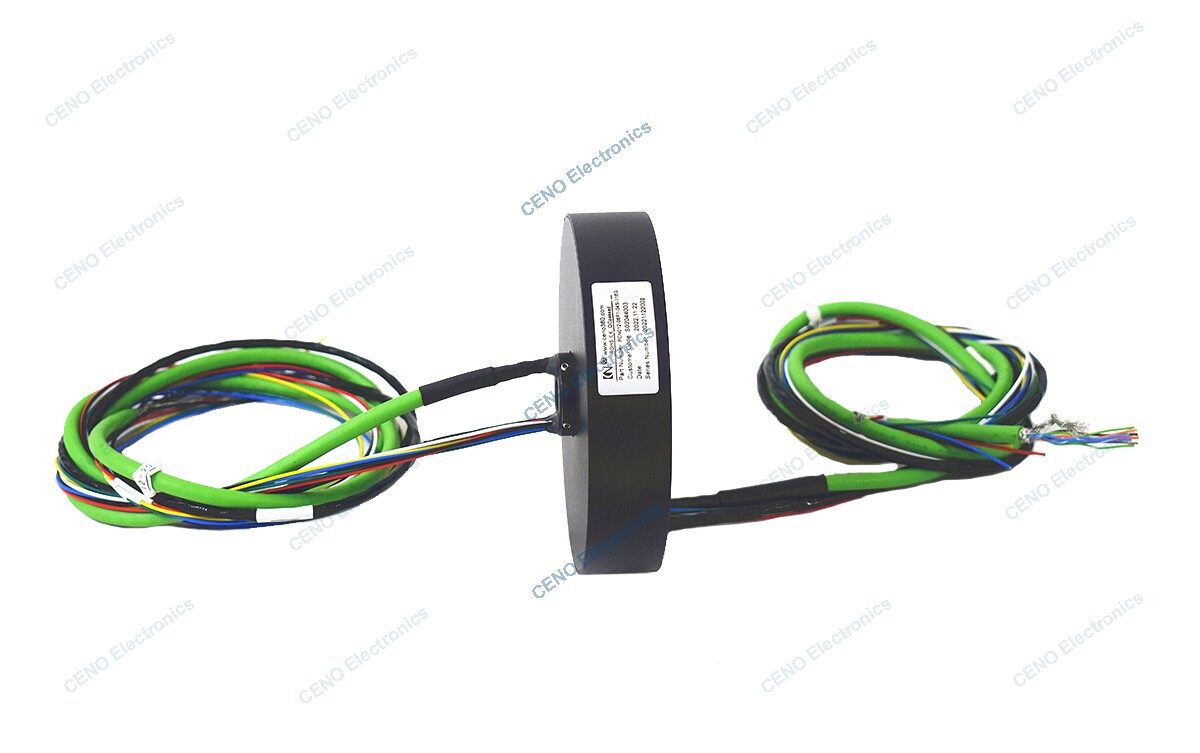

PCN012-06P1-04S-01EG is pancake slip ring with gigabit Ethernet signal for industry application from CENE Electronics, there are6 circuits for 5A electric power, 4 circuits for signal and 1 channel for 1000M Ethernet signal. Pancake slip ring is similar to the through hole slip ring and is specially used for the rotating system without enough height. Also called flat slip ring, flat disc electrical slip ring or platter slip ring. Due to it’s separate components or integrated assemblies and long working life, often apply to the Military equipment, Electric devices, Medical facility and Industrial machinery etc.
