Pancake Slip Rings

• Current & Circuits: 2*10A; 2*1A; 2*100M Ethernet
• Rating Voltage: 0-220VAC/VDC
• Dielectric strength: ≥500VAC@50Hz; ≥100VAC@50Hz
• Isolation resistance: ≥100MΩ@500VDC; ≥10MΩ@100VDC
• Contact resistance: 50mΩ (50rpm)
• Contact material: Precious Metal
• Housing material: Aluminum Alloy
• Working temperature: -40°C~+60°C
• Working humidity: 60 %RH
• IP protection grade: IP51
• Operating speed: 0~300rpm
• Lead wire size: AWG17# 24# Tin coated Teflon® UL CAT5e
• Lead wire length: Rotor : 300mm; Stator : 300mm
• Outer diameter: Ø88mm
• Rotation Way: Flange installation

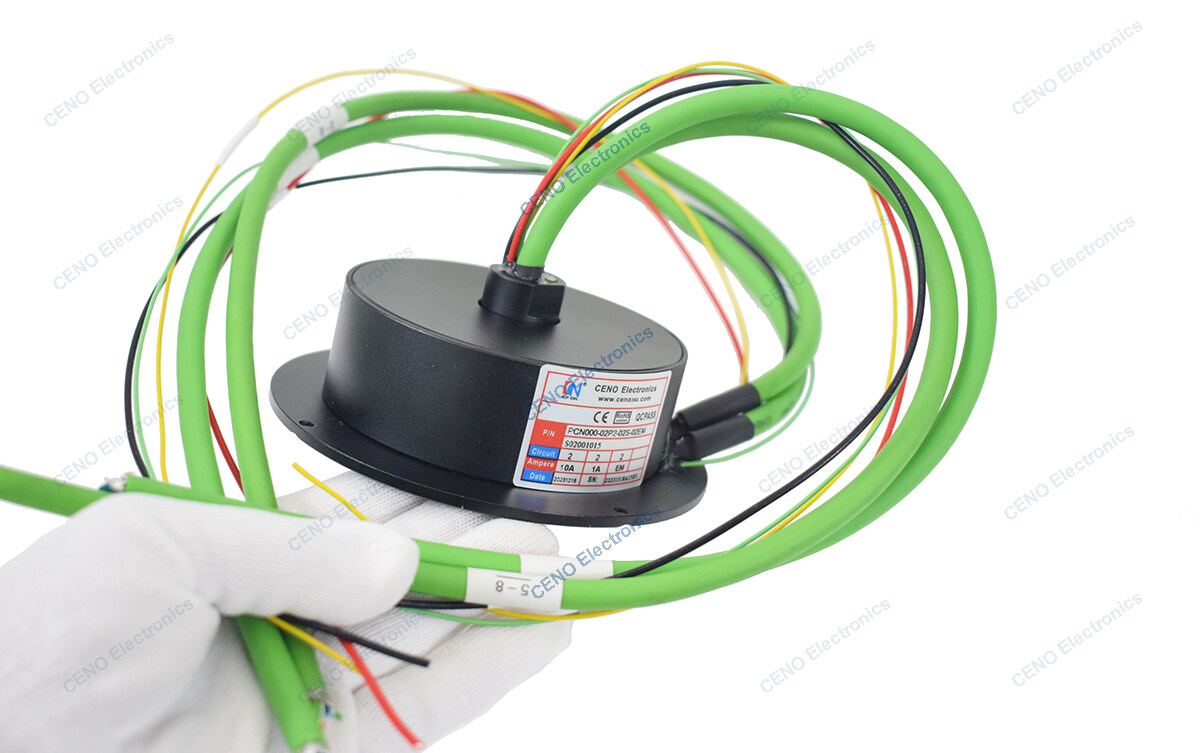

PCN000-02P2-02S-02EM is CENO new customized pancake slip ring with circuits of 10A electric power, 1A signal and 2group of 100M Ethernet. Pancake slip ring is designed specially for the rotary system where is height limit in the vertical direction, there are two kinds of slip ring called one-in-all pancake slip ring and separate pancake slip ring in this product system. One-in-all pancake slip ring can be designed to solid or hollow shaft with different dimension for different applications, more information please contact us.
