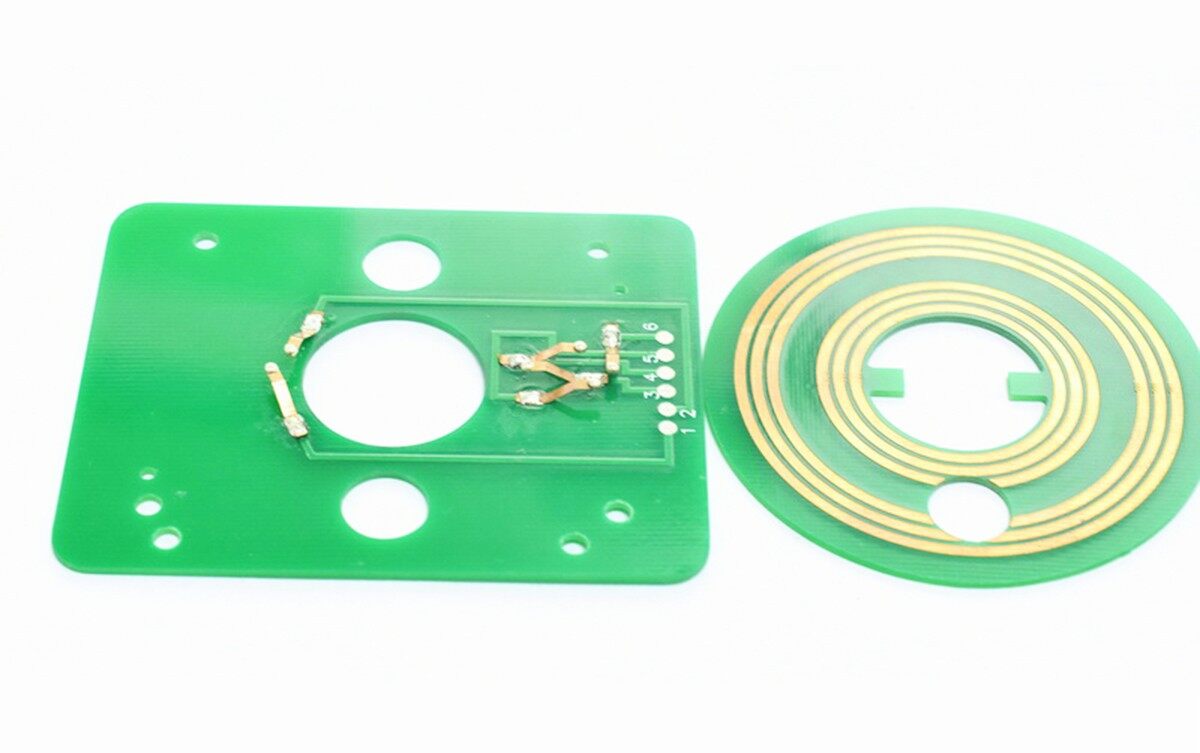

PCBA Separate Slip Rings

• Circuit & Current: 6*1A
• Working Speed: 0~100rpm
• Isolation Resistance: 300MΩ@500VDC
• Dielectric Strength: ≥100VAC@50Hz
• Working Humidity: 60%RH
• Working temperature: ‐30℃~+80℃
• Contact Resistance Fluctuation: ≤10mΩ(base on 50rpm)
• Protection Grade: IP00
• Rating Voltage: 380VAC
• Contact Material: Precious metal
• Lead Wire Size: AWG28#Tin‐plated Teflon®UL
• Through Diameter: Ø22mm
• Housing Material: PCB(FR‐4)
• Install Way: Fixed by screw

Separate pancake slip ring belongs to pancake series slip ring. Its outline is different from the integrated pancake slip ring due to the separate structure.It is usually to be required on certain installation space which has no more height room, but normally the the rotation speed is not too fast, like lower than 100RPM. However, CENO also designed some type of separate slip ring for some high speed what higher than 100RPM.
