Platter Carbon Brush Slip Ring

• Circuits & Current: 4 circuits * 3A
• Voltage: 380 VAC
• Dielectric strength: ≥1000VAC@50Hz
• Isolate resistance: ≥500MΩ@500VDC
• Contact resistance wow: 30mΩ (50rpm)
• Humidity: 60%RH
• Working temperature: -20°C~+80°C
• IP Grade: IP00
• Working speed: 0~300rpm
• Contact material: Precious metal
• Housing material: Aluminum Alloy
• Inner diameter: Ø50mmLead wire sizeAWG22# Tin coated Teflon® UL
• Lead wire length: Rotor: 300mm; Stator: 300mm

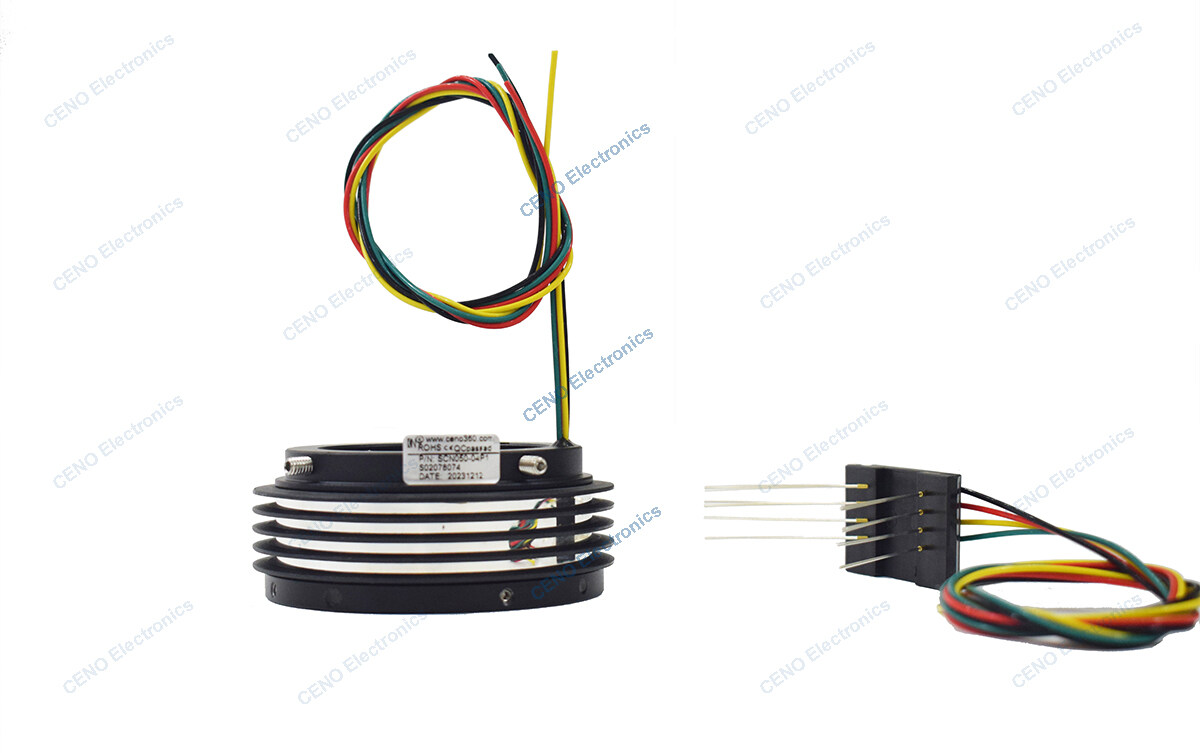

SCN050-04P1 is CENO Medical platter slip ring with inner bore Ø50mm. CENO have series power slip ring, platter slip ring also named two half slip ring is one of them, which have two separate components rotor and contact brushes. Rotor side can be designed with through hole and 3mm-60mm optional for installing main shaft easily in limited space. or non through hole design according to customer special request. For more information about how CENO slip ring fit your request, please contact us.
