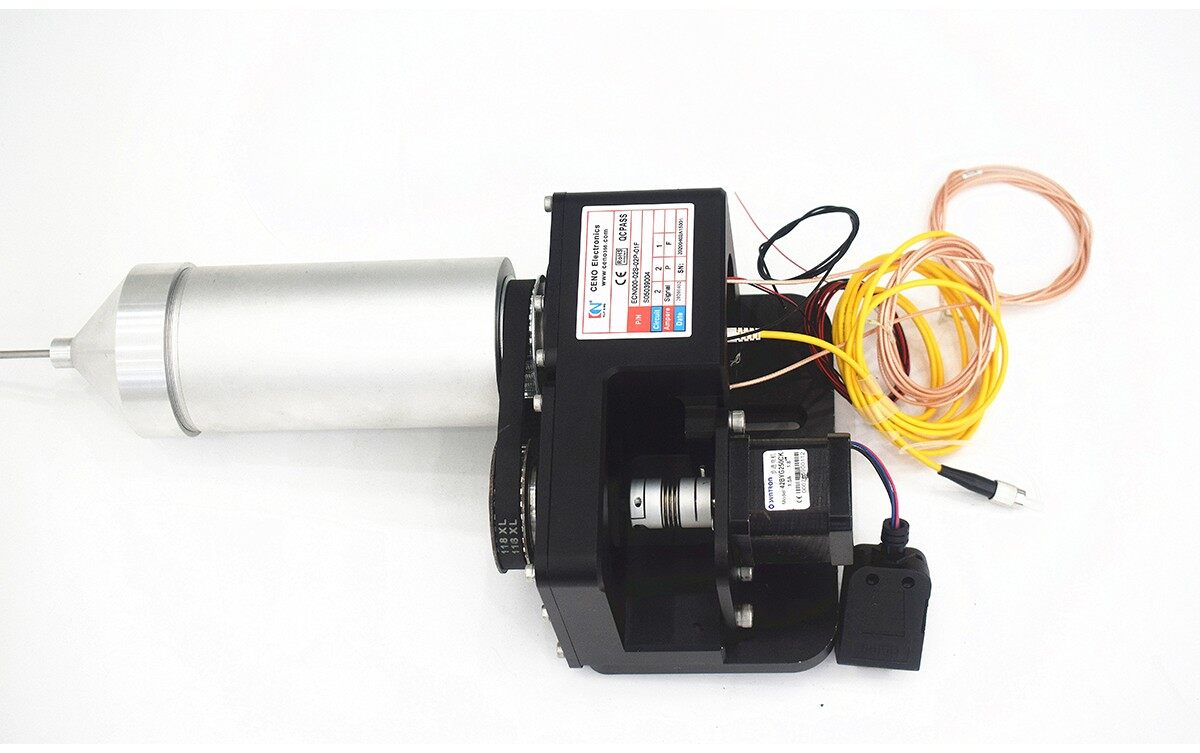

Power Signal + Fiber Optic Rotary Joint Slip Rings

• Circuits & Current: 1*high frequency signal, 1*pulse signal,1*Fiber, 2*2A
• Rating voltage: 0~240VAC/VDC
• Resistance insulation: 100 MΩ@100VDC
• Dielectric strength: ≥500V@50Hz
• Electrical noise: ≤ 70 mΩ
• Rotating speed: 0-160rpm
• Contact material: precious metal

Fiber Parameters

• Fiber type: SMF28
• Channel number: 1
• Connector type: FC/APC
• Wavelength: 1310nm
• Fiber working speed: 0~3000rpm

Fiber Optical Rotary Joint (FORJ) for contactless high-speed data transmission. Fiber Optic slip ring also called Fiber-Electric slip ring, Fiber Optic Rotary Joint. Adopt fiber to transmit signal, used to any devices to transmit electricity and Fiber signal when 360° rotating, such as HD video transmission system, microwave communication, medical equipment, sensor signal measurement, radar and video monitoring system.
