Power Signal + RF Integrate Slip Rings

• Circuits & Current: 4*15A, 4*RS, 2x100Mbps,3xRF 12GHz
• Voltage: 0~240VAC / 24VDC
• Electrical noise: Max 30mΩ (50rpm)
• Dielectric strength: ≥1000V@50Hz; ≥1000V@50Hz
• Isolation resistance: ≥500MΩ@300VDC; ≥100MΩ@300VDC
• Operating speed: 0-100 rpm
• Contact material: Precious metal
• Housing material: Aluminium alloy
• IP protection grade: IP51
• Mounting way: Flange

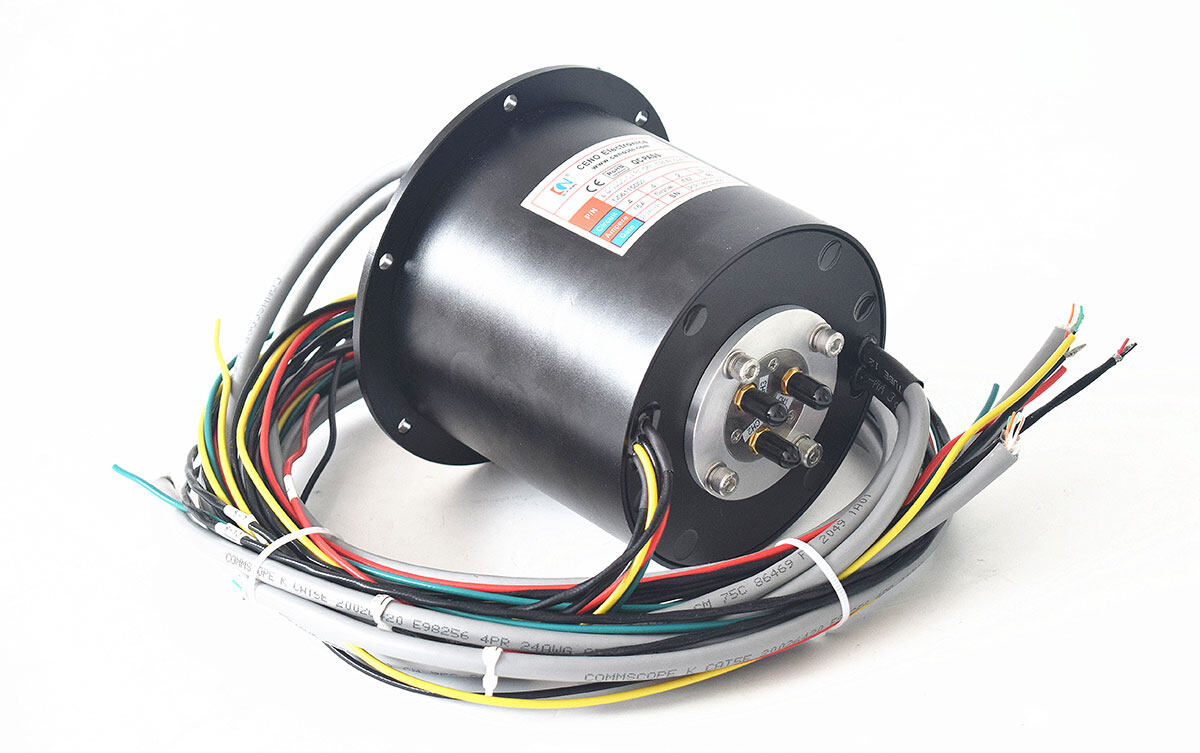

This is one hybrid slip ring which includes electrical channel, Ethernet channel and RF channels. There is no interference between each signal and power passage based on CENO specific design for the construction of the slip ring. The Ethernet transmitting is stable without data loss. RF channel with frequency up to 12GHz. Such multi signals combination design has advantage with reliable performance, no crosstalk. Typical applications are rotary table, traffic control system, surveillance, offshore cable reel. CENO accepts any customized spec according to different demands.
