Power Signal + RF Integrate Slip Rings

• Current & Circuits: 30 circuits * 2A
• Rating Voltage: 0~240VAC/DC
• Dielectric strength: ≥500VAC@50Hz (P)
• Isolation resistance: ≥100MQ@500VDC;
• Dynamic resistance fluctuation value: ≤15mΩ
• Working speed: 80rpm
• Contact material: Gold to Gold
• Housing material: Aluminum Alloy
• Cable size: RG316
• Lead wire length: Stator-250±5mm; Rotor-250±5mm
• Housing Material: Brass
• Contact Material: Precious Metal
• Working temperature: -40°C~+80°C
• Working humidity: 60%below
• IP protection grade: IP40

Coaxial Parameter

• Frequency range: DC-3GHz / DC-1.5GHz
• VSWR,max: 1.6@0-3GHzSpecific impedance50Ω / 75Ω
• Insertion Loss: <1.5dB / < 3dB
• Insertion Loss wow: <0.1dB
• VSWR: <1.6
• VSWR-WOW: <0.1
• Insertion Loss – wow: ＜1°

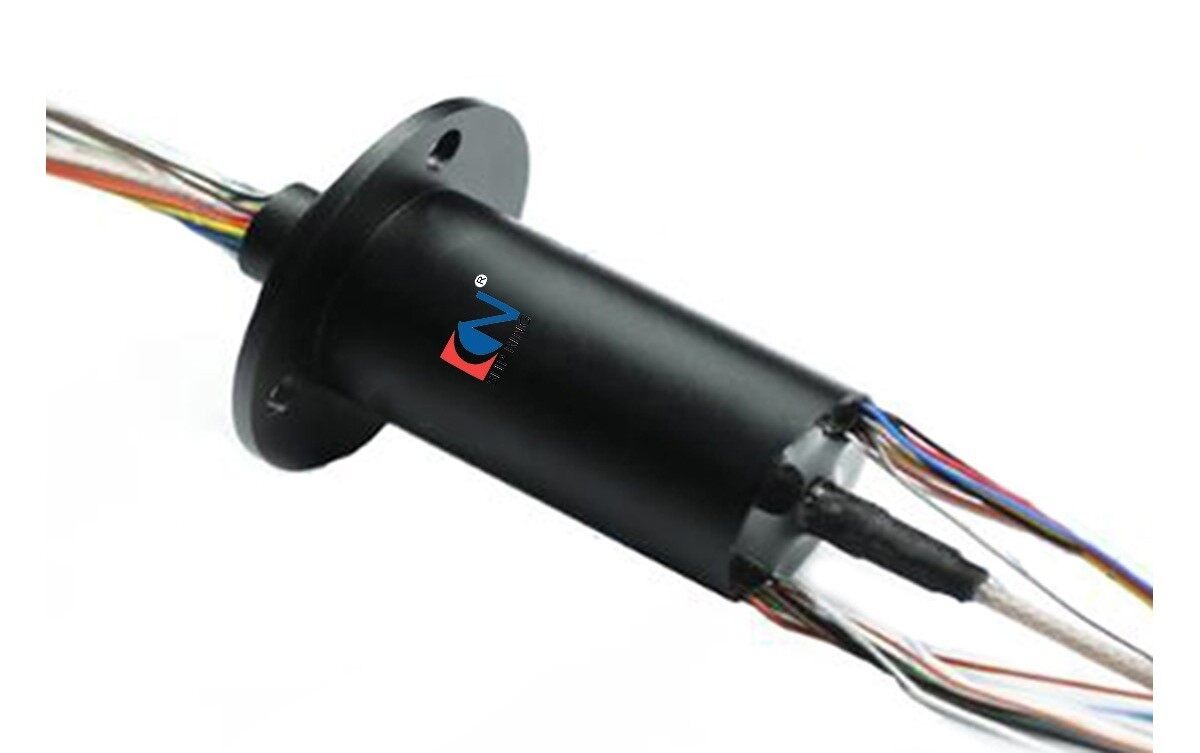

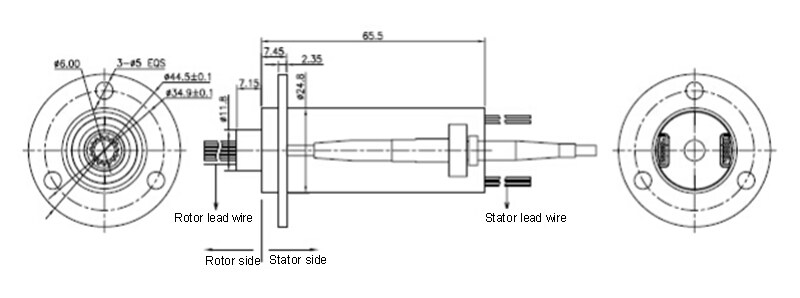

ACN24-1R30P1 is an integrated capsule slip ring with external diameter of 24.8mm and length of 65.5mm from CENO company. It can be divided into two kinds, single channel & multi channel high frequency two slip ring. There are 30 circuits for 2A with rating voltage 0-240VAC/DC, 1channel for high-frequency coaxial connector and it can be made into elbow or straight head to fit in different platform.due to it’s compact design and low torque, the capsule slip ring mainly used in High definition video surveillance, process control system, video monitoring system or Radar antenna.
