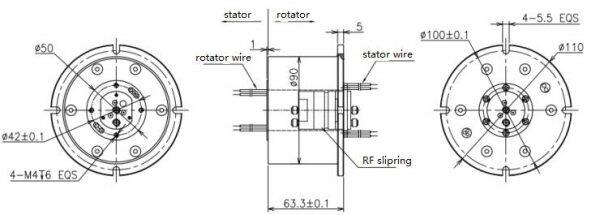

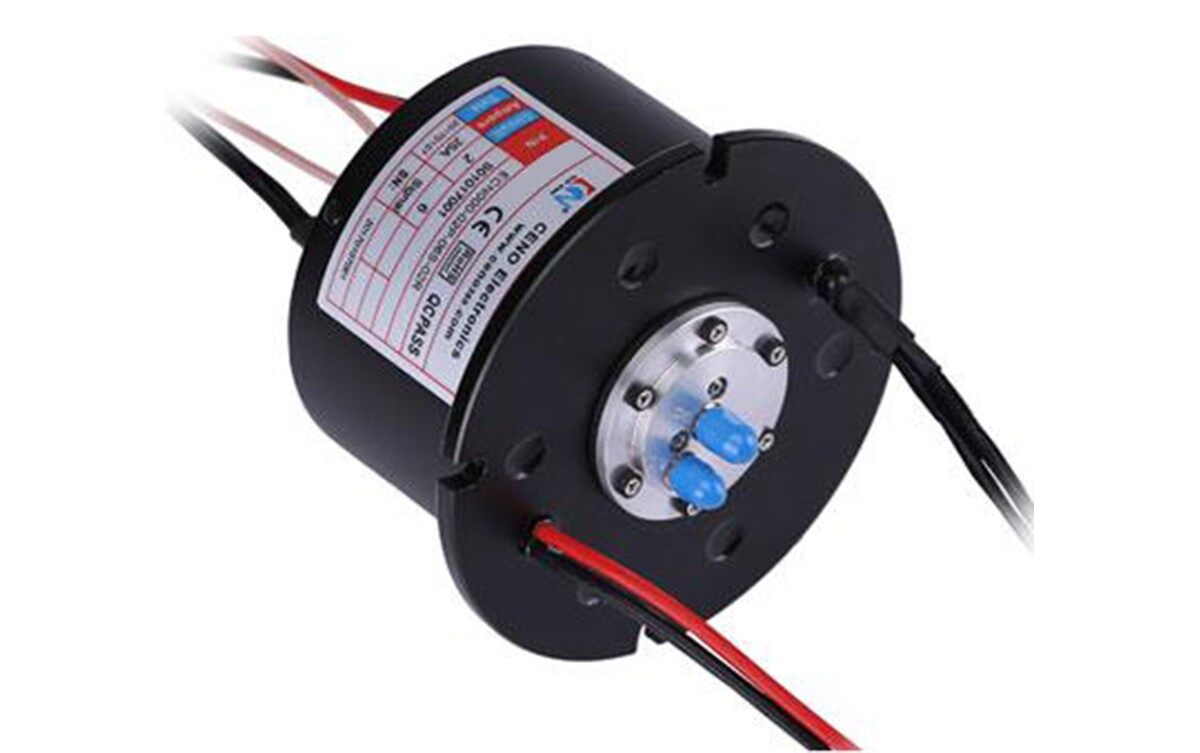

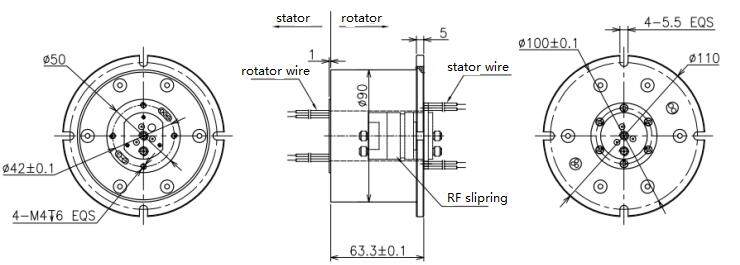

Power Signal + RF Integrate Slip Rings

• Current: 2* 25A,6*signal
• Voltage: 48VAC
• Isolation resistance: 300MΩ@300VDC
• Dielectric strength: ≥300V@50hz; ≥200 V@50hz
• Electrical noise: ≤70mΩ (50rpm)
• Operating speed: 0~50 rpm
• Contact material: Precious metals
• Operating temperature: -40℃~+80℃

RF Parameters

• RF Channel number: 2
• Frequency range: DC-5GHz
• Insert lost and changing: ≤0.25dB(0.05); ≤0.3dB(0.15)
• Interface type: 3.5mm-f SMA(50Ω)

RF rotary joint design adopts the principle of skin effect of high frequency signal and the structure simulation of coaxial cable. To ensure RF rotary joint with the high frequency signal low damage and reliable transmission, CENO uses import high elastic wear-resisting material in the internal key contact point of the RF rotary joint and do special plating in the surface for it. It is a connector device to transmit high frequency signal from the static to rotating part.
