Power Signal + RF Slip Rings

• Current: 4*6A,40*2A,2*RF signal
• Voltage: 0~240VAC/VDC
• Electrical noise: ≤35mΩ(50rpm)
• Dielectric strength: ≥500V@50Hz; ≥100V@50Hz
• Isolation resistance: ≥100MΩ@500VDC;≥10MΩ@100VDC
• Operating speed: 0-50 rpm
• Contact material: Precious metals

RF Parameters

• RF connector: SMA-J/SMA-J
• Frequency range: 930-1750 MHz
• Isolation20 dB

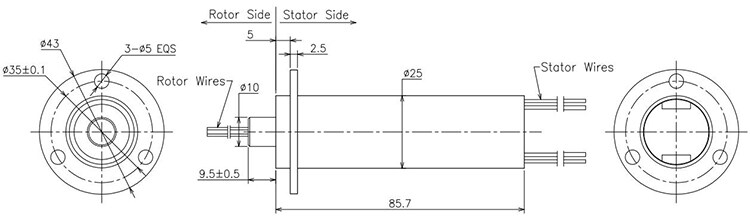

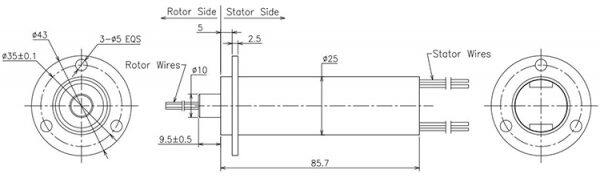

This is compact size capsule slip ring, it integrates 2 circuits RF signal, with RG178 coaxial cable. RF high frequency/microwave coaxial rotary joint is used in the 360° continuous rotation devices to transfer DC~80GHz high frequency signals. Application for satellite Antenna, vehicle, radar, Microwave antenna test etc.
