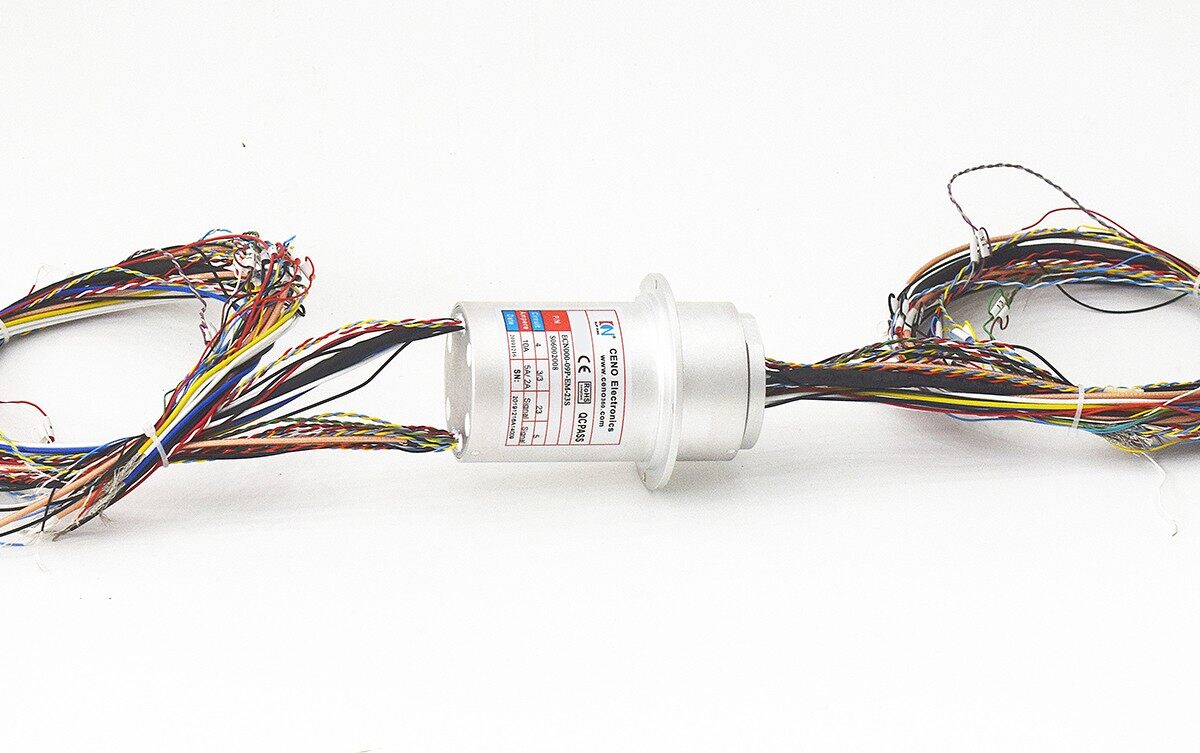

Profi-net Slip Rings

• Circuits & Current: 4*10A, 3*5A, 3*2A(1*2A*PE), 23*signal, 1*1A, 2*1A, 1*100M Ethernet
• Voltage: 24VDC
• Electrical noise: ≤70mΩ(50rpm)
• Dielectric strength: ≥500V@50Hz; ≥300V@50Hz
• Insulation resistance: 500MΩ@300VDC; 100MΩ@300VDC
• Operating speed: 0-300 rpm
• Contact material: precious metals
• Operating temperature: -40~+70℃
• Housing material: aluminum alloy
• IP protection grade: IP54

CENO has developed signal slip ring with 100M/1000M Ethernet signal character base on market requirement. The Ethernet slip ring comply with EMC compatibility and meet the requirement of Signal impedance matching, to make sure transmission low loss, no error code, long distance transmission.
