Profi-net Slip Rings

• Current & Circuits: 2*20A; 2*30A; 2*5A; 1*RS232 Signal 1*Profinet
• Rating Voltage: 0~480VAC/VDC
• Dielectric strength: ≥300VAC@50Hz
• Isolation resistance: ≥100MΩ@300VDC
• Contact material: Precious metal / Gold to Gold
• Housing material: Aluminum Alloy
• Working temperature: -20°C~+60°C
• Working humidity: 60 %RH
• IP grade: IP50
• Operating speed: 0~300rpm
• Lead wire size: AW12# 22# Wire Teflon® UL; Two-core twisted shielded wires CAT5e + RJ45 (male)
• Lead wire length: Rotor : 2000mm Stator : 2000mm

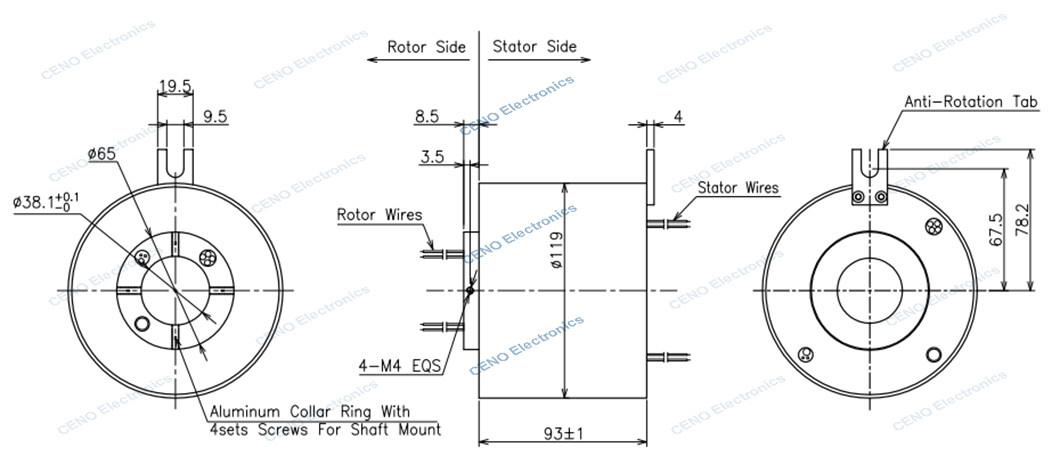

• Inner diameter: Ø38.1mm
• Rotation way: Fix up stator side with anti-rotation side shaft drives rotor running

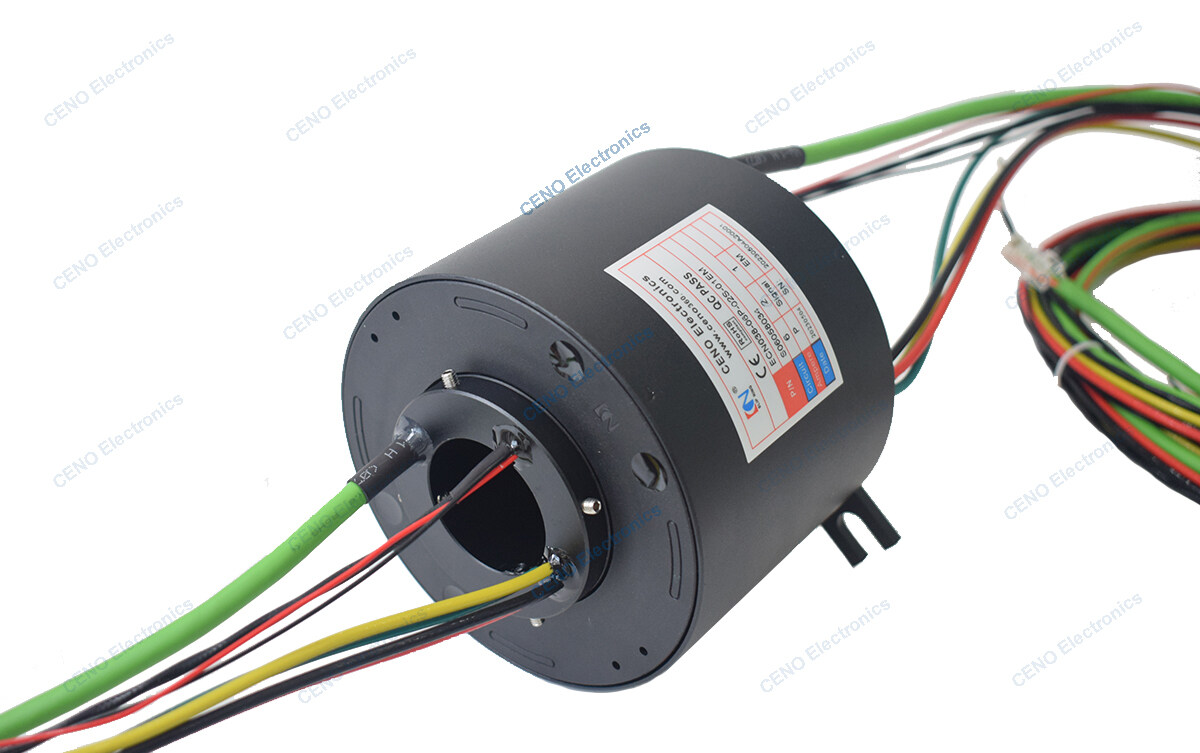

ECN038-06P-02S-01EM is one new design PROFINET Slip Ring with through hole ID38mm for Industrial automation system application from CENO Electronics. PROFINET is a standard for industrial automation using a computer network, and uses standards such as TCP/IP and Ethernet. CENO design and combine the PROFINET signal and Electrical Power into this slip ring, which can transmit various RS, NET and profinet signal stably at the same time, there’s no string code, low loss and no packet loss etc. It can be integrated many data and signal as customer different applications. For more information about how to design for your working environment, please contact us.
