PSCN046-04P1-01U2 PCB Slip Ring

• Current & Circuits: 4 circuits * 3A; 1 Group * USB2.0 Signal
• Rating Voltage: 0~24VAC / VDC
• Dielectric strength: ≥ 300VAC@50Hz
• Isolation resistance: ≥ 100MΩ@100VDC
• Electrical Noise: ≤ 70mΩ (50rpm)
• IP Grade: IP00
• Working humidity: ≤ 60%
• Working temperature: -20℃ ~ +60℃
• Inner diameter: Ø 46mm
• Operating speed: 0~300 rpm

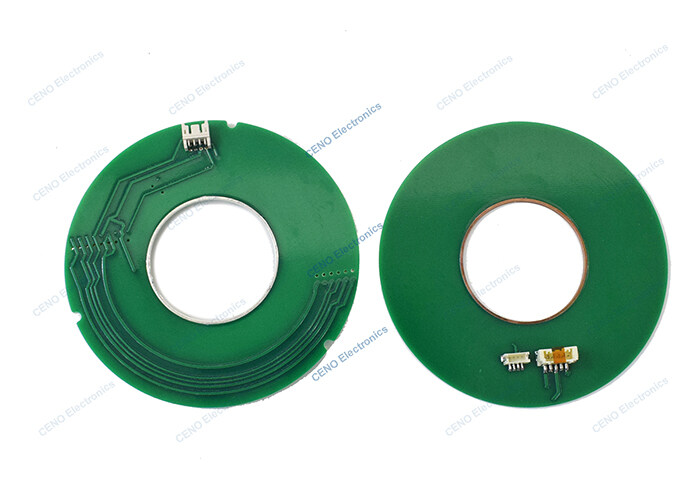

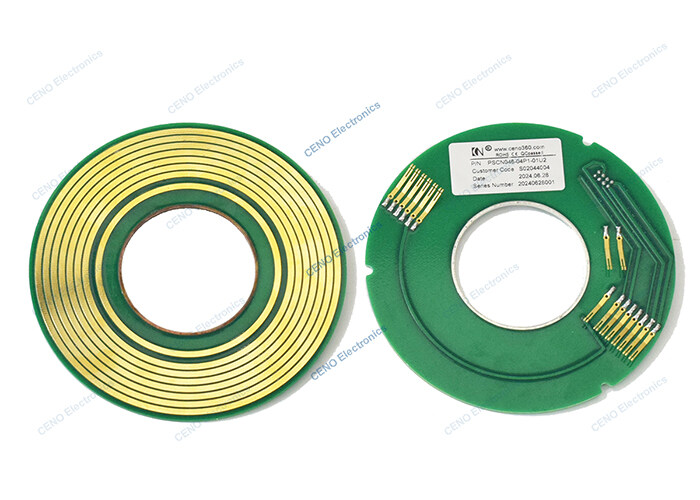

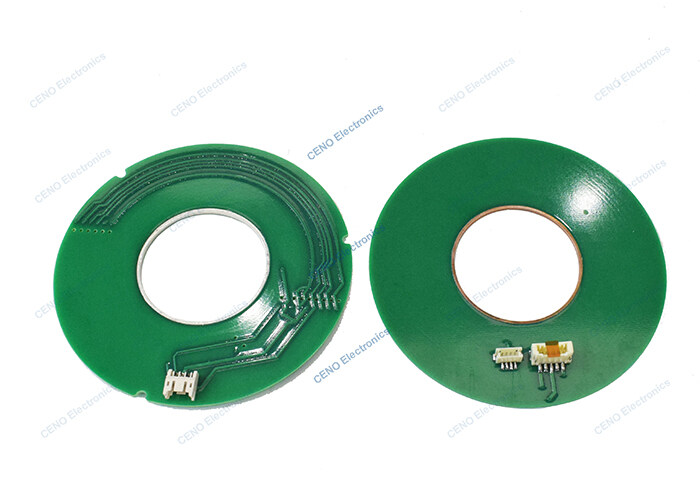

PSCN046-04P1-01U2 is CENO new PCB slip ring with 4 circuits 3A Electric power &1 group USB2.0 signal for the industrial machinery. PCB slip ring is a kind of pancake slip ring, also called ultra thin flat slip ring, common form made up of two parts rings surface and brush assembly, have high hardness & wear resistance feature due to it’s ultra-thick copper layer & hard gold plating. PCB slip ring specially designed for rotating systems with height restrictions in the vertical direction. More information please contact us.

Features

• Through hole 0-600mm option
• Thickness 6-51mm option
• Working speed 0~500rpm
• Can integrate kinds signal &data
• Install easy & Free maintenance

Applications

• Industry machinery
• LED Industry
• Process control equipment
• Textile robots
• Medical equipment

Optional

• Center hole size & OD size
• Circuits, Current & Voltage
• Working speed
• Lead wire size & length
• Integrate signal or data
