Radio frequency rotary joint with capsule

• Current & Circuits: 36*2A
• Rating Voltage: 0~240VAC/DC
• Dielectric strength: ≥500VAC@50Hz; ≥100VAC@50Hz
• Isolation resistance: ≥100MQ@500VDC; ≥10MQ@100VDC
• Dynamic resistance fluctuation value: ≤35MΩ
• Working Speed: 0~80rpm
• Contact material: Gold to Gold
• Housing material: Aluminum Alloy
• Lead wire length: Stator-250±5mm; Rotor-250±5mm
• Working temperature: -40°C~+80°C
• Working humidity: 60% below
• IP protection grade: IP40

Coaxial Parameter

• Frequency range: DC-3GHzVSWR, max1.6@0-3GHz
• Specific Impedance: 50ΩInsertion Loss<2.0dB
• Insertion Loss wow: <0.1dBVSWR<1.6VSWR-WOW<0.1
• Insertion Loss WOW: <1°Frequency range0~3GHz
• Housing Material: Brass
• Contact Material: Precious Metal
• Cable size: RG316
• Cable Length: Rotor – 250±5mm；Stator – 250±5mm

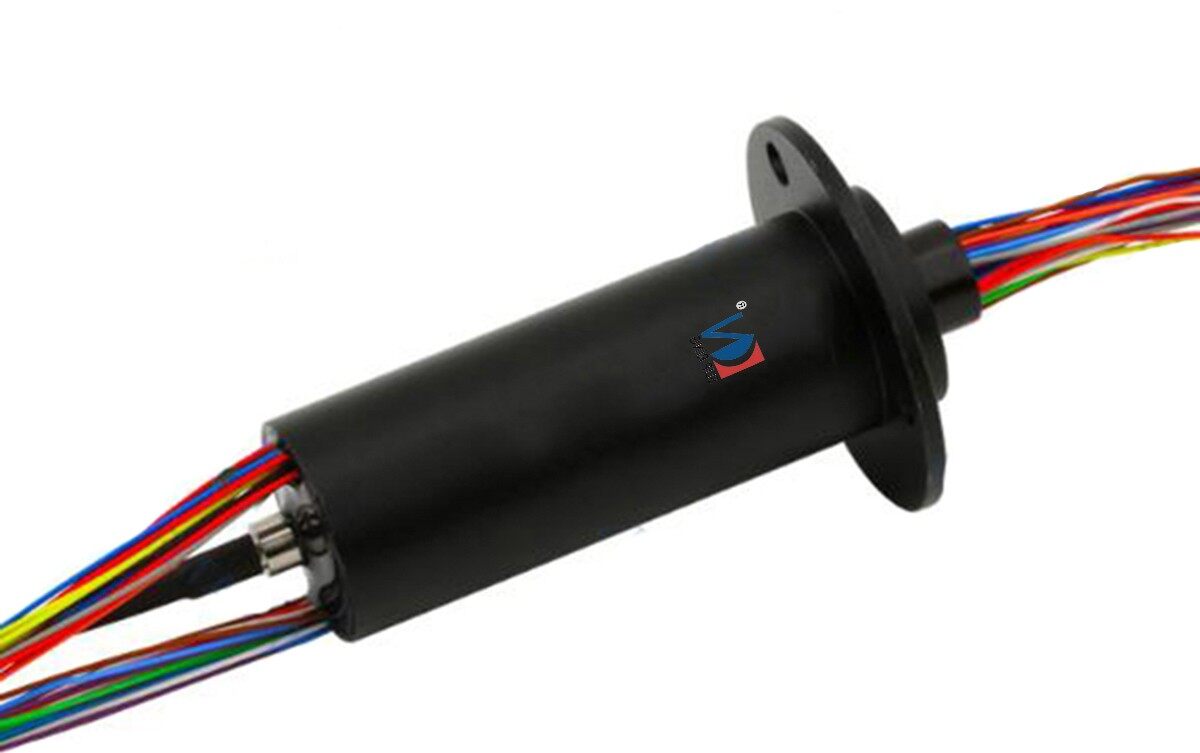

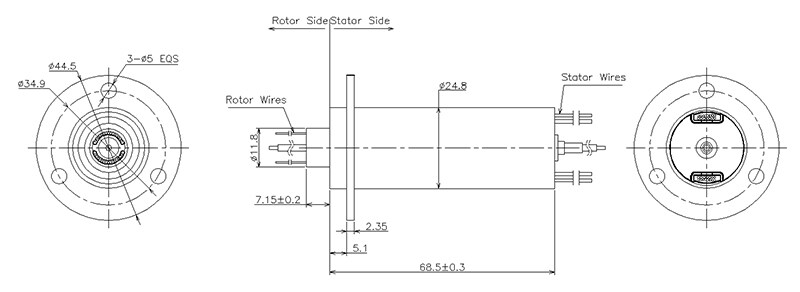

ACN24-1R36P1 is an integrated capsule slip ring with external diameter of 24.8mm and length of 68.5mm from CENO company. It can be divided into two kinds, single channel & multi channel high frequency two slip ring. There are 36 circuits for 2A with rating voltage 0-240VAC/DC, 1channel for high-frequency coaxial connector and it can be made into elbow or straight head to fit in different platform.Due to it’s compact design and low torque, the capsule slip ring mainly used in High definition video surveillance, Optical fiber sensing and other turntable, video monitoring system or Traffic system.
