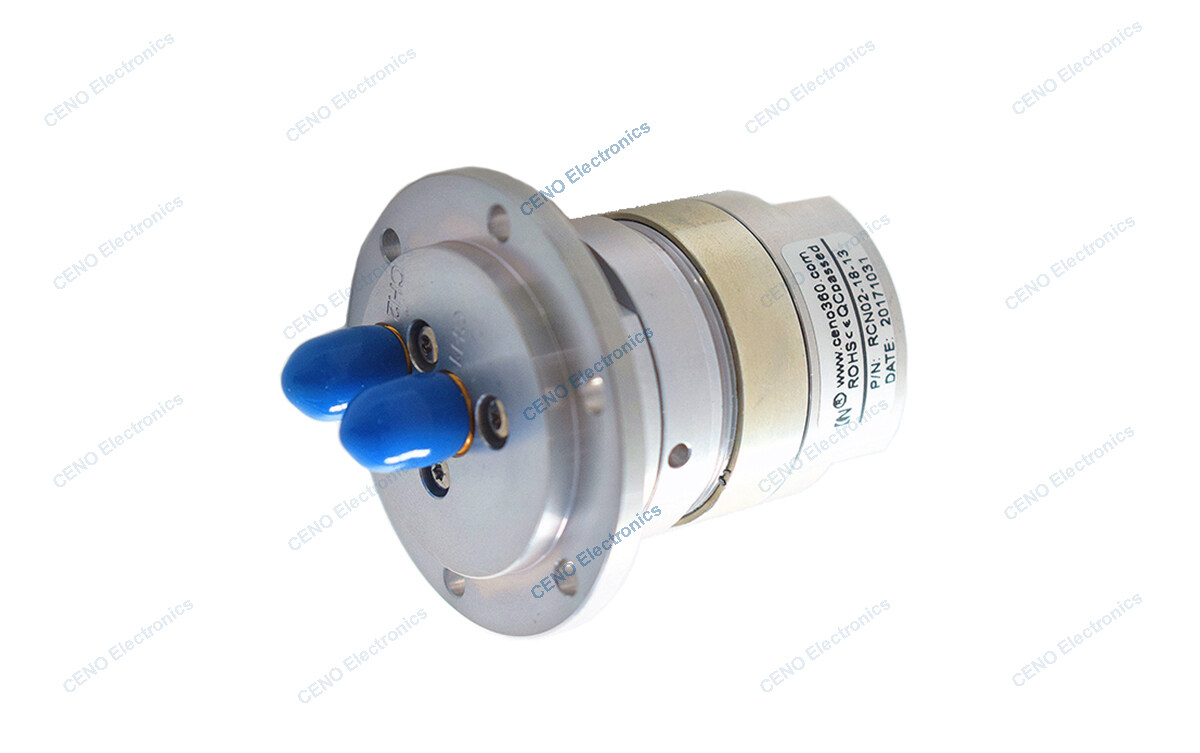

| RCN02-18-13B | Specification | |
| Channel 1 | Channel 2 | |
| Interface | SMA female | SMA female |
| Style | I type | I type |
| Frequency range | DC to 18 GHz | DC to 13 GHz |
| Insertion loss,max | 0.4dB@0-8GHz 1.0dB@8-18GHz | 1.0dB |
| Insertion loss,WOW,max | 0.06dB | 0.40dB |
| VSWR,max | 1.35@0-8GHz1.5@8-18GHz | 2.0 |
| Rotating speed,ma | 200rpm | |
| Peak power,max | 1000W | |
| Working temperature | -40℃~-+70℃ | |
| IP protection grade | IP60 | |
| Body material | Aluminum alloy |
Provide high-quality conductive slip ringsand professional solutions for manyindustries and domestic and foreign
customers
CENO Electronics.
