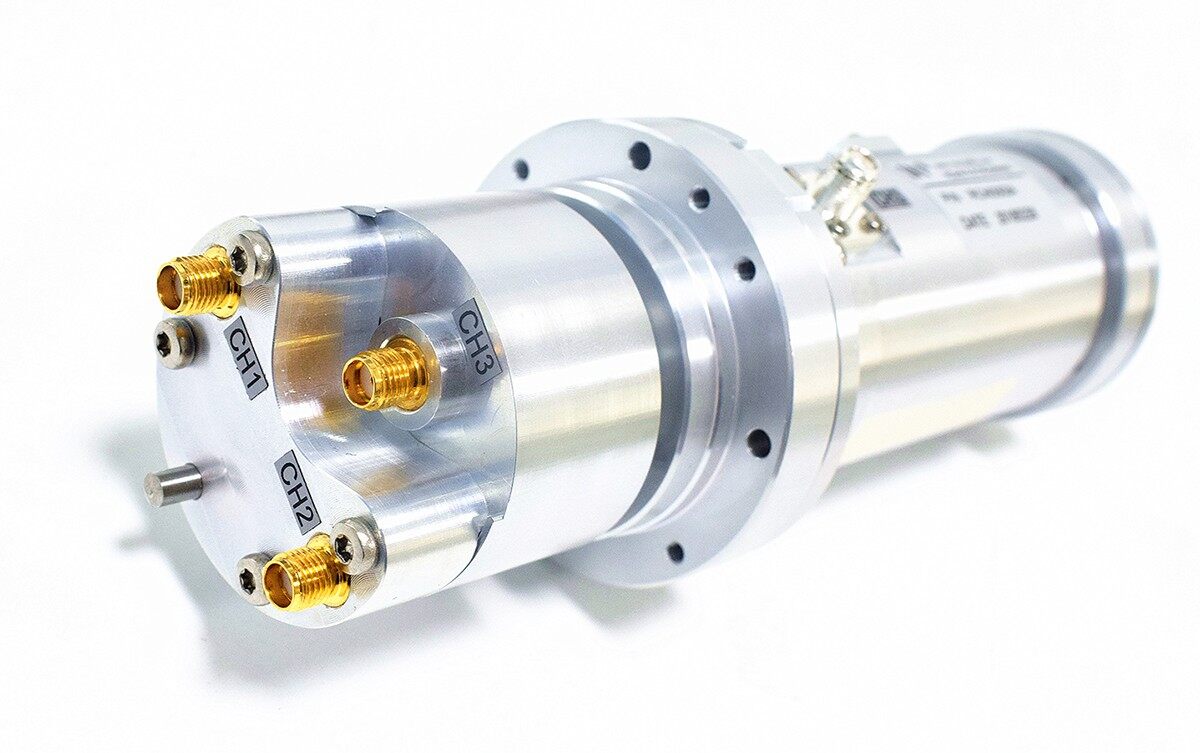

| RCN0303A | Specification | ||
| Channel 1 | Channel 2 | Channel 3 | |
| Connector | SMA-f(50Ω)/copper alloy /gold plate | SMA-f(50Ω)/copper alloy /gold plated | SMA-f(50Ω)/copper alloy /gold plated |
| Frequency range | 0 to 3GHz | 0 to 3GHz | 0 to 3GHz |
| Interface type | Style I | Style I | Style L |
| Peak Power, Max. | 1KW | 1KW | 1KW |
| Insertion loss,ma | 0.4 dB | 0.7 dB | 0.4 dB |
| Rotating speed,max | 60rpm | ||
| IP protection grad | IP50 EN6052 | ||
| weight | 0.7Kg |
Provide high-quality conductive slip ringsand professional solutions for manyindustries and domestic and foreign
customers
CENO Electronics.
