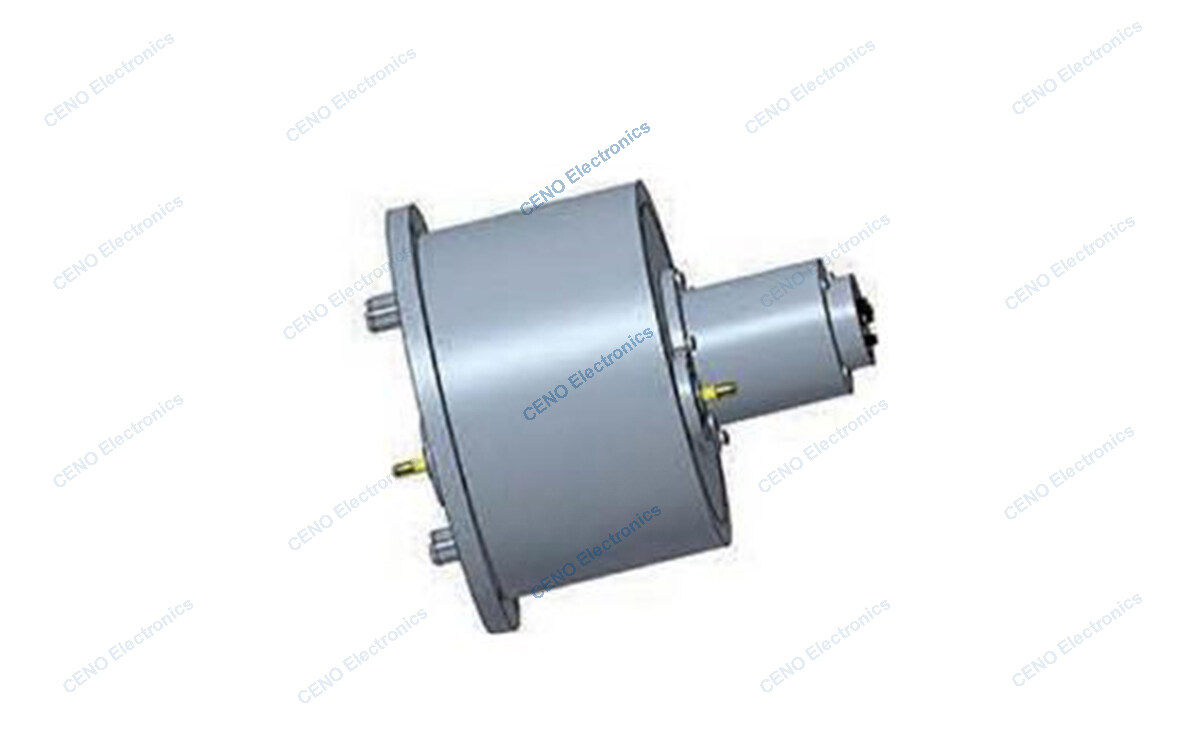

RCN05-0101-0402B

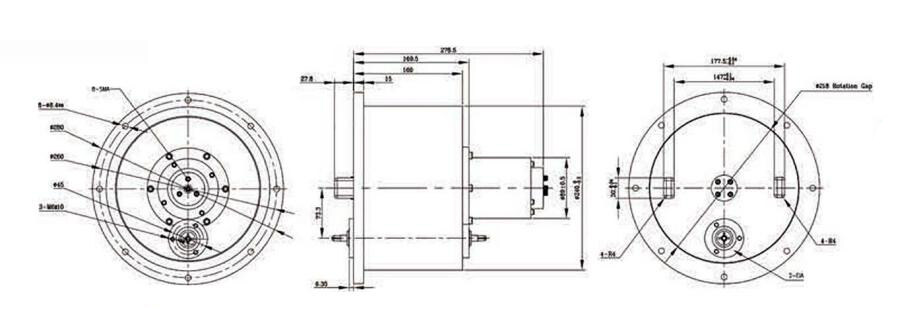

Description

Specification

RCN05-0101-0402B Specification

Channel Channel 1 Channel 2 Channel 3 Channel 4 Channel 5

Interface type EIA-F ( 50Ω) SMA-F (50Ω) SMA-F (50Ω) SMA-F (50Ω) SMA-F (50Ω)

Style I I I I I

Frequency 0.63-0.6GHz DC-2.5GHz DC-2.5GHz DC-2.5GHz DC-2.5GHz

Peak power, max 20KW 1KW 1KW 1KW 1KW

Average power, max 3.0KW 20W 20W 20W 150W

Voltage standing wave ratio, max 1.25 1.5 1.5 1.5 1.5

Voltage standing wave ratio fluctuation, max 0.1 0.3 0.3 0.3 0.3

Insert loss , max 0.3dB 0.8dB 0.8dB 0.8dB 0.8dB

Insert loss fluctuation,max 0.1dB 0.2dB 0.2dB 0.2dB 0.2dB

Isolation, max 60dB 60dB 60dB 60dB 60dB

Phase stably, max 2deg 5deg 5deg 5deg 5deg

Working speed, max 10 rpm

Working life, Mix 5 million rpm

Housing material Aluminium alloy

Surface treatment Conductive oxidation ( chromate conversion coating )

Weight 21kg

Ambient temperature range -40℃~+70℃

Storage temperature range -55℃~+85℃

Humidity, max 95%

IP grade IP 51
