Separate Slip Ring

• Current & Circuits: 4circuits*2A
• Rating Voltage: 240 VAC/DC
• Dielectric strength: ≥500VAC@50Hz
• Isolation resistance: ≥1000MΩ@100VDC
• Contact resistance: 1mΩ (50rpm)
• Contact material: Gold to Gold
• Housing material: Engineer plastic
• Working temperature: -20°C~+60°C
• Operating speed: 0~100rpm
• Lead wire size: AWG32# Silver coated Wire Teflon® UL
• Lead wire length: Standard 250mm
• Working life: 5×107 Rotation
• External diameter: Ø3.5mm

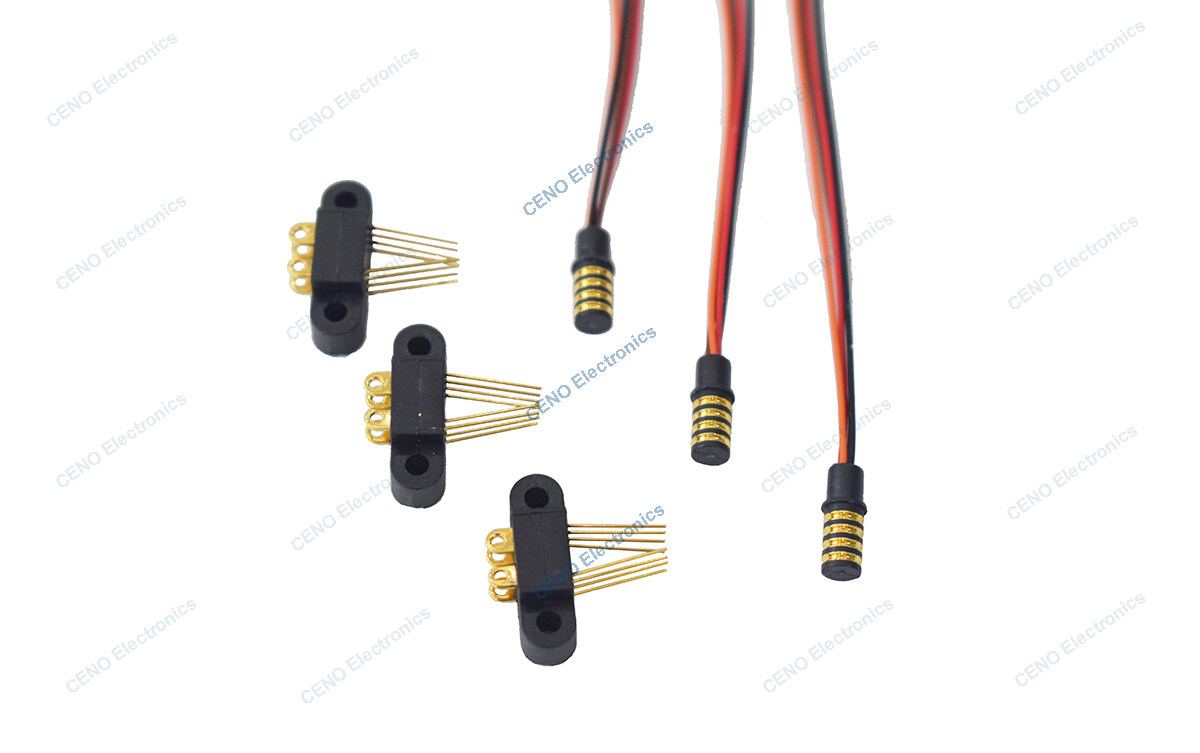

SCN04 is one of CENO SCN series two half separates product. the outer diameter of the split slip ring copper ring is 3.5mm, the design precision is extremely high, and the surface treatment adopts and Using domestic leading military technology, low contact resistance, long life, reliable operation, It is especially suitable for small rotating systems to transmit weak control signals. The electric parameters circuits, current, voltage and materials are optional as different applications. For more information please contact us.
